RIGOL Chapter 1 Quick Start
1-28 MSO8000 User Guide
you can tap to select "Trigger zone A", "Trigger zone B", "Histogram", "Horizontal
zoom in", "Vertical zoom in", or "Waveform zoom in". Drag a finger from lower right
to upper left across the screen to draw a rectangle on the screen, as shown in Figure
1-19 (b). Move your finger away from the screen, and then a menu is displayed on
the screen. At this time, you can tap to select "Trigger zone A", "Trigger zone B",
"Histogram", "Horizontal zoom out", "Vertical zoom out", or "Waveform zoom out".
(a) (b)

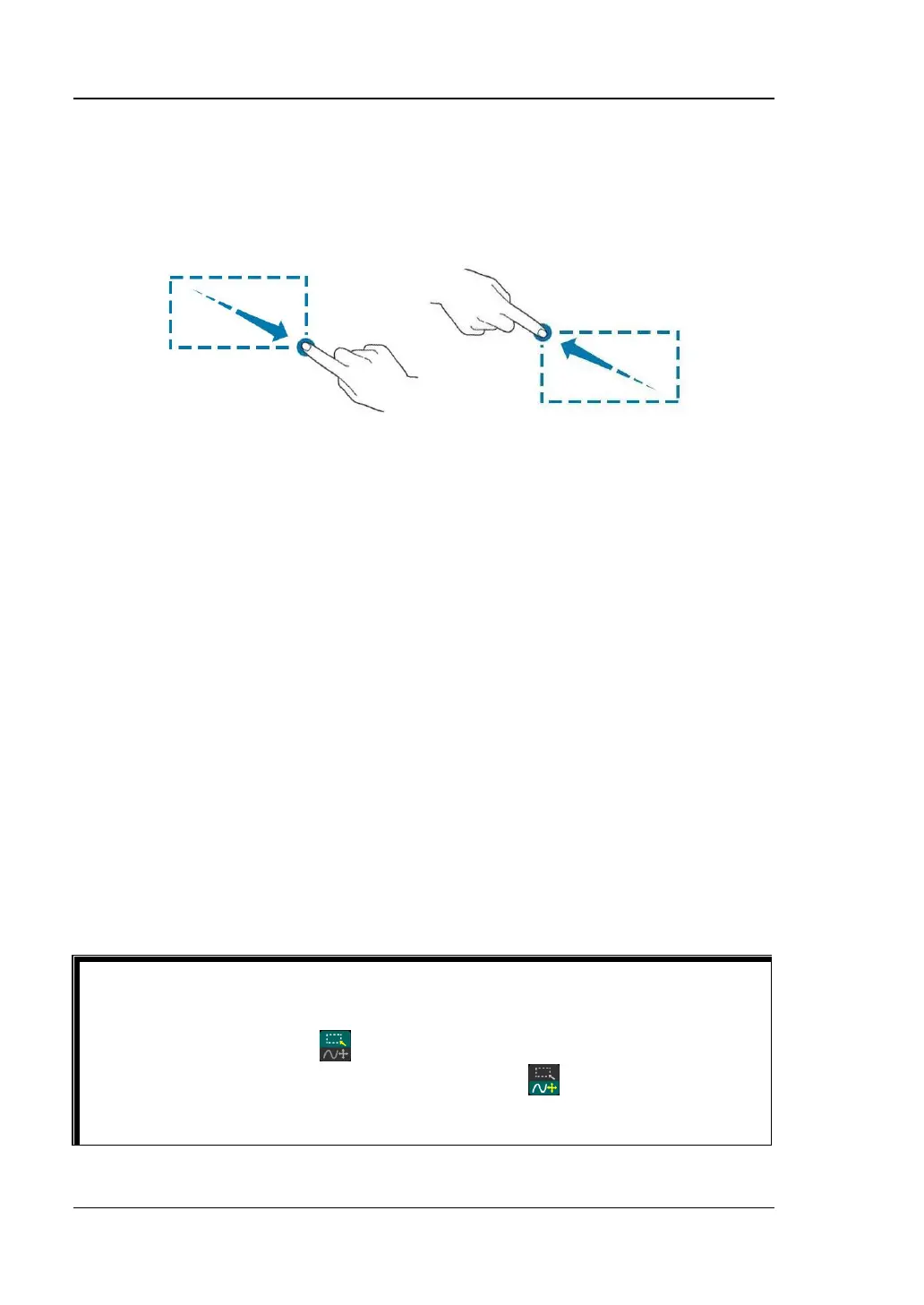

Figure 1-19 Rectangle Drawing Gesture
⚫ Select "Trigger zone A":
➢ Draw the region for Trigger zone A;
➢ Open Trigger zone A;
➢ Open the "Zone Trigger" menu.
⚫ Select "Trigger zone B":
➢ Draw the region for Trigger zone B;
➢ Open Trigger zone B;
➢ Open the "Zone Trigger" menu.
⚫ Select "Histogram":
➢ Draw the region for the histogram;
➢ Open the "Histogram" menu.
⚫ Select "Horizontal zoom in": expands the waveforms in the horizontal direction.
Select "Horizontal zoom out": compresses the waveforms in the horizontal
direction.
⚫ Select "Vertical zoom in": expands the waveforms in the vertical direction. Select
"Vertical zoom out": compresses the waveforms in the vertical direction.
⚫ Select "Waveform zoom in": expands the waveforms both in the horizontal and
vertical direction. Select "Waveform zoom out": compresses the waveforms both
in the horizontal and vertical direction.
Tip
Tap the "Draw rect" icon to switch between the rectangle drawing and waveform
operation modes.
Tap the "Draw rect" icon, if is displayed, it indicates that the rectangle
drawing mode is enabled. Tap the "Draw rect" icon, if is displayed, it indicates
that the waveform operation mode is enabled. By default, the waveform operation
mode is enabled.
