Frequency Response Test
Specification
Frequency Response
RSA5032
RSA5032N
RSA5065
RSA5065N
attenuation = 10 dB, relative to 50 MHz, 20℃ to 30℃
PA Off
100 kHz to 3.2 GHz
<0.5 dB, <0.3 dB (typical)
<0.5 dB, <0.3 dB (typical)
3.2 GHz to 6.5 GHz
<0.7 dB, <0.5 dB (typical)
attenuation = 0 dB, relative to 50 MHz, 20℃ to 30℃
PA on
100 kHz to 3.2 GHz
<0.7 dB, <0.3 dB (typical)
<0.7 dB, <0.3 dB (typical)
3.2 GHz to 6.5 GHz
<0.9 dB, <0.5 dB (typical)
Test Devices
1. Signal Generator × 1
2. Power Meter × 1
3. Power Sensor × 1
4. Power Meter Connecting Cable × 1
5. Dual-N Cable × 1
6. Dual-BNC Cable × 1

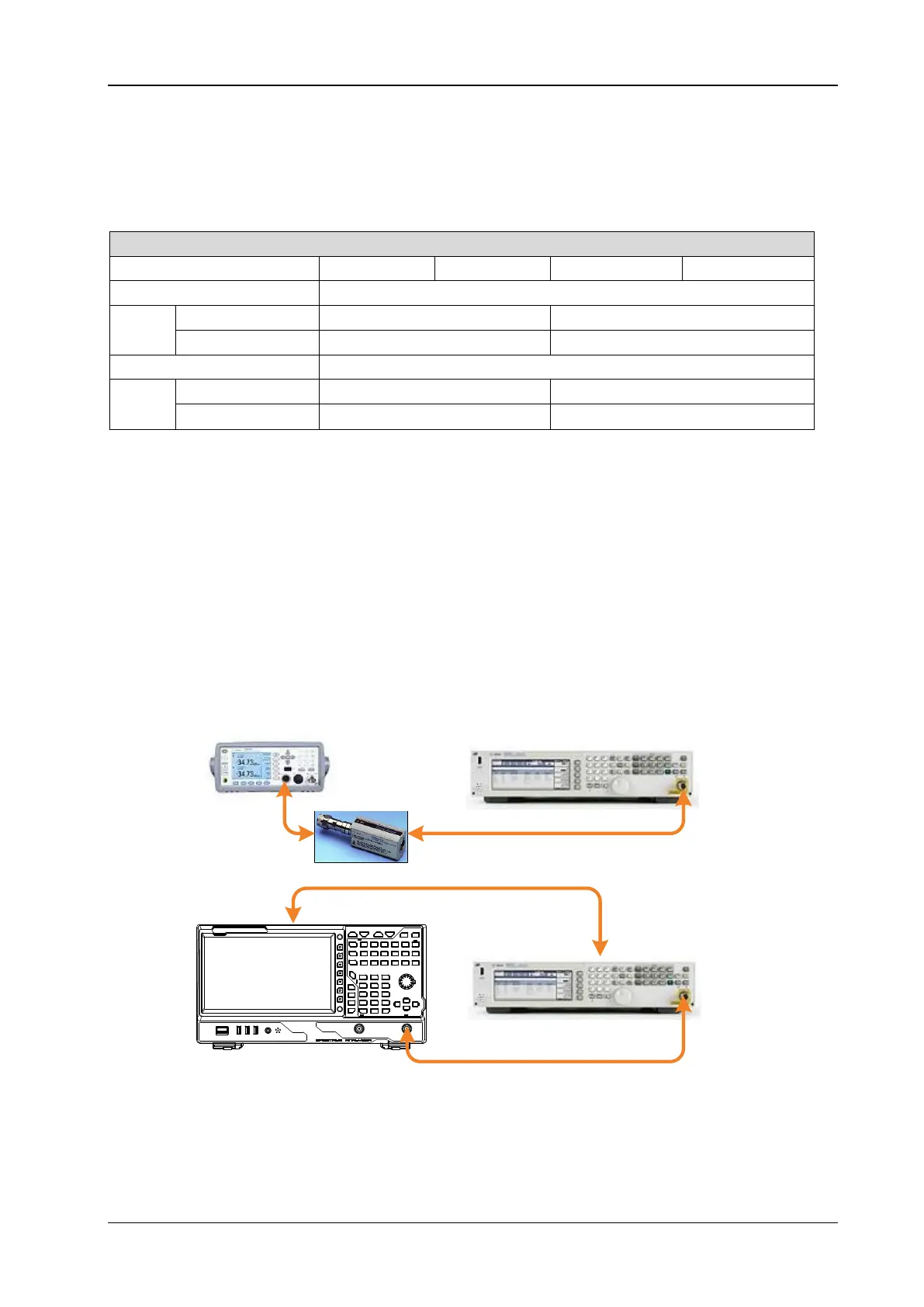

Test Connection Diagram
(a)
(b)
RSA5000
Dual-N Cable
Dual-BNC
Cable
RF IN
RF OUT
Dual-N Cable
RF OUT
Power Meter
Power Sensor
Power Meter
Connecting
Cable
10MHz OUT
10MHz IN
Signal Generator
Signal Generator
Figure 2-4 Frequency Response Test Connection Diagram
