Chapter 2 Performance Verification Test RIGOL
RSA5000 Performance Verification Guide
2-13
Second Harmonic Distortion Test
Specification
Second Harmonic Distortion
f
c
50 MHz, input signal level = -20 dBm, attenuation = 10 dB, preamp off.
Specification
+45 dBm
Test Devices
1. Signal Generator × 1
2. 300 MHz Low-pass Filter × 1
3. 1 GHz Low-pass Filter × 1
4. Dual-BNC Cable × 1
5. N-SMA Cable × 2

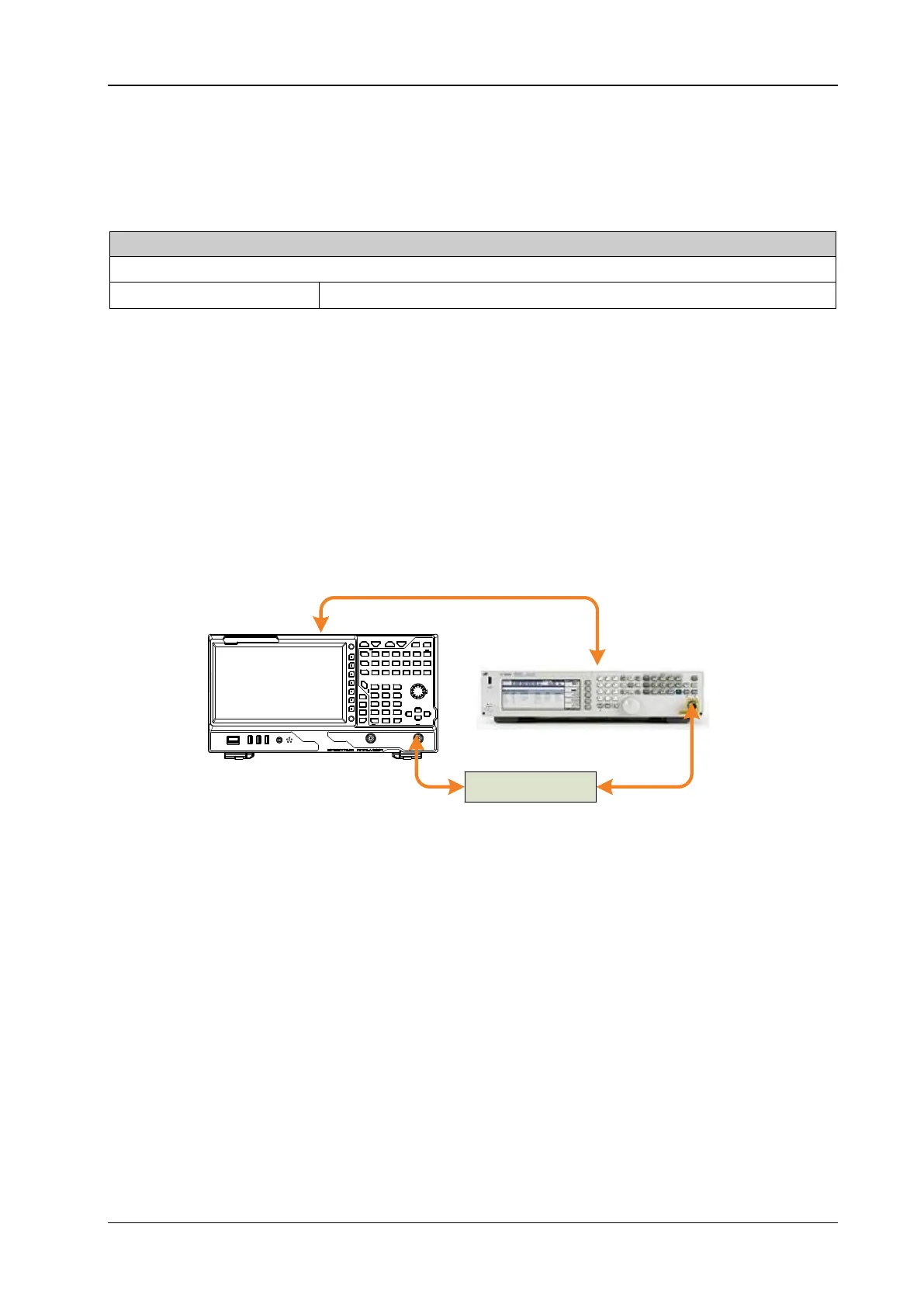

Test Connection Diagram
Low Pass Filter
RSA5000
N-SMA Cable
Dual-BNC Cable
RF IN
RF OUT
10MHz OUT
10MHz IN
Signal Generator
N-SMA Cable
Figure 2-5 Second Harmonic Distortion Test Connection Diagram
Test Procedures
1. Synchronize the signal generator and spectrum analyzer. Connect the output terminal of the
signal generator with the 300 MHz low-pass filter. Then connect the filter with the RF input
terminal of the spectrum analyzer.
2. Set the output frequency of the signal generator to 300 MHz; set the amplitude to -20 dBm.
3. Configure the spectrum analyzer:
a) Set the center frequency to 300 MHz.
b) Set the span to 10 kHz.
c) Set the maximum mixer level to -20 dBm.
d) Set the reference level to -10 dBm.
