ring Contact Sensor - Aligning Sensor and Magnet

Align the magnet and
the sensor

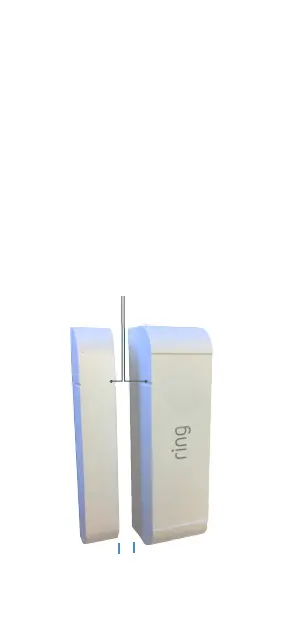

Place the magnet on the
trim near the sensor so that
the lines on the sensor and
magnet are parallel. The
magnet and sensor can be
a maximum of 1/2” apart.
Max Gap
1/2”
Alignment lines
