ring Stick Up Cam Plug-In Setup And Installation Guide

Mount your Cam.
Guide the grooves in the base onto the hooks
on the bracket. Slide Stick Up Cam down to
secure it to the wall.

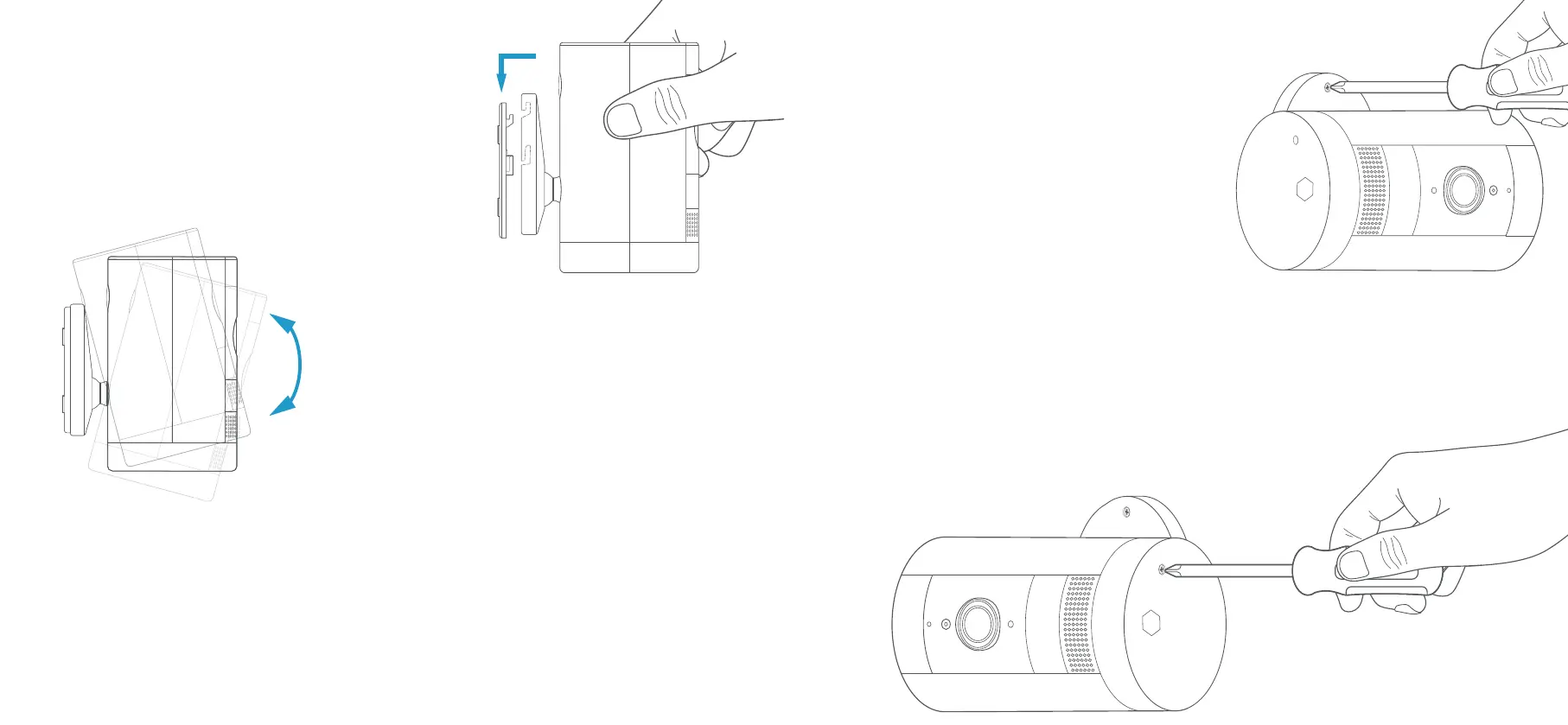

Install the security screws (optional).
Your Stick Up Cam comes with two optional security screw locations.
One secures the mounting bracket to the base, and the other secures the
battery compartment.
To access them after you’ve mounted your Stick Up Cam, rotate it to either side.
To install the base screw...
First, slide your Stick Up Cam o of the
mounting bracket.
Pop the rubber plug out of the base, then
place Stick Up Cam back on the bracket.
Secure with one of the provided screws.
To install the battery compartment screw...
Remove the battery compartment, pop out the rubber plug, then replace
the battery compartment on your Stick Up Cam.
Secure with one of the provided screws.
Check it out!
Now plug your Stick Up Cam back in, and
rotate it to your desired angle. Check out
the live video in the Ring app to make sure
you have the view you want.
1110

ring Stick Up Cam Plug-In Specifications

General

Type	IP security camera
Operating frequency	2400 MHz
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Wi-Fi	Yes
Ethernet LAN	-
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Built-in HDD	No
Form factor	Box
Mounting type	Desk/Wall
Product color	White
Minimum illumination	- lx
Number of sensors	1
Operating temperature (T-T)	-20 - 50 °C
Mobile operating systems supported	Android, iOS
Total megapixels	- MP
Maximum resolution	- pixels
Audio system	2-way
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	60 mm
Height	97 mm
