CONTROL PANEL OPERATING INFORMATION
INSTALLATION
Check room size and ventilation. Do not
oversize. Improper sizing may cause nuisance
lock outs.

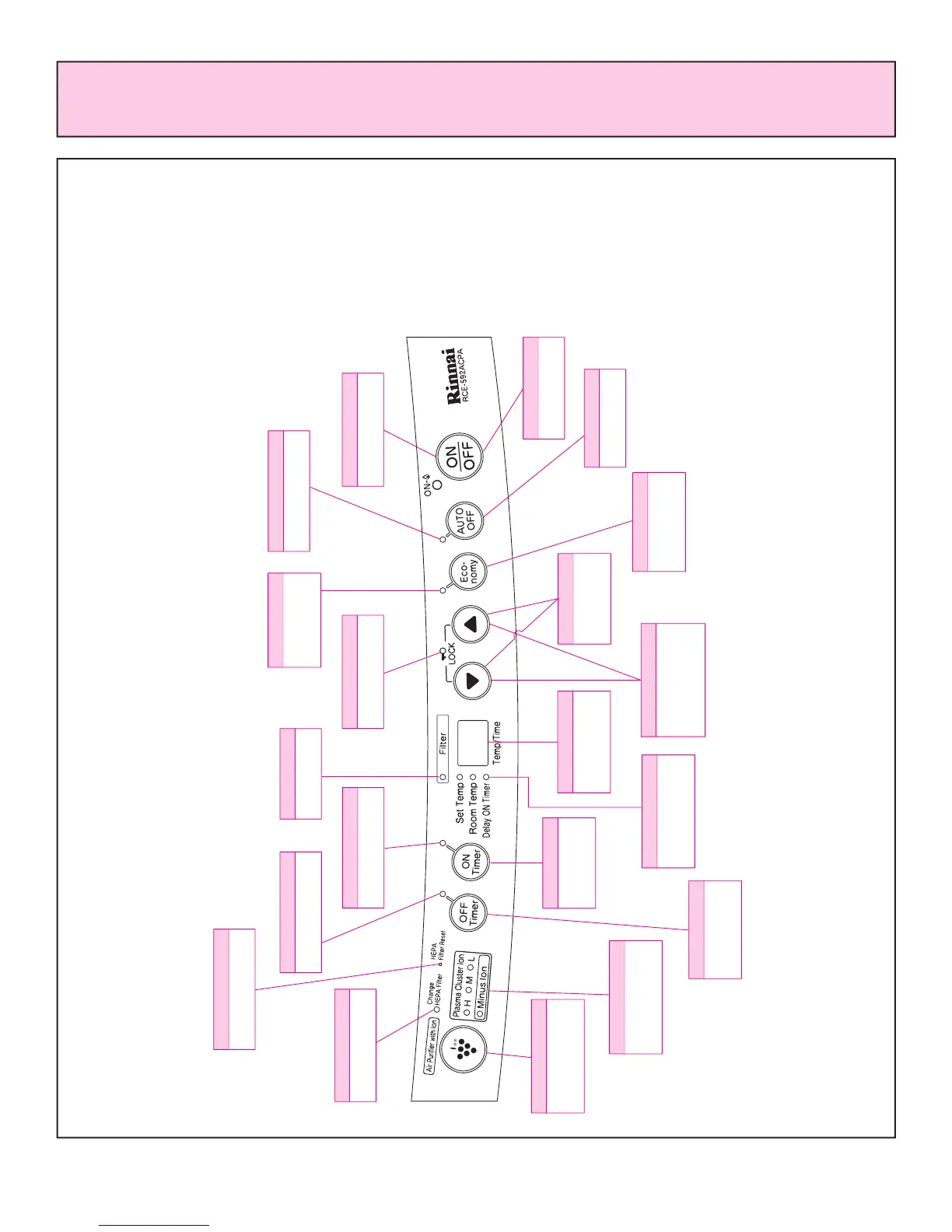

CONTROL PANEL LAYOUT
Make certain the heater is connected into both
the gas and the electric power.
OFF TIMER BUTTON
Selects operating
mode for delay OFF
Timer function.
ON TIMER BUTTON
Selects operating
mode for delay ON
Timer function.
TIME/TEMP DISPLAY
Shows either the
temperatures or coded
error messages.
FUNCTION LOCK
Lock all controls
when pressed.
(EXCEPT OFF)
ECONOMY INDICATOR
Indicates that the
Economy mode is in
operation.
AUTO-OFF BUTTON
Selects thermostat-off
function.
FILTER INDICATOR
Indicates that the
filter needs cleaning
INDICATORS
Indicate what information
is currently displayed on
the LED display
ION OPERATION INDICATOR
Indicates the ion operation
mode of the Plasmacluster
ion generator.
HEATER OPERATION BUTTON
Main switch for turning
ON/OFF
ION OPERATION BUTTON
Selects the ion operation
mode of the Plasmacluster
ion generator.
TIME/TEMP ADJUSTMENT
Increases or decreases the
temperature setting as well
as changing hours or
minutes.
FUNCTION LOCK INDICATOR
Indicates Function lock
is activated.
ON/OFF INDICATOR
Indicates that the
ON/OFF is activated.
ON TIMER INDICATOR
Indicates that the ON
Timer mode is in operation.
HEPA FILTER RESET BUTTON
Indicates that the
Change HEPA Filter reset.
OFF TIMER INDICATOR
Indicates that the OFF
Timer mode is in operation.
CHANGE HEPA FILTER
Indicates that the HEPA
filter needs replacing.
AUTO-OFF INDICATOR
Indicates the thermostat-off
function is activated.
ECONOMY BUTTON
Select operating
mode for ECONOMY
function.
