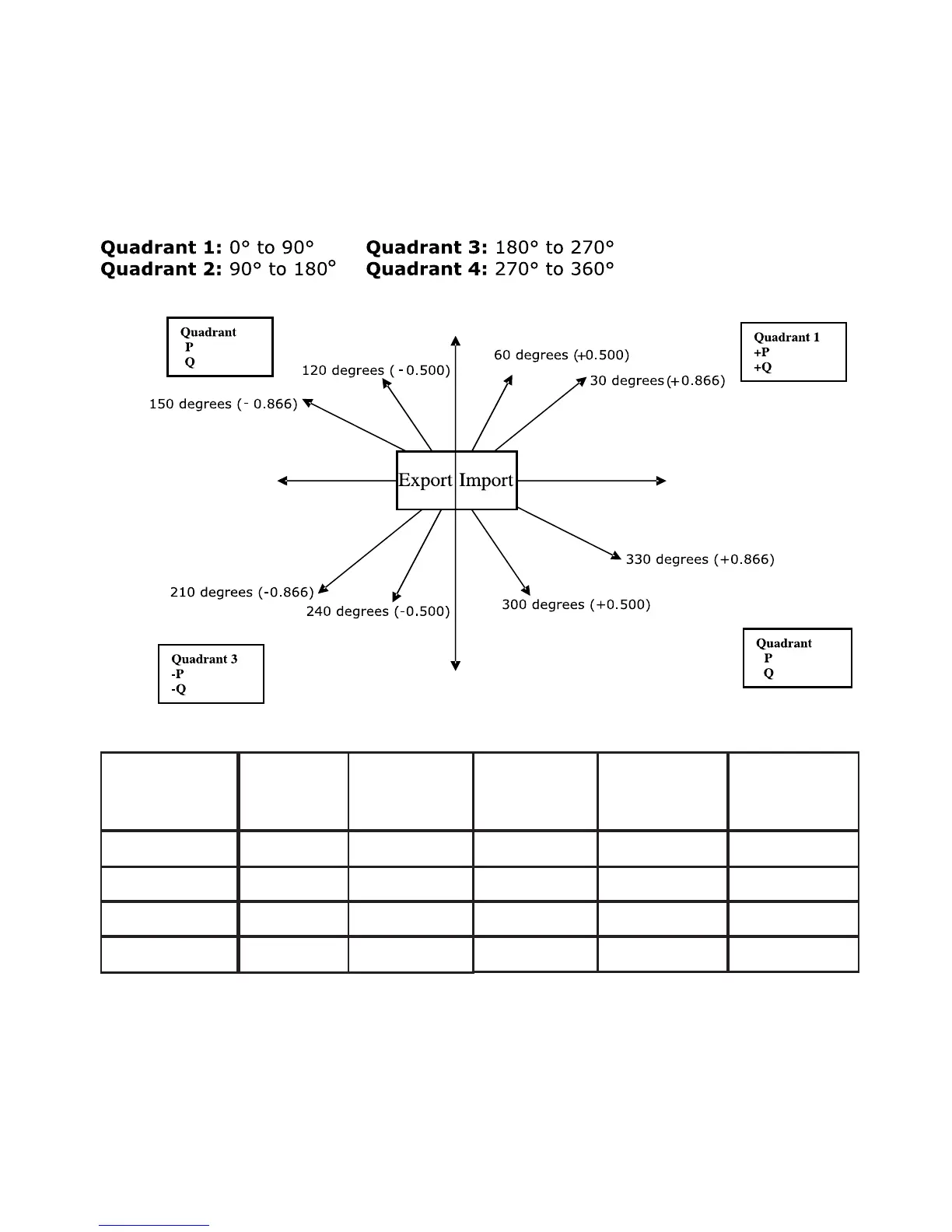

8. Phaser Diagram :
Inductive
Capacitive
Capacitive
Inductive
90 degrees (0.000)
0 degrees (+1.000)
180 degrees (-1.000)
270 degrees (0.000)
-
+
2
4
+
-
Connections Quadrant
Power ( P )
Sign of
Active
Power ( Q )
Sign of
Reactive
Factor ( PF )
Sign of
Power
Inductive /
Capacitive
Import
1
+ P
+ Q
+
L
Import
4
+ P
- Q
+
C
Export
2
- P
+ Q
-
C
Export
3
- P
- Q
-
L
