Inductive means Current lags Voltage
Capacitive means Current leads Voltage
9. Installation

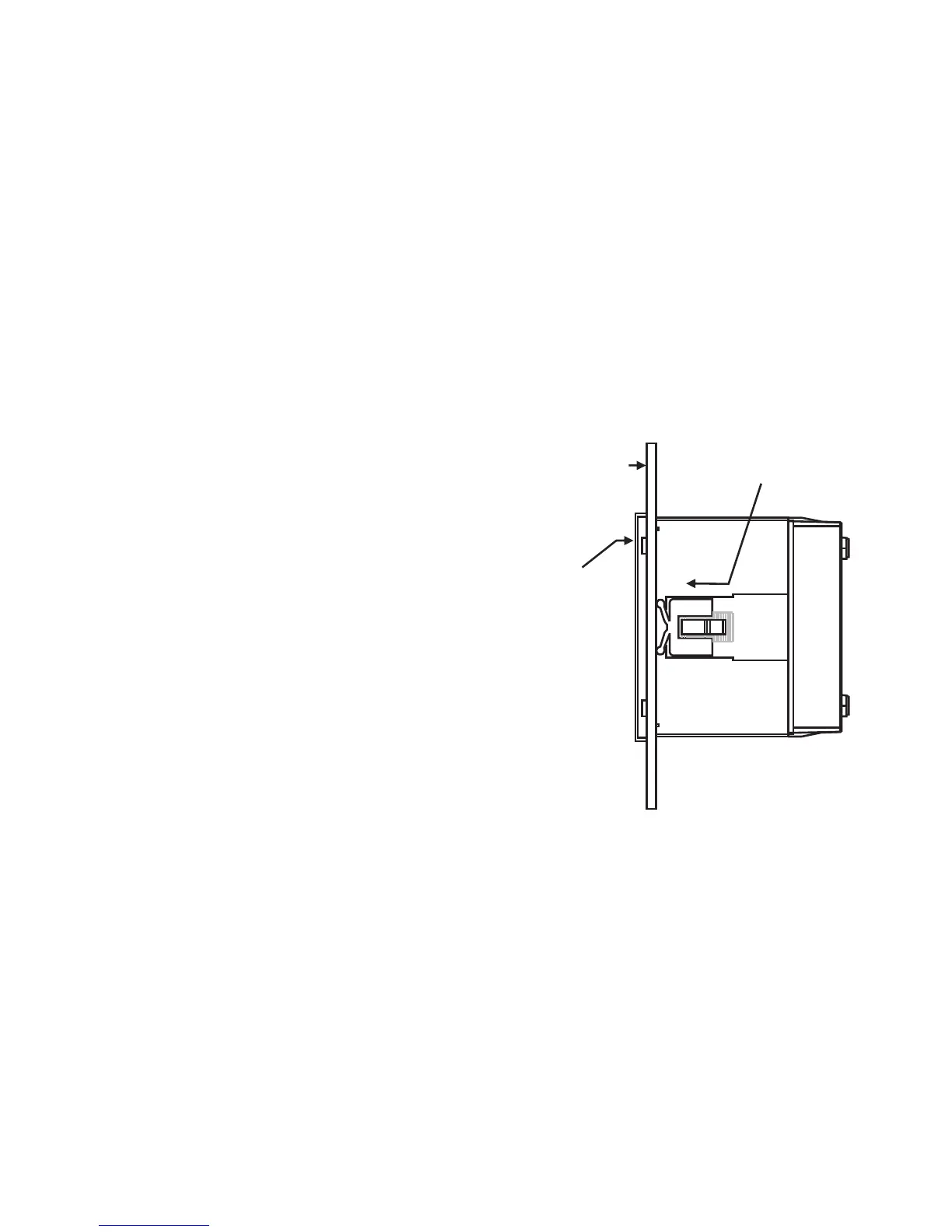

Mounting is by four side clamps, slide the side
clamps through side slot till side clamp gets rmly
locked in a groove (Refer g.) Consideration should
be given to the space required behind the
instrument to allow for bends in the connection cables.
SLIDE IN THIS DIRECTION
AND LOCK
PANEL
Meter
When the instrument displays Active power ( P )with “ + ” ( positive sign ) ,
the connection is “ Import ” .
When the instrument displays Active power ( P )with “ - ” ( negative sign ) ,
the connection is “ Export ” .
As the front of the enclosure conforms to IP54 it is protected from water spray from all directions,
additional protection to the panel may be obtained by the use of an optional panel gasket.
The terminals at the rear of the product should be protected from liquids.
The instrument should be mounted in a reasonably stable ambient
temperature and where the operating temperature is within the range
0
-10 to 55 C . Vibration should be kept to a minimum and the product should
not be mounted where it will be subjected to excessive direct sunlight.
45
