RZ series TECHNICAL BULLETIN
ISSUE NO. RZT-016
Issued By Overseas Technical Sec., Riso Kagaku Corp.
Countermeasure:

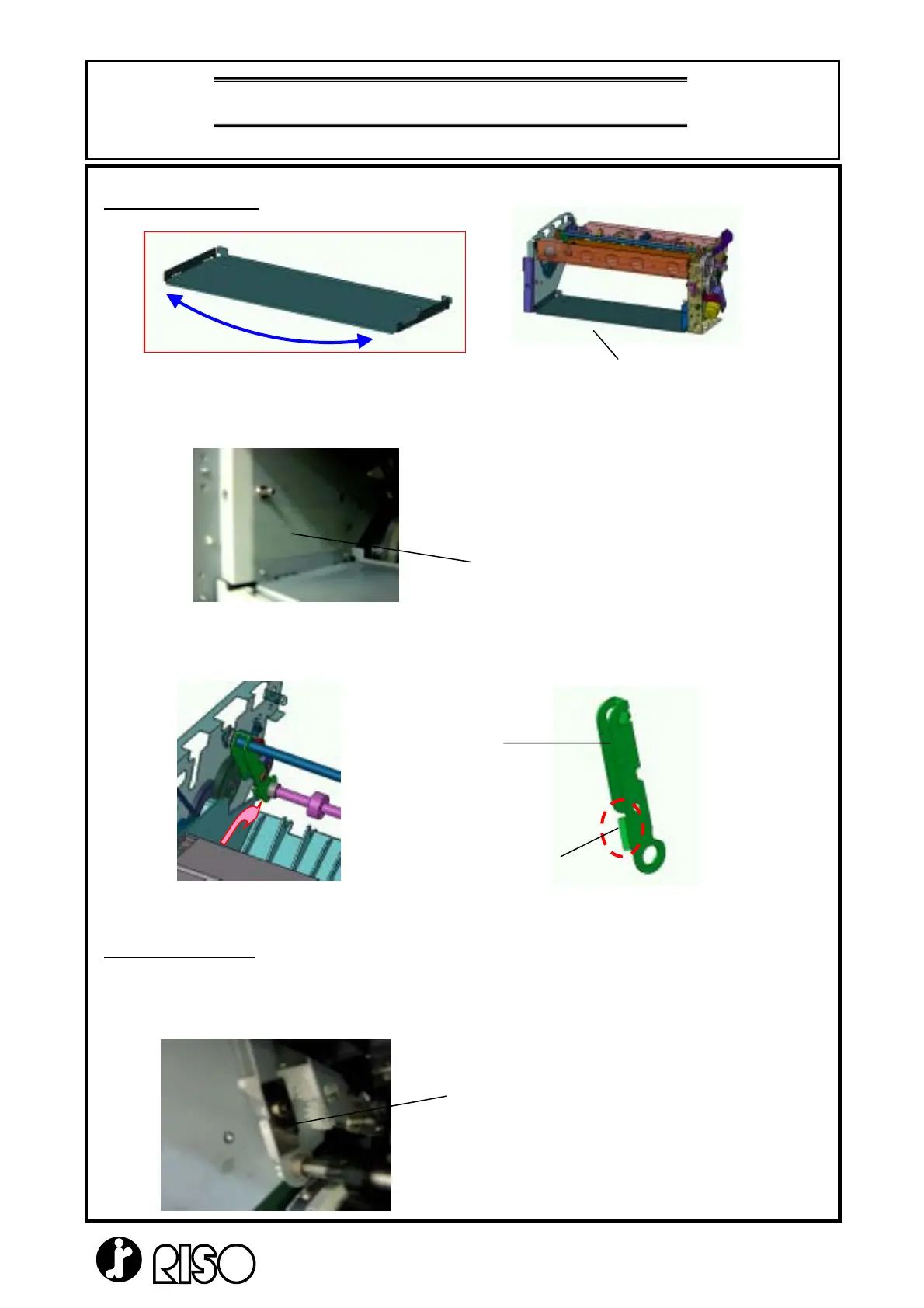

1. Stay B; M-Rmv. to be made flatter
2. Slide Guide sheet is added on the side flame of master disposal flame.
3. Modified Holding Plate; M.-Rmv.
Guide the master disposal box to the unit smoothly by additional guide.
Application Tips:
Holding Guide plate F/R are registered as service spare parts for the machines in the field.
Instead of replacing the Holding Plate; M.-Rmv., these guide plates are able to add on the
present type of the Holding plates by securing screw.
Stay B; M-Rmv.
To be flat
Slide Guide sheet
Side face of Master disposal box stays inside of the Holding plate.
Holding plate
Additional guide
Holding Guide Plate
