CAUTION: Install the Control Box in a well ventilated place protected against rain and
sunlight.
3.Insert the cable of the second gate opener and alarm lamp cables into the control box
through middle strain relief. Then repeat step 2.
4. Insert other cables into the control box through rightmost strain relief. Then repeat step
NOTE: Only motor cables (1.5m length) are provided. Other cables are subject to site
installation requirement and not provided.
CAUTION: Make sure the cable outlet hole in the Control Box is always down during
installation so as to drain off the water.
Connection of the Power Supply
WARNING: NEVER connect the gate opener to the power outlet before all the installations have been
done.

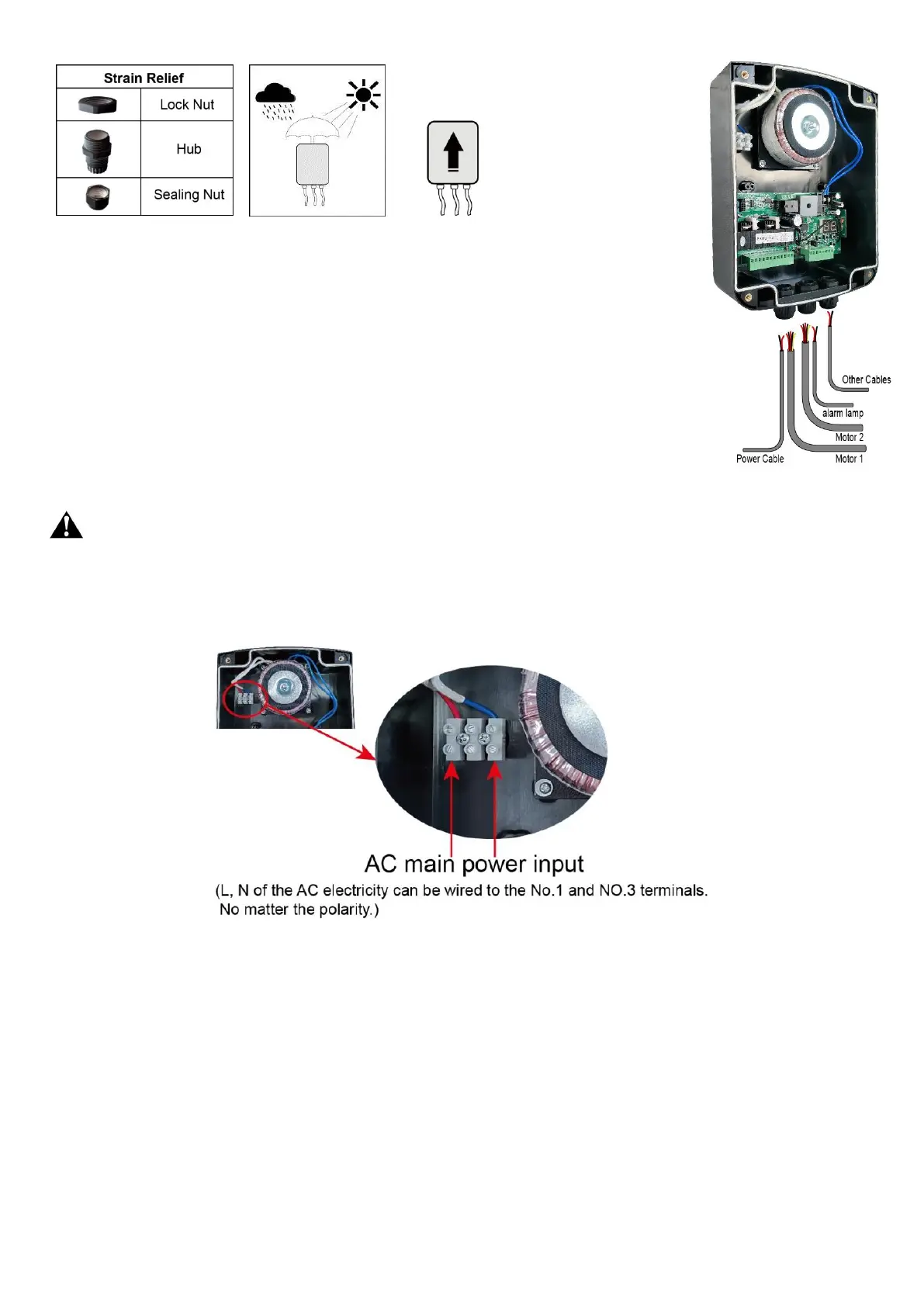

The live line and the neutral line should be connected to the power input terminals as the below photo. No matter
the polarity. The wire (not provided) size should be at least 0.75mm2 (18AWG) which is intended to connect the
power supply.
To Next Page
