Install the Gate Opener on the Gate

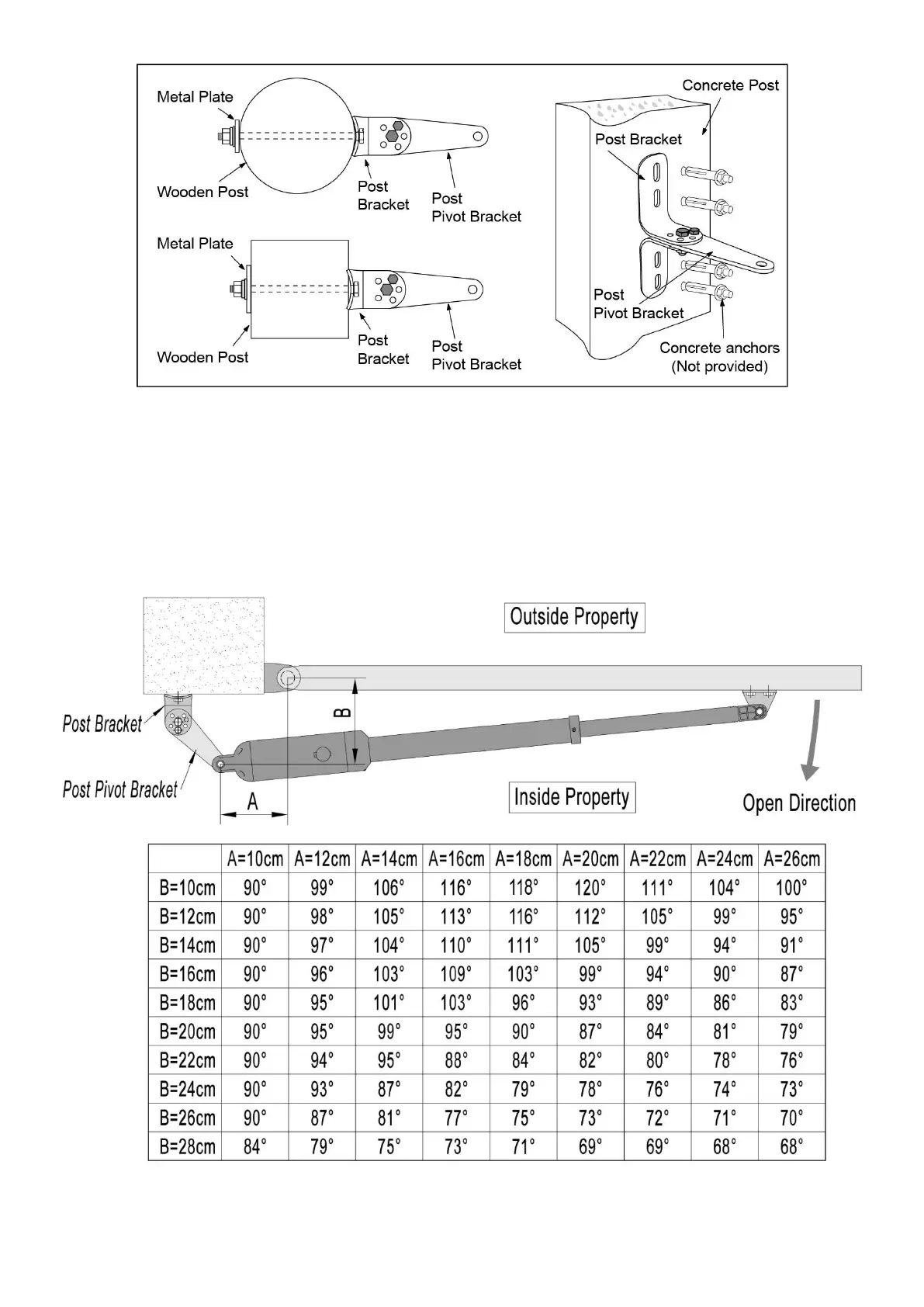

The position of Post Bracket is very important. The following illustrations and tables are required to determine the
proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for a given
A and B. For example, if A is 16cm and B is 14cm, the maximum opening angle of the gate is 110°
Pull-to-Open Installation — Gate in Closed position (Moving-Rod is extended)
