Adjusting the Limit Switch

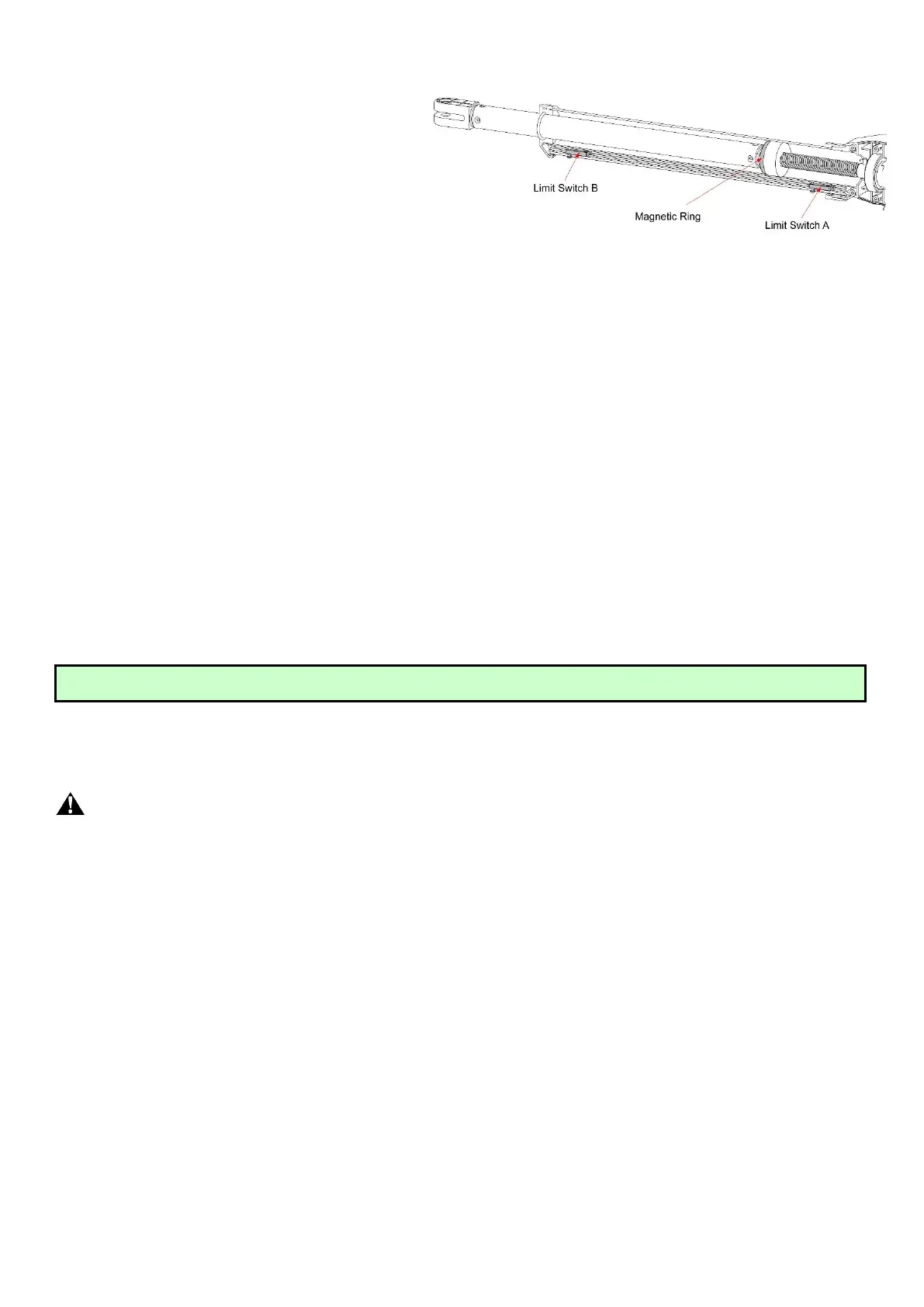

The position of Limit Switch A was fixed in factory,
do not adjust it again.
Plug on the power to running gate opener, use a
screwdriver to loose the screw of Limit Switch B,
slide Limit Switch B to the desired closed position
and fix it.
Limit setting for Gate 1 is finished now.
NOTE: Always place the magnetic ring between the Limit Switch A and B.
How to Operate
The user may operate the opener once all adjustment setting is finished.
With the gate in its closed position, press and release the remote control, the gate will move to the programmed
opening position and stop.
With the gate in its opened position, press and release the remote control, the gate will move to the programmed
closing position and stop.
While the gate is moving, press and release the remote control, the gate will stop moving immediately. The next
command from the remote will reverse the gate direction and the gate will stop at its programmed
opening/closing position.
The gate will stop in case of obstruction during opening. The command from the remote control will reverse the
gate direction and the gate will stop at its programmed closing position.
The gate will reverse in case of obstruction or stall force during closing, and it will move to the programmed
opening position.
Maintenance
Warning: Disconnect power before servicing.
1. Using a clean, dry cloth, wipe the gate opener shaft, and then apply a silicone spray to reduce its friction. In
cold climates where temperatures reach 1°C (30°F) or less, spray silicone on the actuator every 4~6 weeks to
prevent freeze up.
2. Regularly check gate hinges to make sure gate is swinging smoothly and freely. Grease hinges if needed.
3. Check your installation periodically, as hardware and posts will shift. Brackets may need to be adjusted or
hardware may need to be tightened.
4. Maintain the area around your gate. Keep the areas free of objects that can prevent the gate swinging freely.
NOTES:
1. Inspection and service should always be performed anytime a malfunction is observed or suspected.
2. It is suggested that while at the site voltage readings be taken at the operator. Using a Digital Voltmeter, verify
that the incoming voltage to the opener it is within ten percent of the opener’s rating.
3. Refer to Page 21 for instructions on how to check gate force and sensitivity adjustments.
