WARNING: Activate the opener only when gate is in full view, free of obstruction and properly adjusted. No
one should enter or leave gate area while gate is in motion. Do not allow children to operate push button or
remote. Do not allow children to play near the door.
Your swing gate opener receiver and remote control transmitter are set to a matching code. If you purchase
additional remote controls, the gate opener must be programmed to accept the new remote code.
First insert the LOOP DETECTOR BOARD into the CONTROL BOARD, and then connect the LOOP DETECTOR
to the control board. Detailed instruction please refers to the manual instruction of LOOP DETECTOR separated.
Exit Wand (optional)
Please refers to the manual instruction of EXIT WAND separated.
Electric Lock (optional)
The electric lock should be wired to the “LOCK” terminal.
External Receiver (optional)
The BROWN wire of the external receiver should be connected into the “19” terminal.
The BLACK wire of the external receiver should be connected into the “20” terminal.
The RED wire of the external receiver should be connected into the “9” terminal.
Wired Keypad (24VDC) (optional)
The RED wire of the wired keypad should be connected into the “9” terminal.
The BLACK wire of the wired keypad should be connected into the “14” terminal.
The WHITE wire of the wired keypad should be connected into the “19” terminal.
The BLUE wire of the wired keypad should be connected into the “20” terminal.
Solar Panel (optional)
Please refer to the manual instruction of solar panel and controller (LM118) separated.

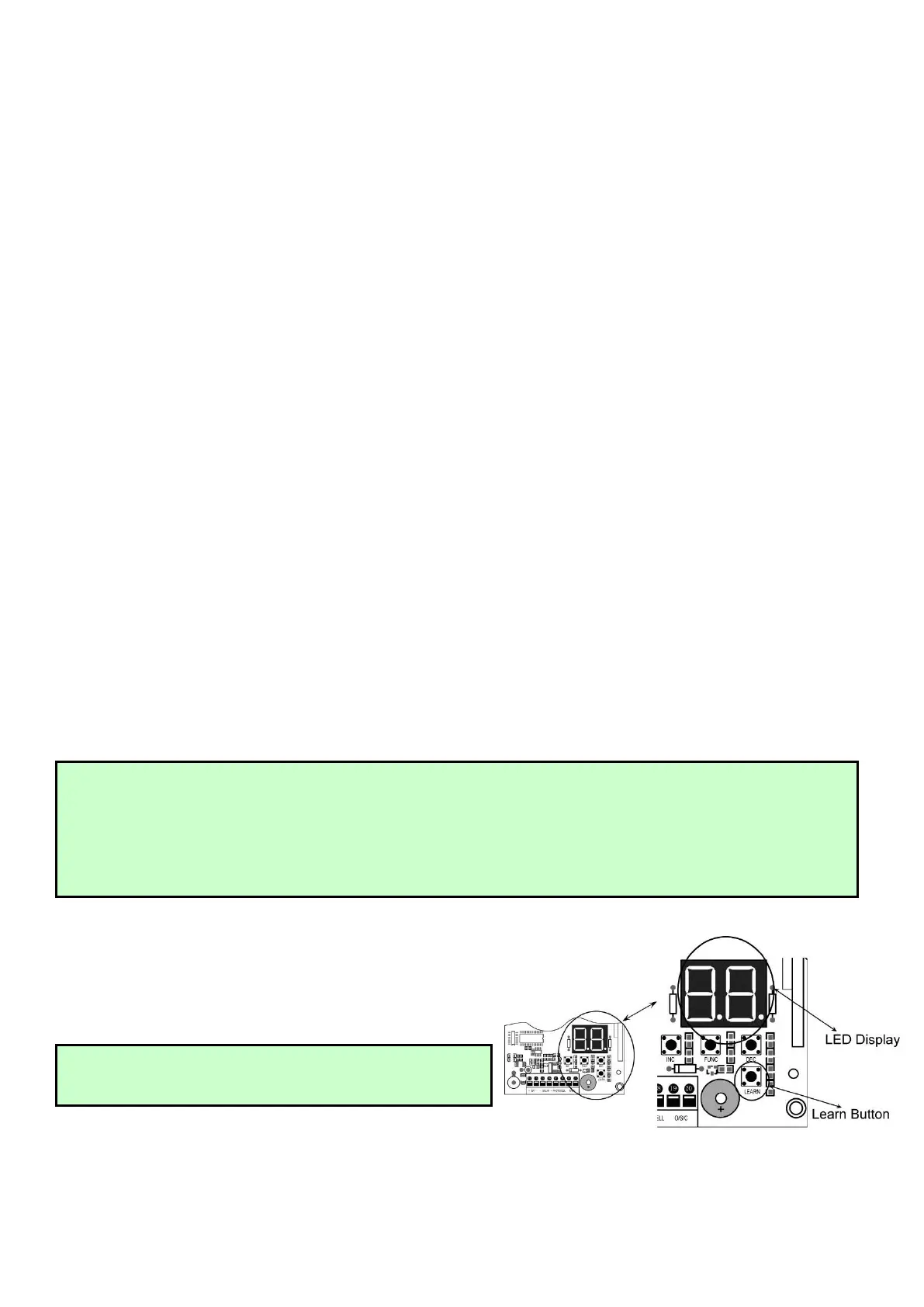

How to learn or erase the Remote
Learn the remote
Press and release the learn button, the LED will display “Ln”, then press the key in the remote twice in 2 seconds,
the LED will flash “Ln” for 4 seconds then back to “- -”. Now the remote has been learnt successfully.
Erase all the remote codes
Press and hold the learn button until the LED display “dL”,
release the button and the LED will be back to “- -”. Now all
remote codes have been erased..
