Rittal Liquid Cooling Package 21
5 Assembly and siting
5
The condenser may be installed either horizontally or
vertically using the supports included with the supply of
the device.

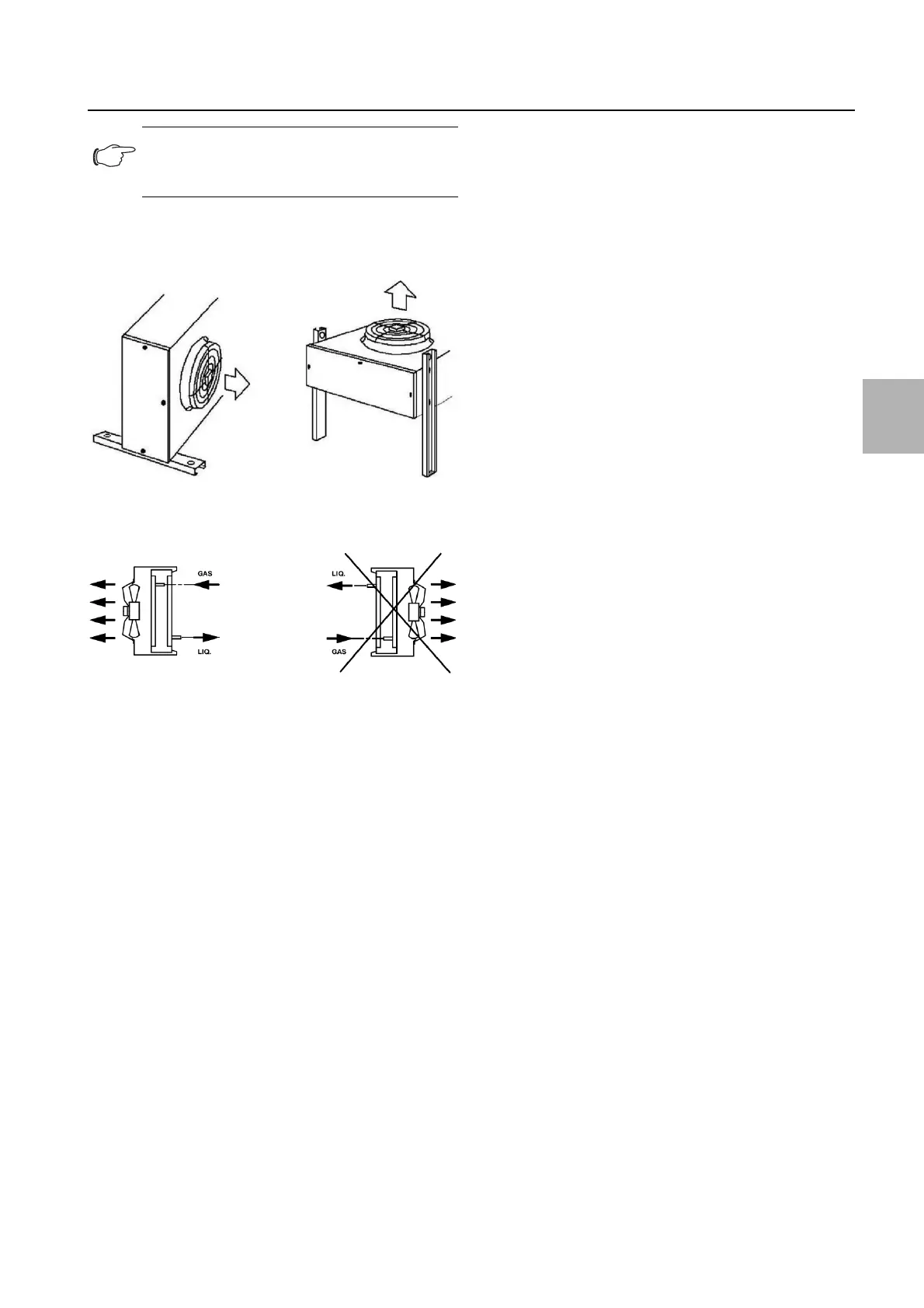

Fig. 21: Horizontal or vertical mounting
In the case of vertical mounting (with a horizontal air-
flow), the hot gas line must be laid above the liquid line.
Fig. 22: Laying the hot gas and liquid lines
Note:
Opening "A" must be at least as large as the
front of the condenser.
