16.3 Overview drawing

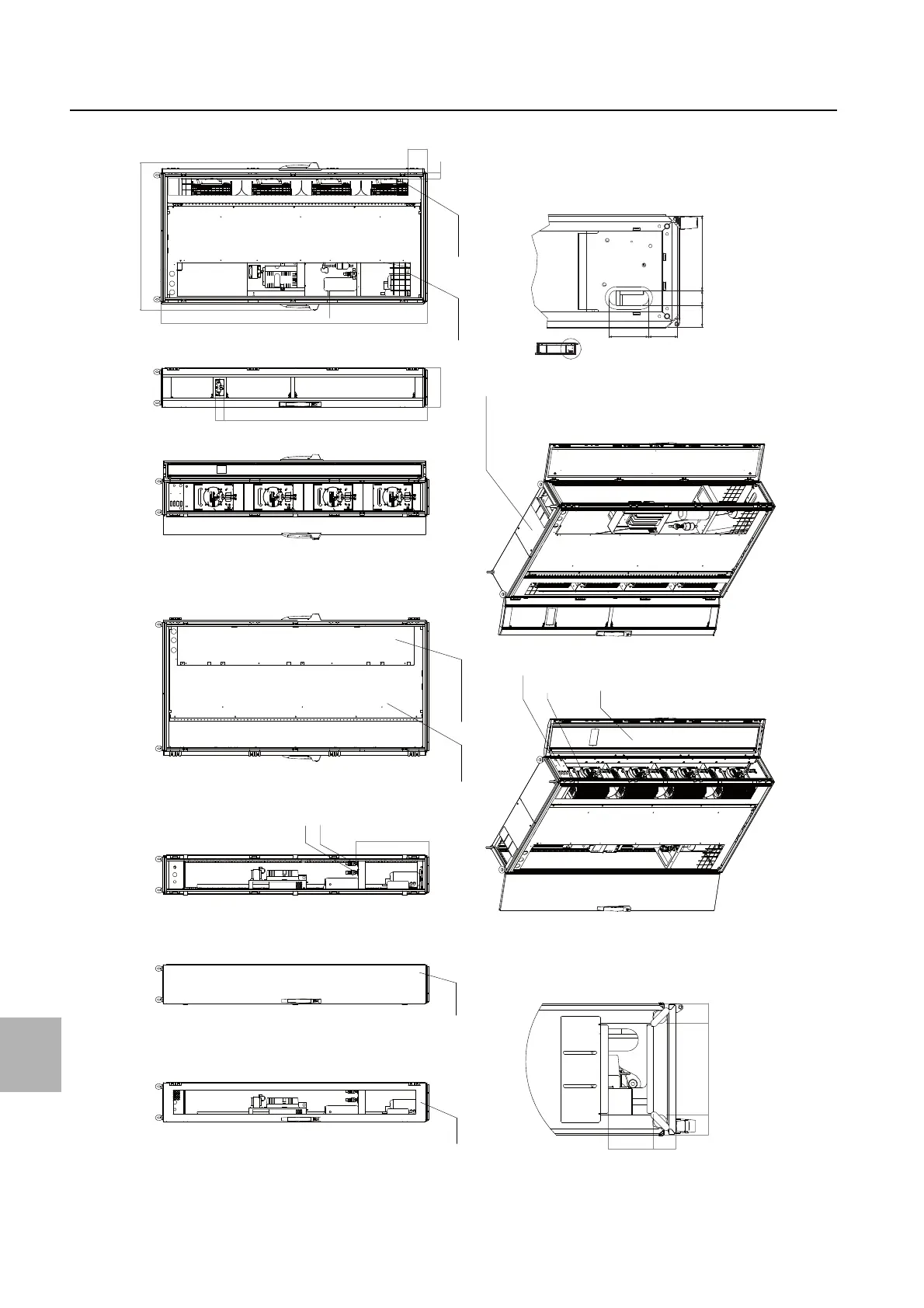

Fig. 70: Overview drawing of the LCP DX (depth 1000 mm)
Inlet Ø12
Outlet Ø12
146
44
2005
58,5
1529
297
67
551
Rear view Inline
Rear view Rack
Rear view without door
Side view
Front view
Rear door Inline
Rear door Rack
Side panel, right
Cover plate for
perforated area, rear
Punched area
244x1760
Punched area
126x1803
View from above (Scale 1:3)
Electrical box
Fan
Front door
Roof plate for optional pipe entry from top
View from below (Scale 1:2)
100,5
51,25
44,75
207,5
44,75
1108,99
38,5
56
(195,5)
76
103,5
