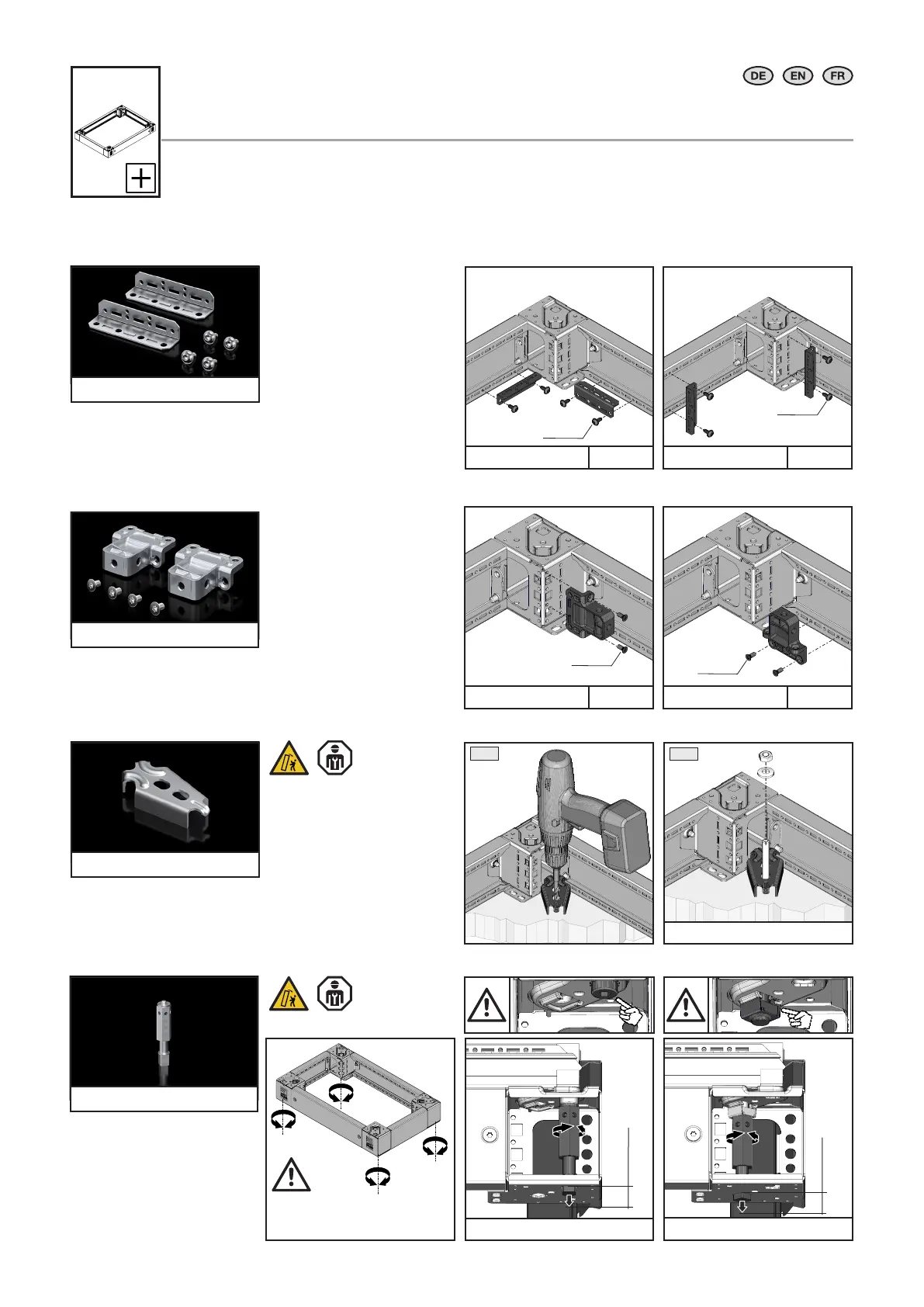

15Sockel-System VX/Base/plinth system VX/Socles VX
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
4.9 Zubehör
4.9 Accessories
4.9 Accessoires
F
max
= 4 x 2500N
max. 15 mm
1
2
M
= 10 Nm -0/+2
M
= 5 Nm -1/+0 M
= 5 Nm -1/+0
8619.470
8660.100
8660.120 / 8660.121
M
= 5 Nm -0/+1
M
= 5 Nm -0/+1
8660.400
5,5x13
5,5x13
TX25 TX25
TX30
TX30
5,5x13
5,5x13
F
max
= 4 x 2500N
max. 15 mm
Nivellierung gleichmäßig an allen vier Eckstücken
Leveling evenly on all four corner pieces
Nivellement uniforme sur les quatre pièces d‘angle
