Rittal VX Series User Manual

8 Sockel-System VX/Base/plinth system VX/Socles VX
TX30
TX30

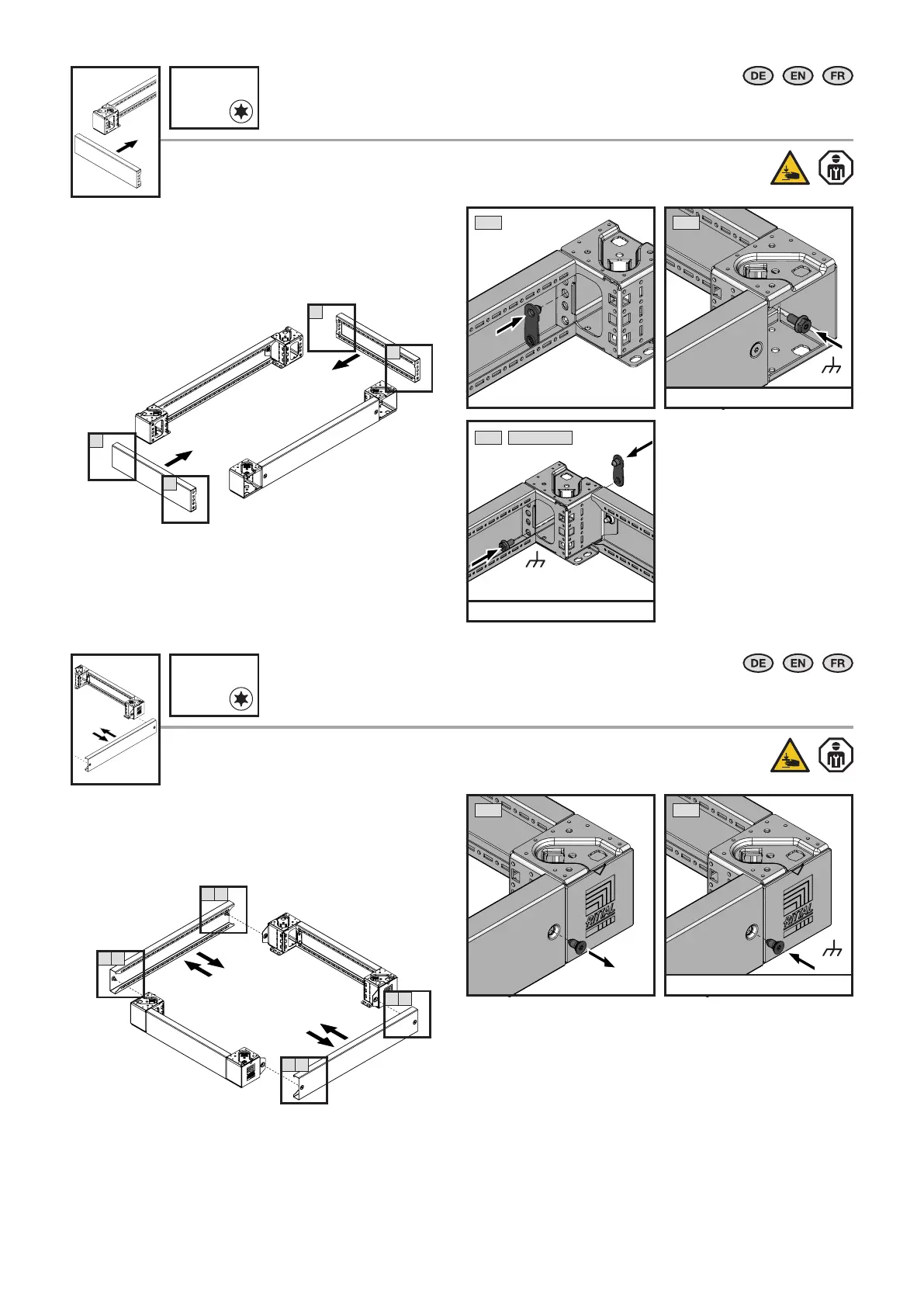

4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
1.1
1
4.2 Montage Seitenblenden
4.2 Mounting the side trim panels
4.2 Montage des plaques de socle latérales
4.3 Demontage und Montage Front-/Rückblenden
4.3 Removing and mounting the front/rear trim panels
4.3 Démontage et montage des plaques de socle avant/arrière
1 2
1 2
1 2
1 2
1
1
1
1
M = 12Nm -2/+0
1.2
M = 12Nm -2/+0
2
M = 12Nm -2/+0
1 Alternative

Rittal VX Series Specifications

General

Protection Class	IP55
Protection Category NEMA	NEMA 12
Finish	Powder-coated
Color	RAL 7035
Base/plinth	Optional
Approvals	UL, CSA
Door Options	Single door, Double door
Material	Steel
Width Options	600mm, 800mm, 1000mm, 1200mm
Height Options	2000mm, 2200mm
Depth Options	500mm, 600mm, 800mm
Mounting	Wall-mounted
