Dimensions
Models A B C ø
L 90 248 mm (9,76”) 118 mm (4,64”) 664 mm (26,14”) 95 mm (3,74”)
LT 90 248 mm (9,76”) 118 mm (4,64”) 664 mm (26,14”) 95 mm (3,74”)
S 80 248 mm (9,76”) 118 mm (4,64”) 664 mm (26,14”) 95 mm (3,74”)
S 90 248 mm (9,76”) 118 mm (4,64”) 664 mm (26,14”) 95 mm (3,74”)
ST 90 248 mm (9,76”) 118 mm (4,64”) 664 mm (26,14”) 95 mm (3,74”)
Table 2 - Dimensions for the connection of the external air intake.
WARNING! For the correct working of the device verify that the passage of
comburent air is not obstructed or, in case of connection with external air intake,
that the air aspiration grill is not obstructed.

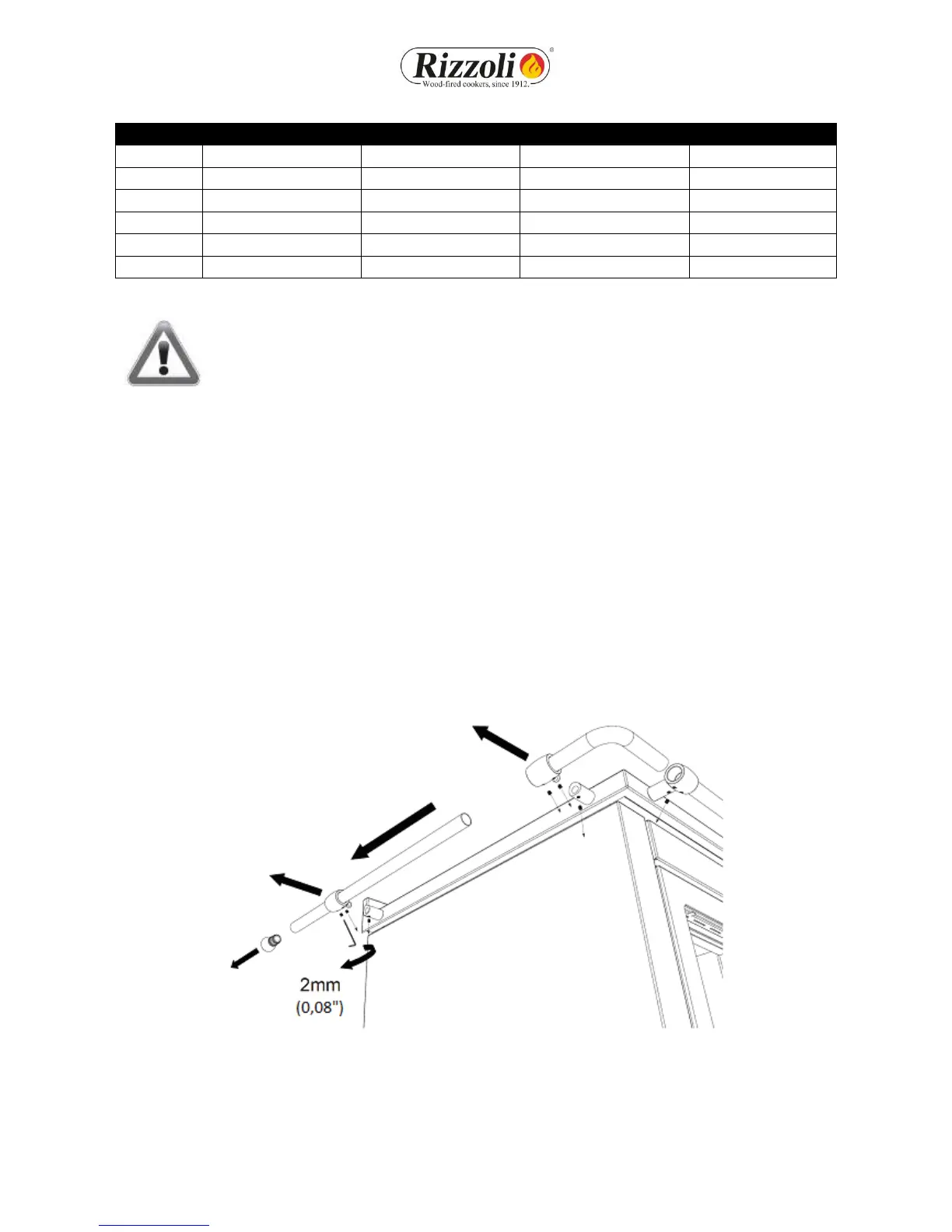

2.11 HANDRAIL PREDISPOSITION
L-S cookers and LT-ST thermal cookers are endowed with handrail on three sides (front, left side,
right side). In some situations it may be necessary to remove the handrail from one or more sides.
To make this operation, you need a star screwdriver and the hex key with the screws given
together with the device. First, you must remove the final part, which is just inserted by pressure.
Then you have to release the hex head screws under the carrying of the handrail where necessary.
Now you can extract the handrail bar from the carryings, then unthread the pommels of the
carryings and the bend of the handrail. Now you must insert the final part where was inserted the
bend before, then remove the carryings with the star screwdriver, replace the fixing screws with
the screws given as endowment and finally close again the hex head screws released before.
Picture 12 - Modification of the handrail
