RJM Mini Amp Gizmo User Manual

Amplifier Connector Pinout

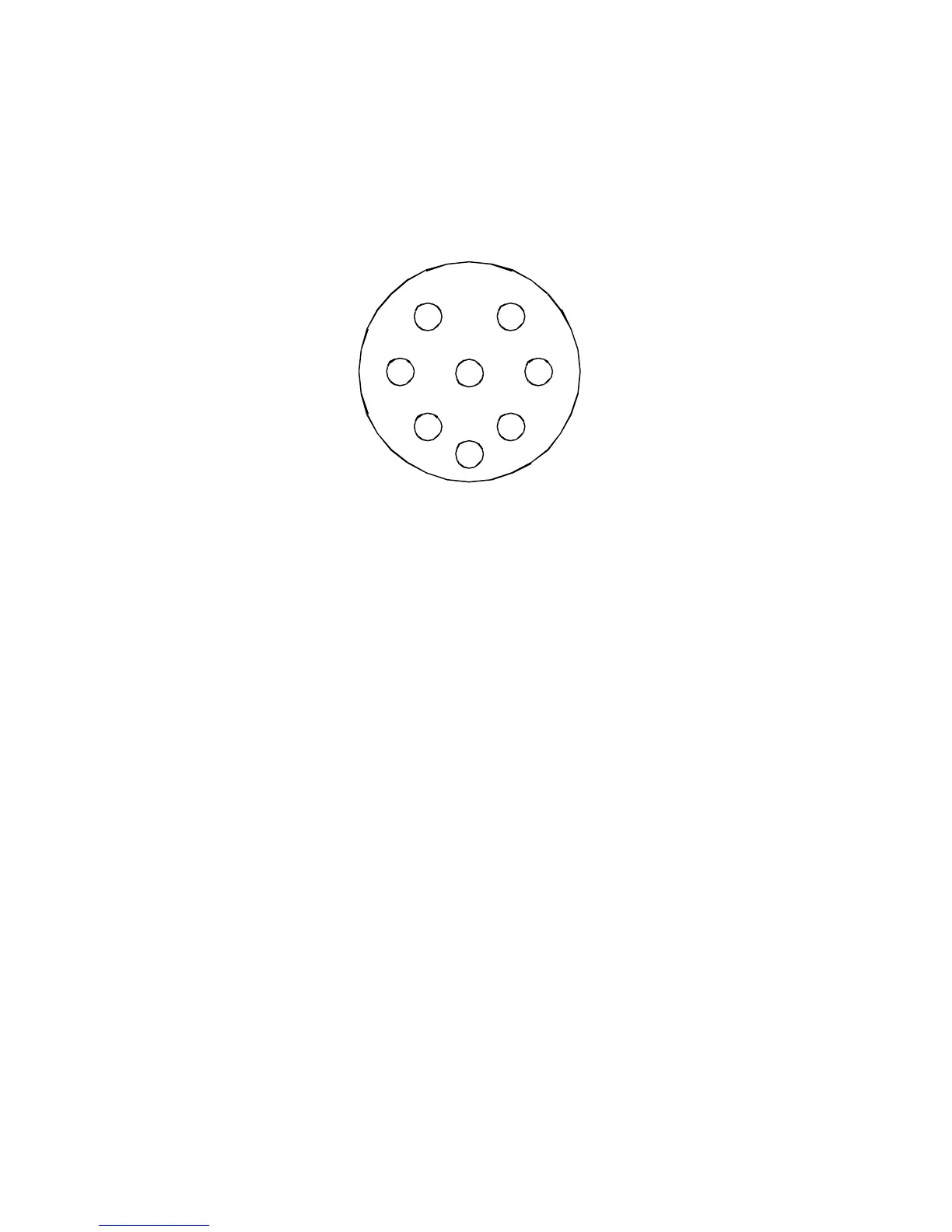

The Mini Amp Gizmo amplifier connector is a female DIN-8 jack.
When a switch is activated on the Mini Amp Gizmo, the
corresponding pin is shorted to the connector’s ground (shield).
Activating Switch 1 shorts pin 1 (as numbered above) to the
connector’s ground. Activating Switch 2 shorts pin 2, and so on.
RJM Music produces a wide range of cables to allow the Mini Amp
Gizmo to control various amplifier models. Please contact your RJM
Music dealer or the RJM Music web site to find the correct cable for
your amp.
13
2
45
67
8
