Roadmaster 9300 - Page 3

PART #9300
18
1
11
7
8
9
10
6
12
15
13
14
2
5

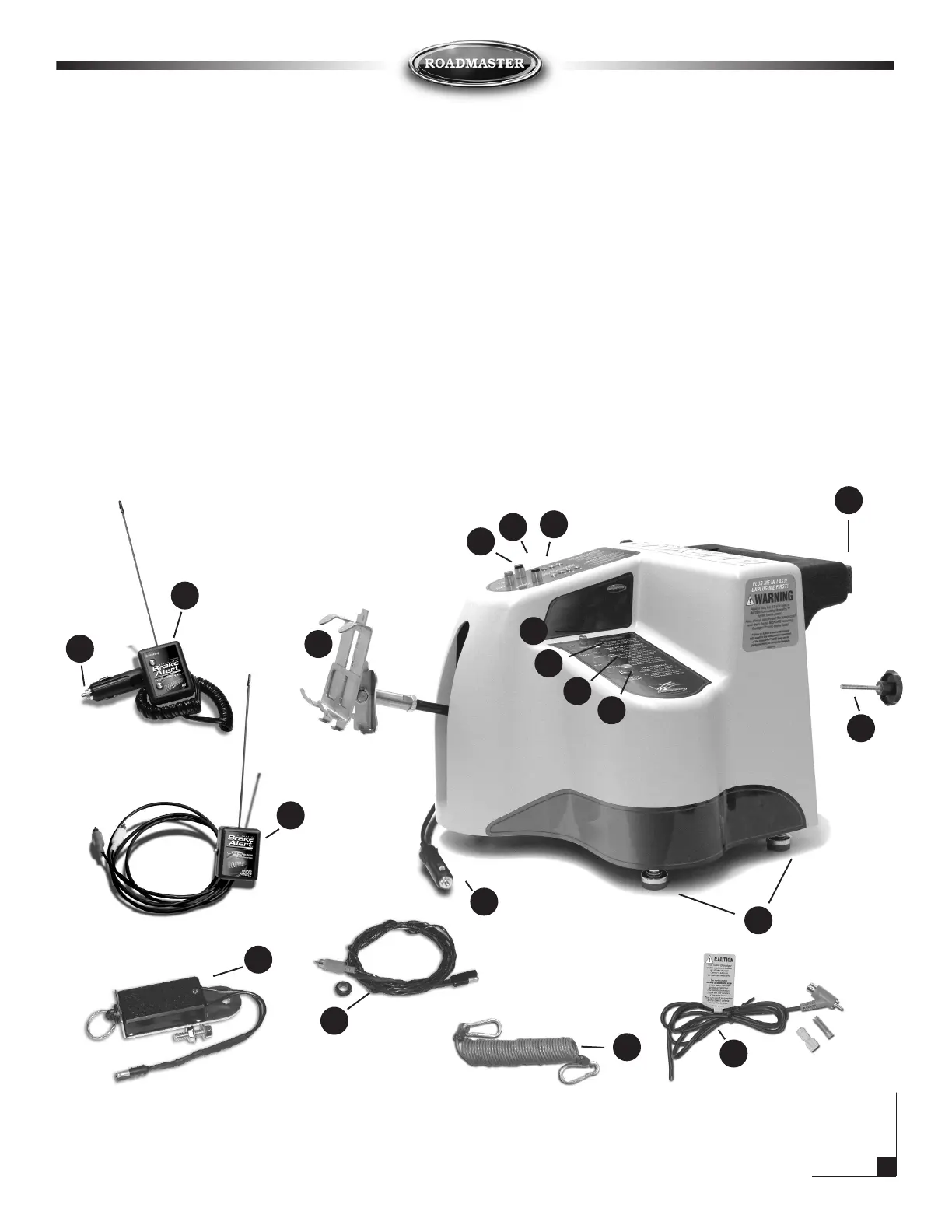

Part Number Description
1 #650997 Brake pedal clamp assembly
2 Test button
3 Max Brake Pressure button
4 Brake Sensitivity button
5 #650996 Adjustable seat pad
6 #450952 Adjustment knob
7 #300075-03 Red RCA socket
8 #300075-10 White RCA socket
9 #300075-07 Blue BrakeAway jack
10 #450098 Air relief
Part Number Description
11 #450105 Adjustable feet & lock nut
12 #300104-00 20 amp fuse (unthread end)
13 #650990 BrakeAlert Receiver
14 #300104-03 10 amp fuse (unthread end)
15 #650995 BrakeAlert Transmitter
16 #650898 Breakaway switch
17 #650899 Brakeaway wiring harness
18 #8602 Brakeaway cable
19 #9333 Brake Pedal Monitor Kit
3
4
}
Assembly
#650999
Optional accessories on page 15
Items not shown to scale
2
16
17
19
Portable Braking System
