Wiring the Plug.
1. Insert the end of the wiring cord through the safety channels. See illustration on page 12.
2. Wire the plug to match your vehicle or follow Figure A below. Apply silicone sealant to the wires where they
attach to the plug. This will prevent moisture and corrosion and help assure a trouble free wiring system.
Wiring the Sockets.
• Find a suitable location to install one of the electrical sockets on the front of the towed vehicle in reach of the
existing 4-wire harness.
• Remove the screw on the back of the electrical socket. Push the inner connector out of the front. Now run the
4-wire through the back of the housing.
SOCKET WIRE MOTORHOME CAR
PIN# COLOR
2 WHITE Ground Ground
4 BLACK Tail light Tail light
1 YELLOW Left turn / Stop Left turn / Stop
3 RED Right turn / Stop Right turn / Stop
3
4
1
2

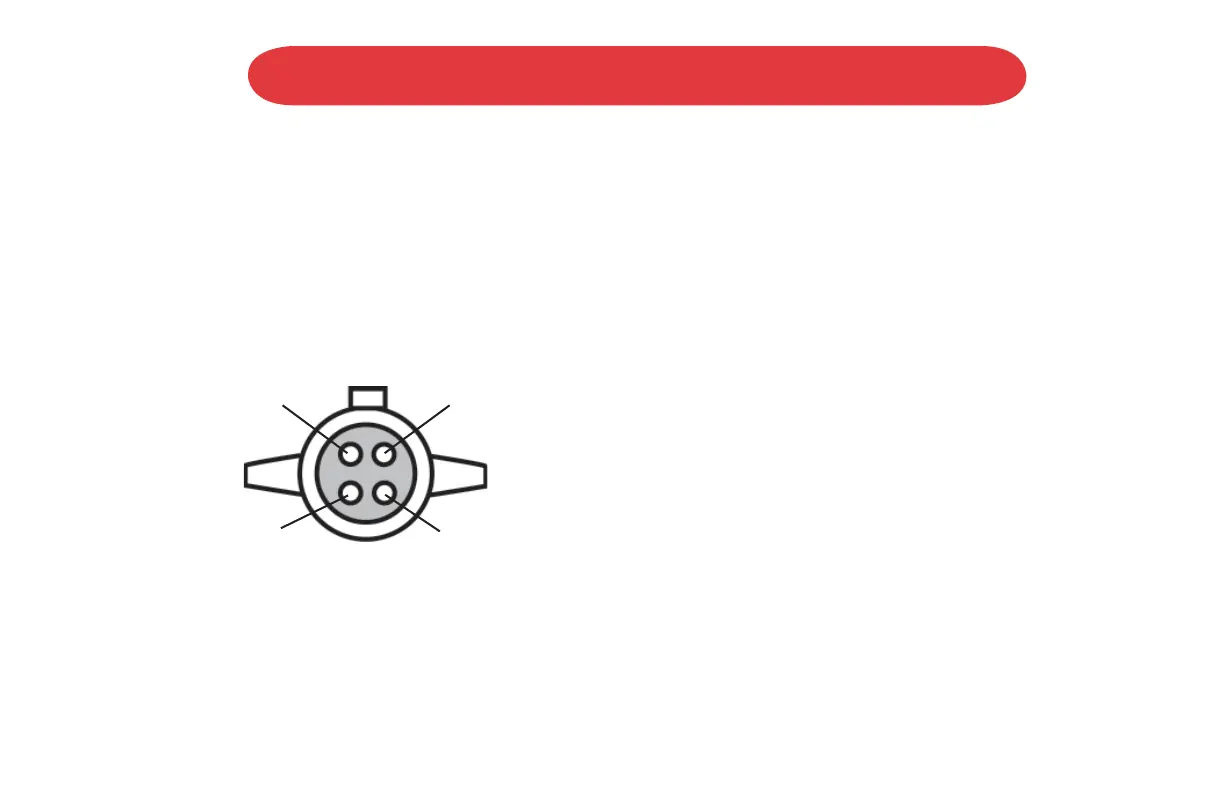

Front of Plug on Cord
Fig. A
WIRING INSTRUCTIONS
10
