Robe XT Series - In general; Features; Description of Components

5
2. In general
2.1 Features
6 - fold Multiscanner
- Intelligent centrepiece
- New! Now with additional cylinder-effect for even more change
- The rotation speed of the opposed cylinders is freely controllable
- New! Now with stepper-motors
- New! Now with rotating 3-fold prism-effect
- New! All in all 6 different gobos
- New! Multicolor-effect
- 2 effect-wheels (prism, gobos, colors), which can be mixed individually
- 3 different dichroic color filters (magenta, cyan, yellow)
- Programmable via every standard DMX-512 controller (12 channels)
- Black-Out

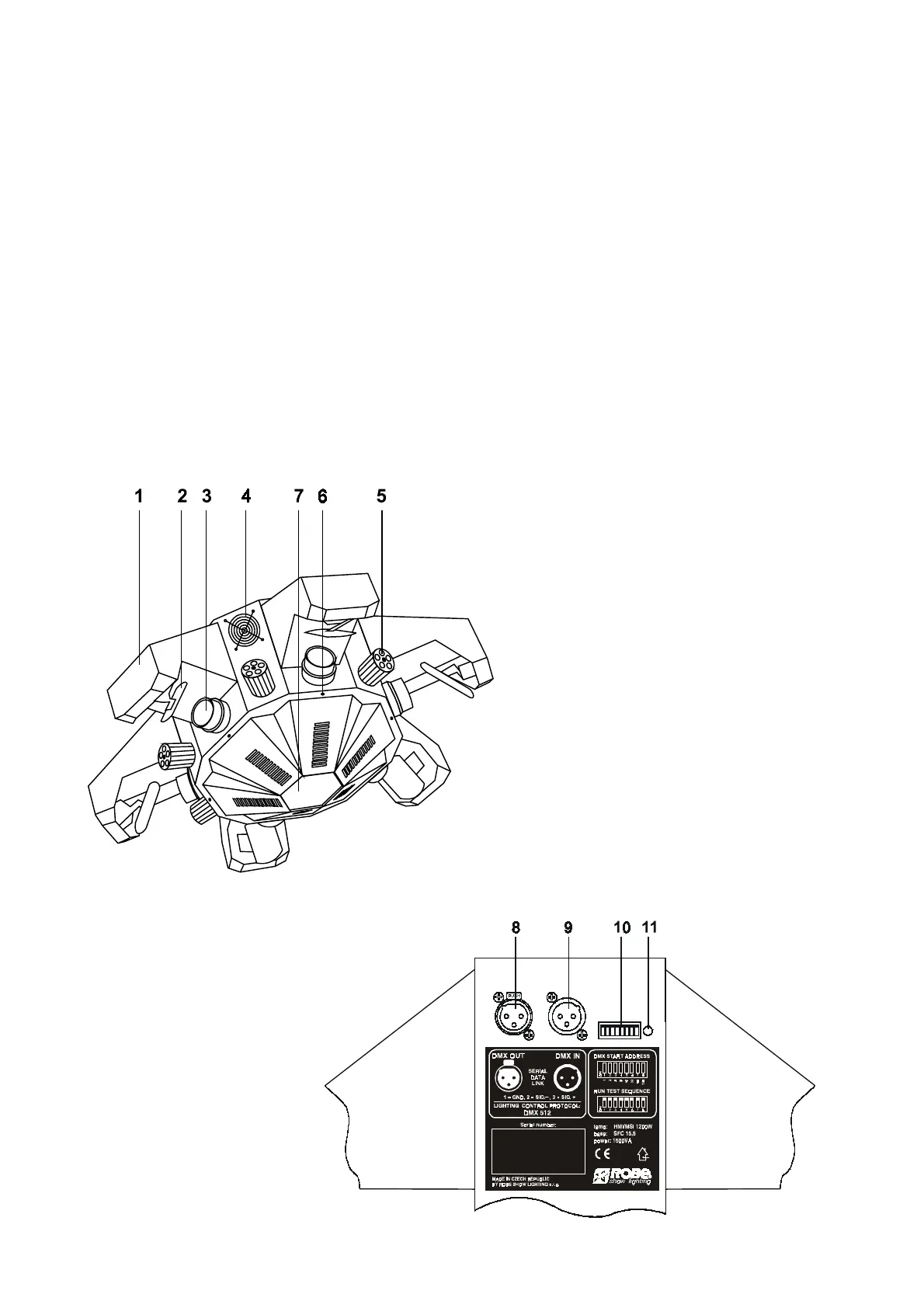

2.2 Description of components
1 - Mirror head
2 - Mirror
3 - Objective
4 - Fan
5 - Mirrored cylinder
6 - Fastening screw
7 - Top cover
8 - DMX-output
9 - DMX-input
10 - DIP-switches for projector selection
11 - Operating - LED

!

!
