Robe XT Series - Fitting the Lamp; Installation; General Instructions

6

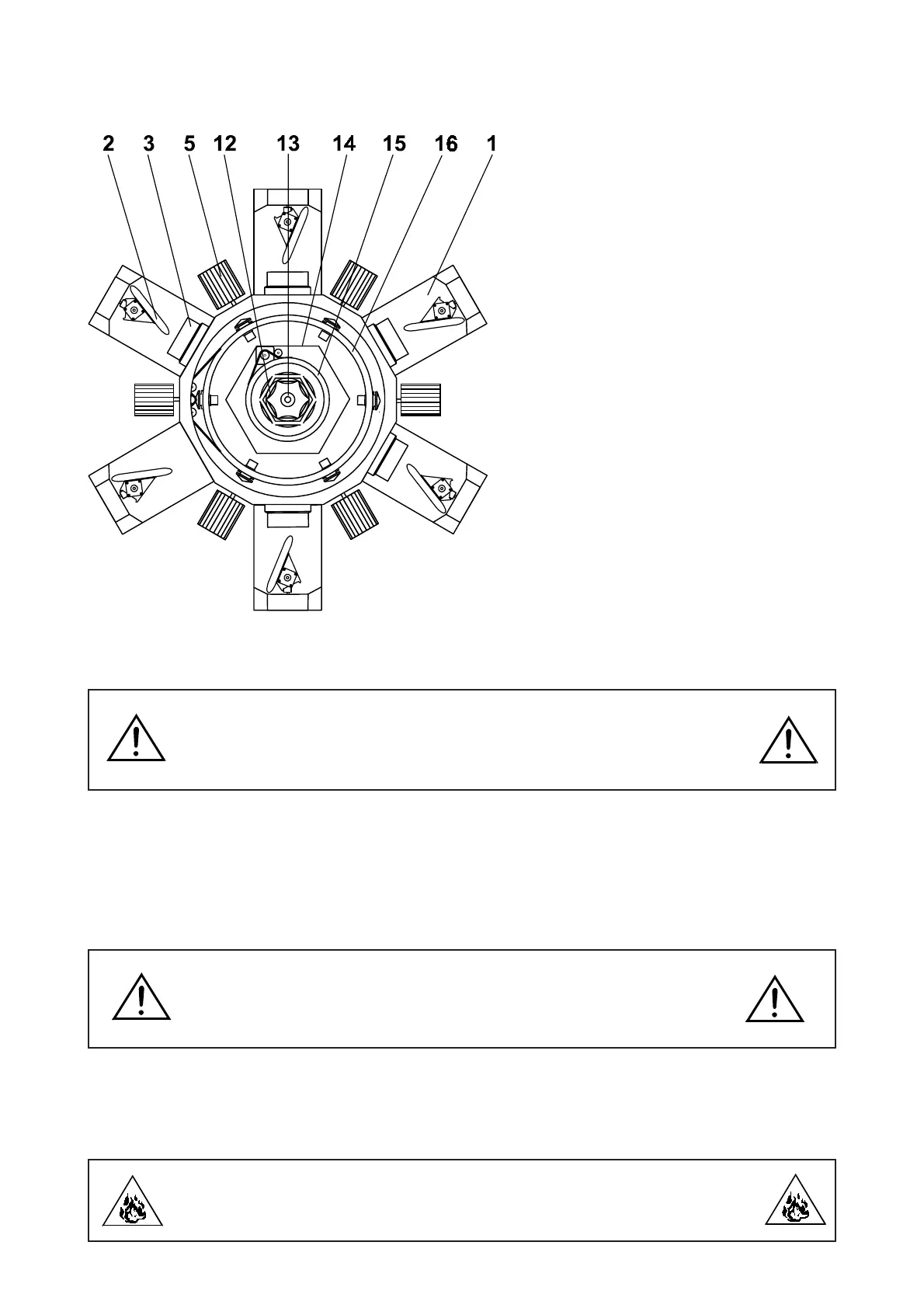

Internal view
1 - Mirror head
2 - Mirror
3 - Objective
5 - Mirrored cylinder
12 - lense holder
13 - Lamp holder
14 - Side cover
15 - Gobo holder
16 - Prism holder
2.3 Fitting the lamp
Caution !
Do not operate this device with opened service lid as continued
direct contact with discharge lamps can cause burned skin
because of ultraviolet radiation !
To insert the lamp (HMI 1200W) open the housing by loosening fastening screws at the top cover.
CAUTION: The lamp is very shock-sensitive!
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed for.
Damages caused by non-observance are not subject to warranty.
During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturers notes!
Before you close the housing again, make sure that the lamp is installed tightly into the lampholder system.
Reclose the housing and tighten the fastenig screws.
Caution !
Do not operate this device with opened service lid
as continued direct contact with discharge lamps can
cause burned skin because of ultraviolet light !
3. Installation
3.1 General instructions
Danger of fire !
When installing the device, make sure there is no highly-inflammble
material (decoration articles, etc.) within a distance of min. 0,5m.
