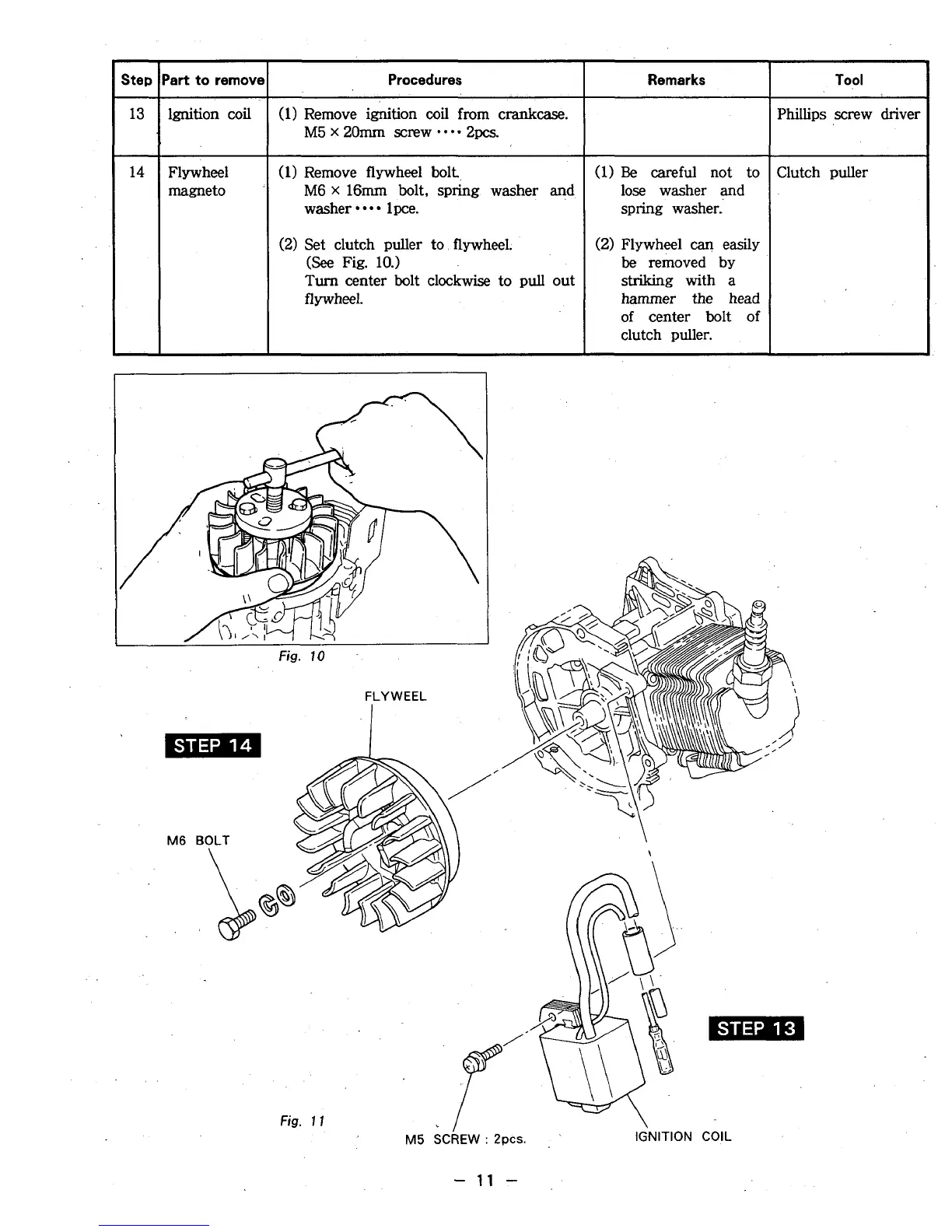

Step
13
-
14
-
Part to remove Procedures
lgnition coil
Flywheel
magneto
(1) Remove ignition coil from crankcase.
M5 x 2Omm SCEW **e* 2pcs.
(1) Remove flywheel bolt,
M6 X 16mm bolt, spring washer and
washer
1 pce.
(2) Set clutch puller to flywheel.
(See Fig. 10.1
Turn center bolt clockwise to pull out
flywheeL
Remarks I Tool 1
Phillips screw driver
(1) Be careful not to
Clutch puller
lose washer
sd
spring washer.
(2) Flywheel caq easily
be removed by
striking with a
hammer the head
of center bolt of
clutch puller.
Fig. 11
M5 SCREW : ZPCS. . IGNITION COIL
- 11 -
