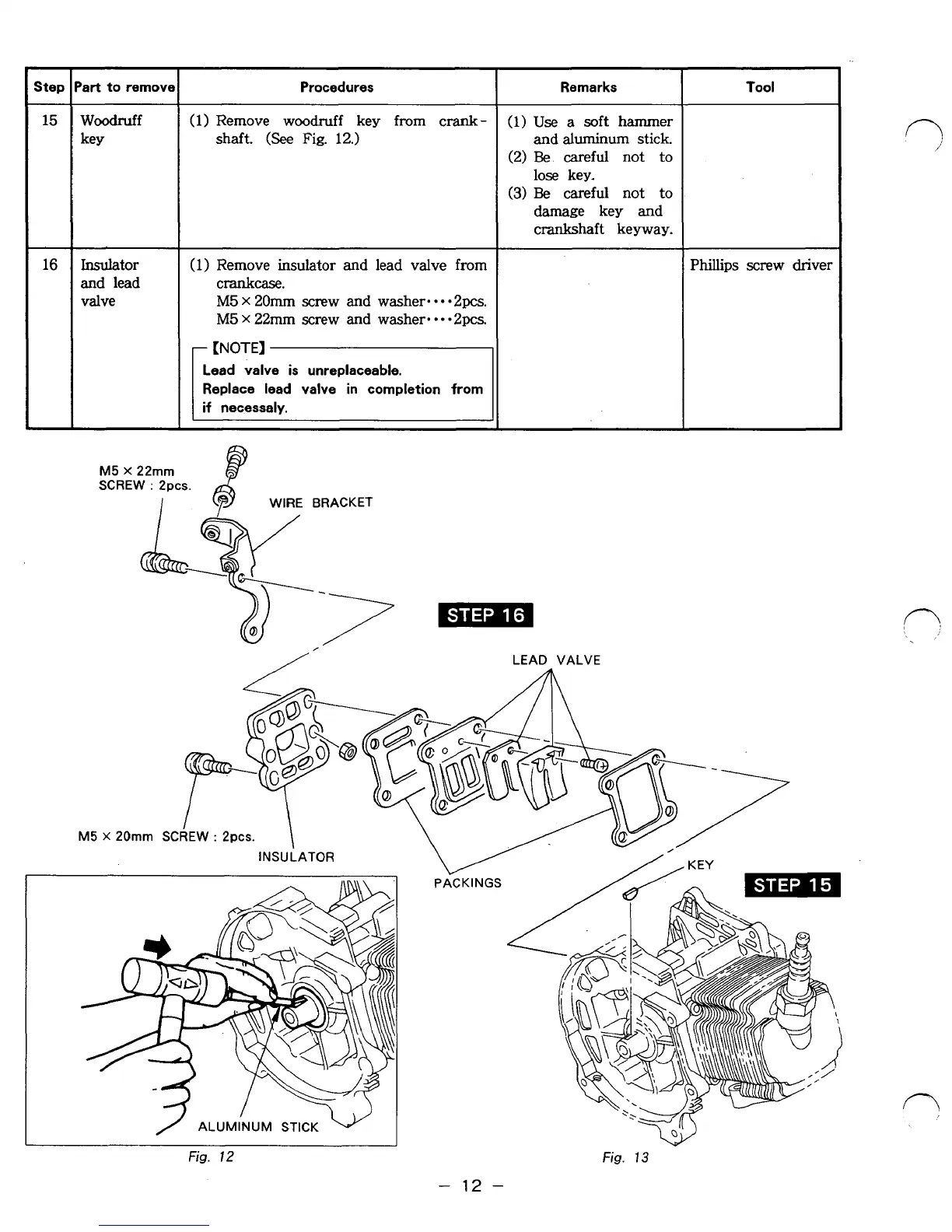

Robin EC03ER User Manual

'art to rernova
Woodruff
key
Insulator
and lead
valve
Procedures
(1) Remove woodruff key from crank -
shaft. (See Fig. 12.)
(1) Remove insulator and lead valve from
Crankcase.
M5 X 20mm screw and washer- 0. -2pcs.
M5 x 22mm screw and washer- *a -2pcs.
(NOTE1
Lead valve is unreplaceable.
Replace lead valve
in completion from
if necessaly.
~ ~~
M5 X 22mm
SCREW : 2pcs.
I $ WIRE BRACKET
Remarks
(1) Use a soft hammer
and aluminum stick.
(2) Be careful not to
lose key.
(3) Be careful not to
damage key and
crankshaft keyway.
Tool
Phillips screw driver
/ LEAD VALVE
M5 X 20mm SCREW : 2pcs.
INSULATOR
v
PACKINGS
Fig. 12
- 12 -
Fig. 13
