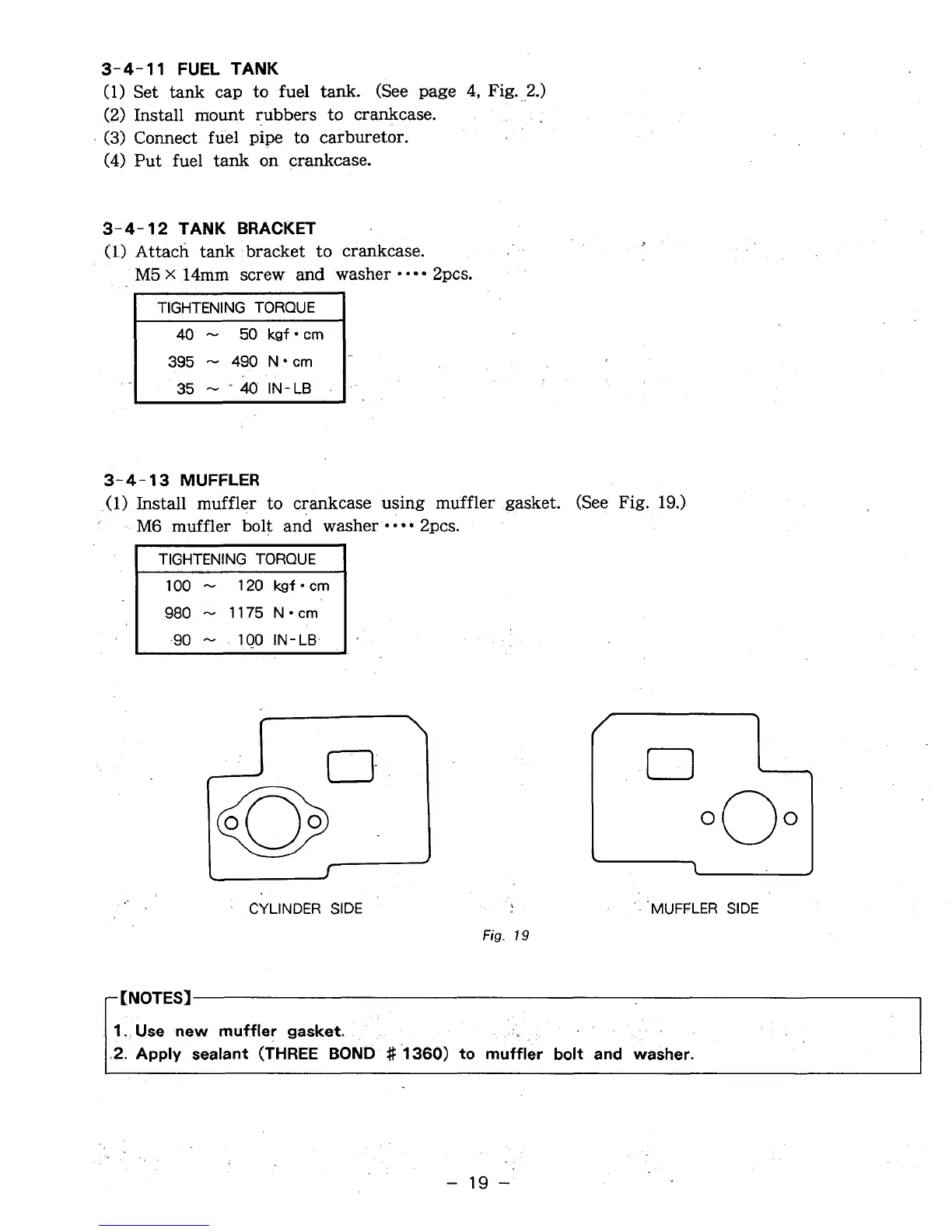

3-4-1 1 FUEL TANK
(1) Set tank cap to fuel tank. (See page 4, Fig. 2.)
(2) Install mount rubbers to crankcase.
(4) Put fuel tank on crankcase.
' I (3) Connect fuel pipe to carburetor.
3-4-12 TANK BRACKET
(1) Attach tank bracket to crankcase.
M5 X 14mm screw and washer -0 2pcs.
I TIGHTENING TORQUE I
40 - 50 kgf cm
395 - 490 N cm
35 - I 40 IN-LB
-
3- 4- 13 MUFFLER
.( 1) Install muffler to crankcase using muffler gasket. (See Fig. 19.)
-. M6 muffler bolt and washer 0. 2pcs.
I TIGHTENING TORQUE I
00°
CYLINDER SIDE
' - *MUFFLER SIDE
Fig. 19
[NOTES]
Use new muffler gasket.
Apply sealant (THREE BOND # .1360) to muffler bolt and washer.
- 19 -
