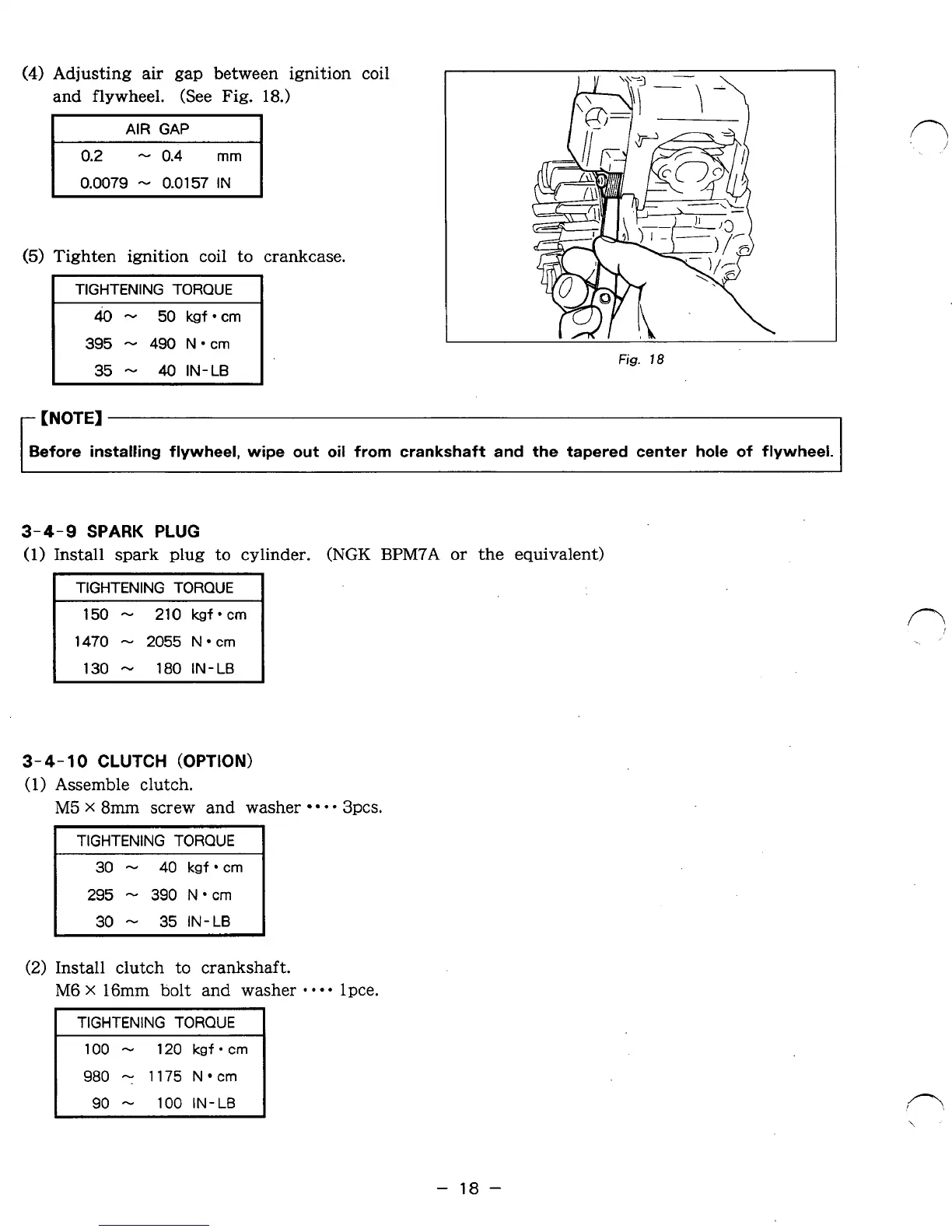

(4) Adjusting air gap between ignition coil
and flywheel. (See Fig.
18.)
I AIR GAP 1
I 0.0079 - 0.0157 IN
(5) Tighten ignition coil to crankcase.
I TIGHTENING TORQUE I
40 - 50 kgf *cm
395 - 490 N cm
35 - 40 IN-LB
Fig. 18
r
Before installing flywheel, wipe out oil from crankshaft and the tapered center hole of flywheel.
3-4-9 SPARK PLUG
(1) Install spark plug to cylinder. (NGK BPM7A or the equivalent)
I TIGHTENING TORQUE
210 kgf crn
1470 - 2055 N cm
130 - 180 IN-LB
3- 4- 10 CLUTCH (OPTION)
(1) Assemble clutch.
M5 X 8mm screw and washer ** 3pcs.
30 - 40 kgf cm
295 - 390 N cm
30 - 35 IN-LB
(2) Install clutch to crankshaft.
M6 X 16mm bolt and washer **a* lpce.
I TIGHTENING TORQUE I
100 - 120 kgf *cm
980 - 1175 N cm
90 - 100 IN-LB
n
/
- 18 -
