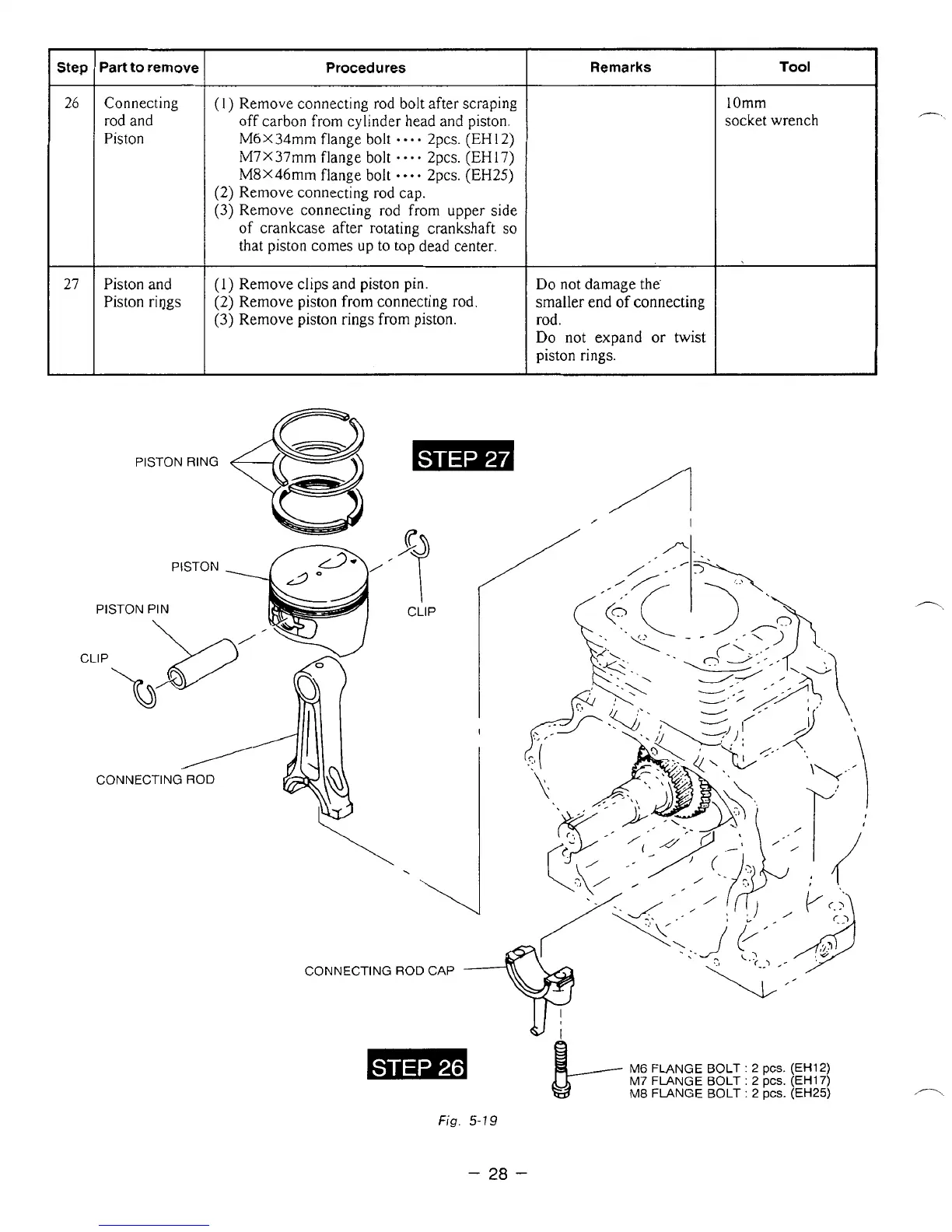

Step
26
27
Part
to remove
Connecting
rod
and
Piston
Procedures
.....
.
. .
.
..
. ."
.
. . .
. .
.
(1)
Remove connecting rod bolt after scraping
off
carbon from cylinder head and piston.
M6
X
34mm flange bolt
-
-
- -
2pcs. (EH 12)
M7X37mm flange
bolt
--.-
2pcs. (EH17)
M8X46mm flange
bolt
....
2pcs. (EH25)
(2)
Remove connecting rod cap.
(3)
Remove connecting rod from upper side
of crankcase after rotating crankshaft
so
that piston comes
up
to
top dead
center.
Piston and
(2) Remove piston
from
connecting rod. Piston
riugs
(I)
Remove clips and piston pin.
(3)
Remove piston rings from piston.
Remarks
Do
not damage the.
smaller end
of
connecting
rod.
Do
not
expand
or
twist
piston rings.
Tool
lOmm
socket wrench
M6
FLANGE
BOLT
:
2 pcs. (EH12)
M7
FLANGE
BOLT
:
2 pcs. (EH17)
M8
FLANGE
BOLT
:
2
pcs.
(EH25)
Fig.
5-1
9
-
28
-
