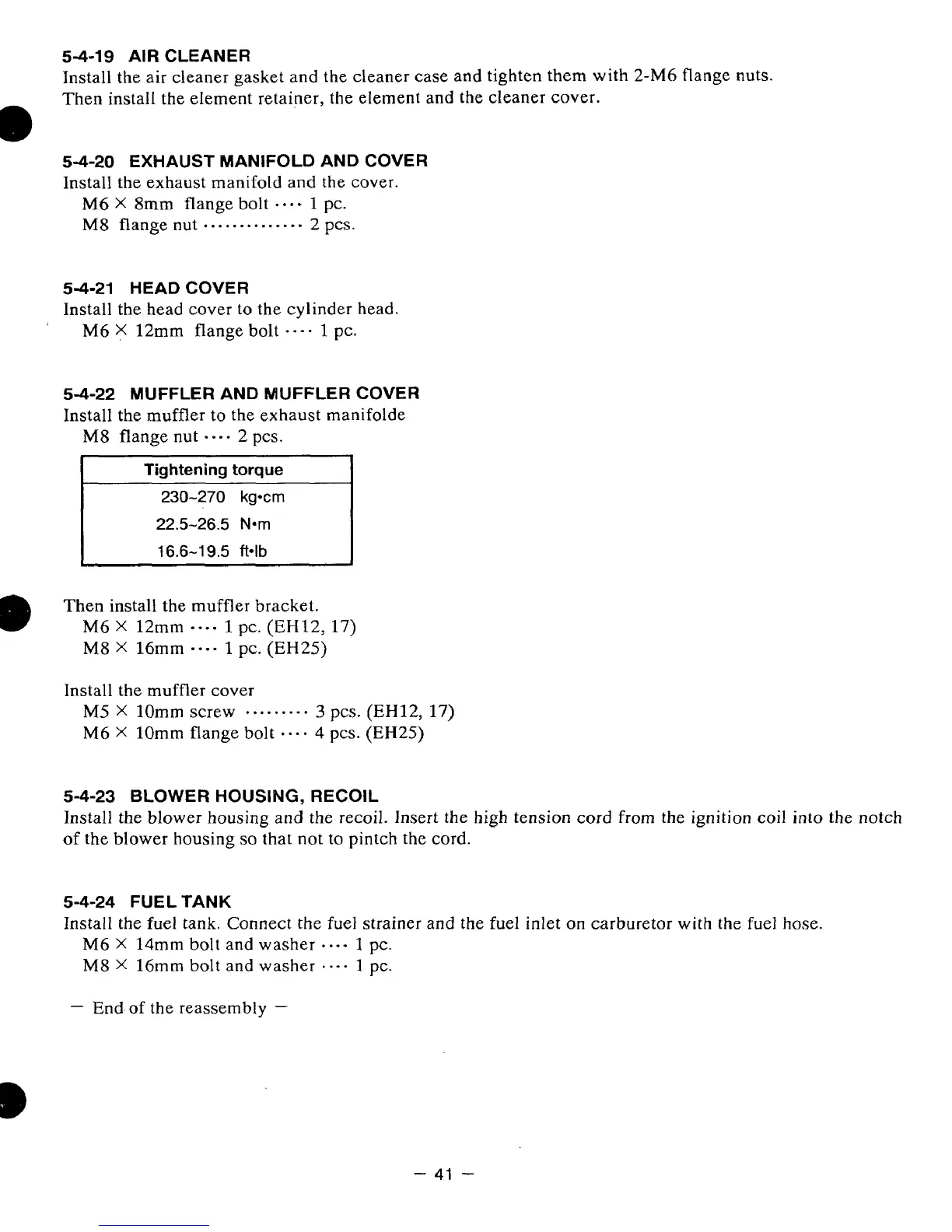

5-4-19
AIR CLEANER
Install the air cleaner gasket and the cleaner case and tighten them with
2-M6
flange nuts.
rn
Then install the element retainer,
the
element and
the
cleaner cover.
5-4-20
EXHAUST MANIFOLD AND COVER
Install the exhaust manifold and
the
cover.
M6
X
8mm
flange bolt
...
-
1
PC.
M8
flange
nut
.....f.-.-----
2
pcs.
5-4-21 HEAD COVER
Install the head cover
to
the cylinder head.
M6
X
12mm flange bolt
---
-
1
PC.
5-4-22
MUFFLER AND MUFFLER COVER
Install the muffler to the exhaust manifolde
M8
flange nut
.---
2
pcs.
I
Tightening
torque
I
230-270
kg-crn
22.5-26.5
Narn
16.6-1
9.5
ft*lb
@
Then install the muffler bracket.
M6
X
12mm
----
1
PC.
(EH12,
17)
M8
X
16mm
---
-
1
PC.
(EH25)
Install the muffler cover
M5
X
lOmm
screw
*..-..--.
3
pcs.
(EW12,
17)
M6
X
lOmm flange bolt
....
4
pcs.
(EH25)
5-4-23
BLOWER
HOUSING, RECOIL
Install the blower housing and the recoil. Insert the high tension cord
from
the
ignition
coil
into
the notch
of
the blower housing
so
that
not
to pintch the cord.
5-4-24 FUEL TANK
Install
the
fuel tank. Connect the
fuel
strainer and
the
fuel
inlet
on
carburetor with the
fuel
hose.
M6
X
14mm
bolt and washer
---.
1
PC.
M8
X
16mm bolt
and
washer
.--.
1
PC.
-
End-
of
the reassembly
-
-
41
-
