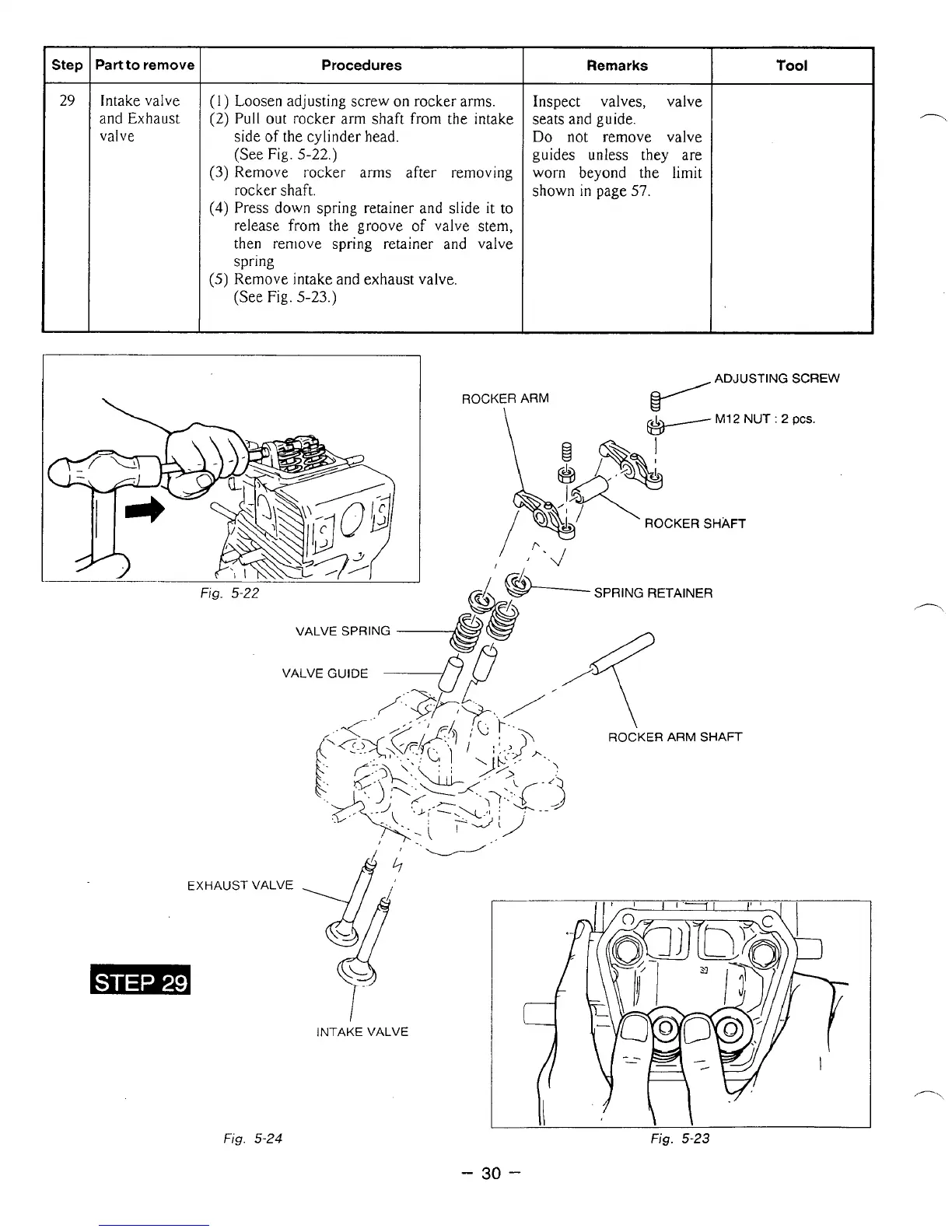

Procedures
~~~~
(1)
Loosen adjusting screw on
rocker
arms.
(2)
Pull
out rocker arm shaft from the intake
side
of
the cylinder head.
(See Fig.
5-22.)
(3)
Remove rocker arms after removing
rocker shaft.
(4)
Press down spring retainer and slide it
to
release from the groove of valve stem,
then remove spring retainer and valve
spring
(See
Fig.
5-23.)
(5)
Remove intake and exhaust valve.
Step
Part
to
remove
29
Intake valve
and Exhaust
valve
"
-
Remarks
Inspect valves, valve
seats and guide.
Do
not remove valve
guides unless they are
worn beyond
the
limit
shown
in
page
57.
Tool
ROCKER
ARM
ROCKER
SHAFT
SPRING
RETAINER
VALVE
SPRING
SCREW
DCS.
I
INTAKE
VALVE
II
I\
Fig.
5-23
Fig.
5-24
-
