Robin EH30V User Manual

4-9 COOLING SYSTEM
The large fins on the flywheel provide sufficient cooling air capacity for the inlet and exhaust
area and cylinder.
a The cylinder baffle helps the cooling air flow efficiently.
4- 10 LUBRICATION
Both EH30V (EH34V) and EH43V have a trochoid pump inside the main bearing cover that is
driven by the camshaft.
EH3OV and EH34V use forced splash
type lubrication while the larger EH43V employs a pressurized
-lubrication which pressure lubricates all the rotating surfaces of the crankshaft and supplies
oil to piston, cylinder and connecting rod’s small end from the oil jet on crankshaft arm.
(See
Fig. 9.)
OIL FILTER
/

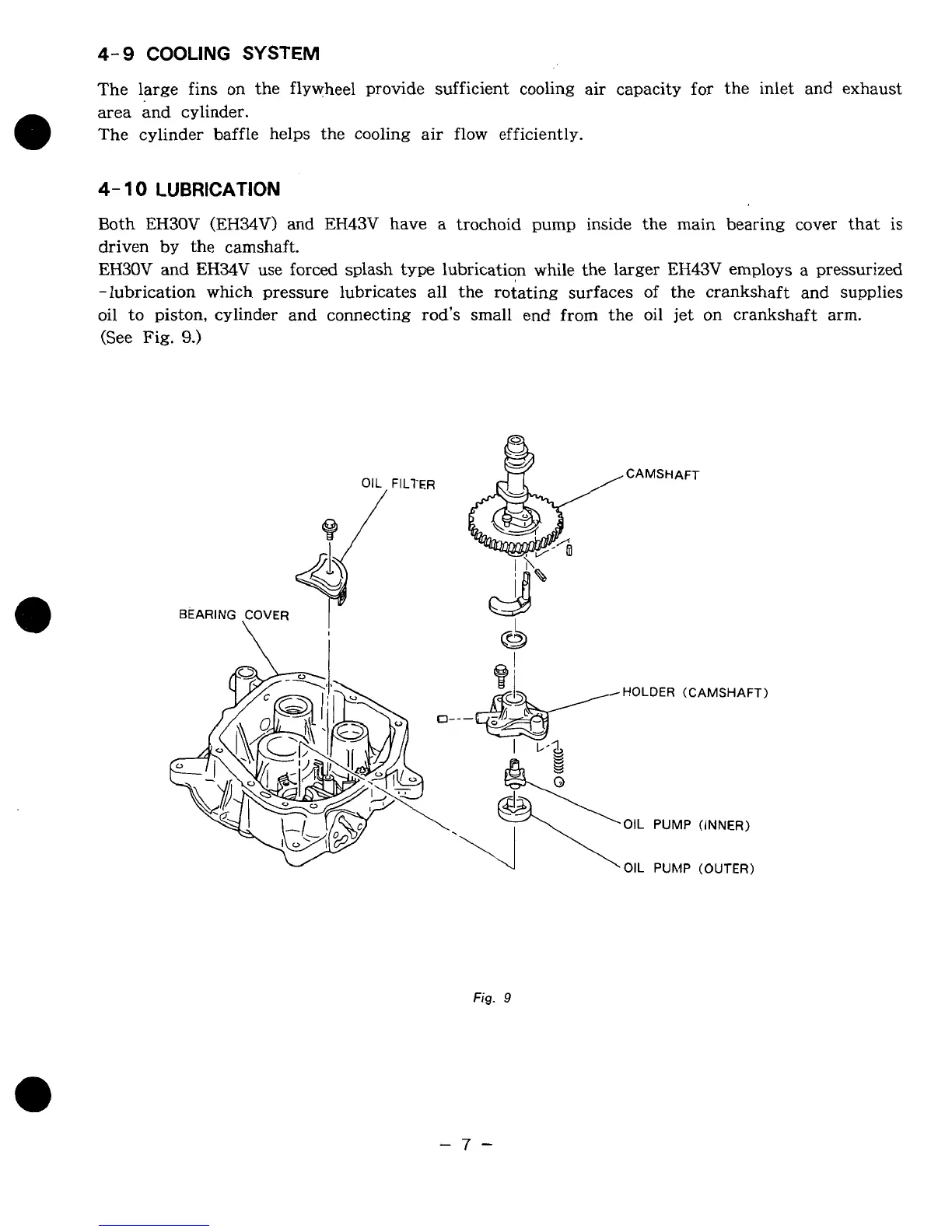

BEARING ,COVER I
CAMSHAFT
Fig. 9
-7-

Robin EH30V Specifications

General

Maximum Power RPM	3600 rpm
Maximum Torque RPM	2500 rpm
Fuel Type	Gasoline
Oil Capacity	1.1 L
Fuel System	Carburetor
Ignition System	Transistorized magneto ignition
Starting System	Recoil start
Engine Type	4-stroke, OHV, single cylinder
Maximum Power	7.5 kW (10.0 HP)
