Robin EH30V User Manual

5- 3 DISASSEMBLY PROCEDURES
Part to remove
Oil drain
Procedures Tool
Remarks
Remove oil drain plug and drain oil. 17mm Box wrench Be careful not to lose
the gasket.
Fuel tank
(1) Turn off fuel shut - off valve and
(2) Fuel shut-off valve and fuel line.
lOmm
Box wrench
remove fuel
tank.
6 d X ~OITUII Bolt *.**--** 2pcs.
6 4 X 35m Bolt *-.-..*. 1 pce.
I

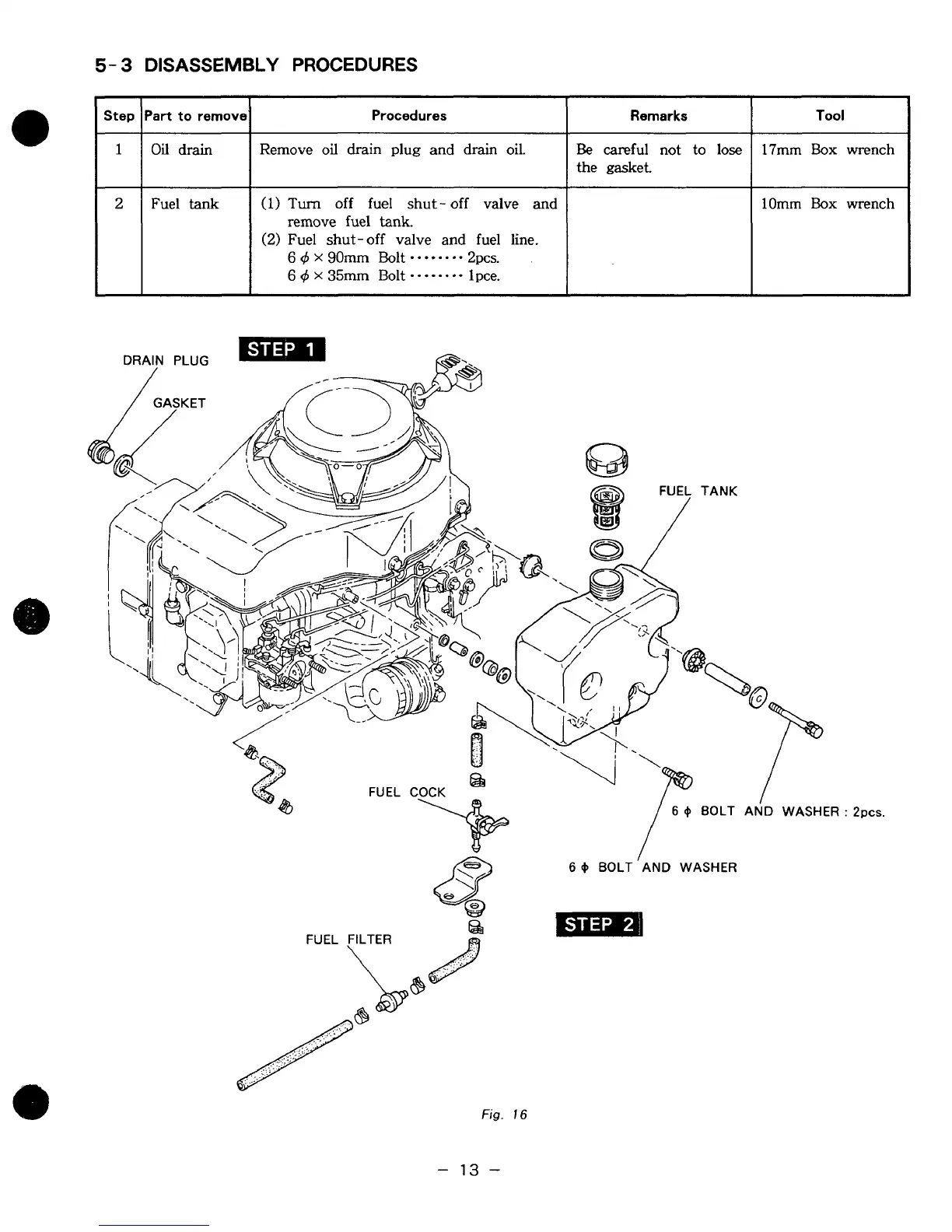

6 + BOLT AND WASHER
Fig. I6
- 13 -
