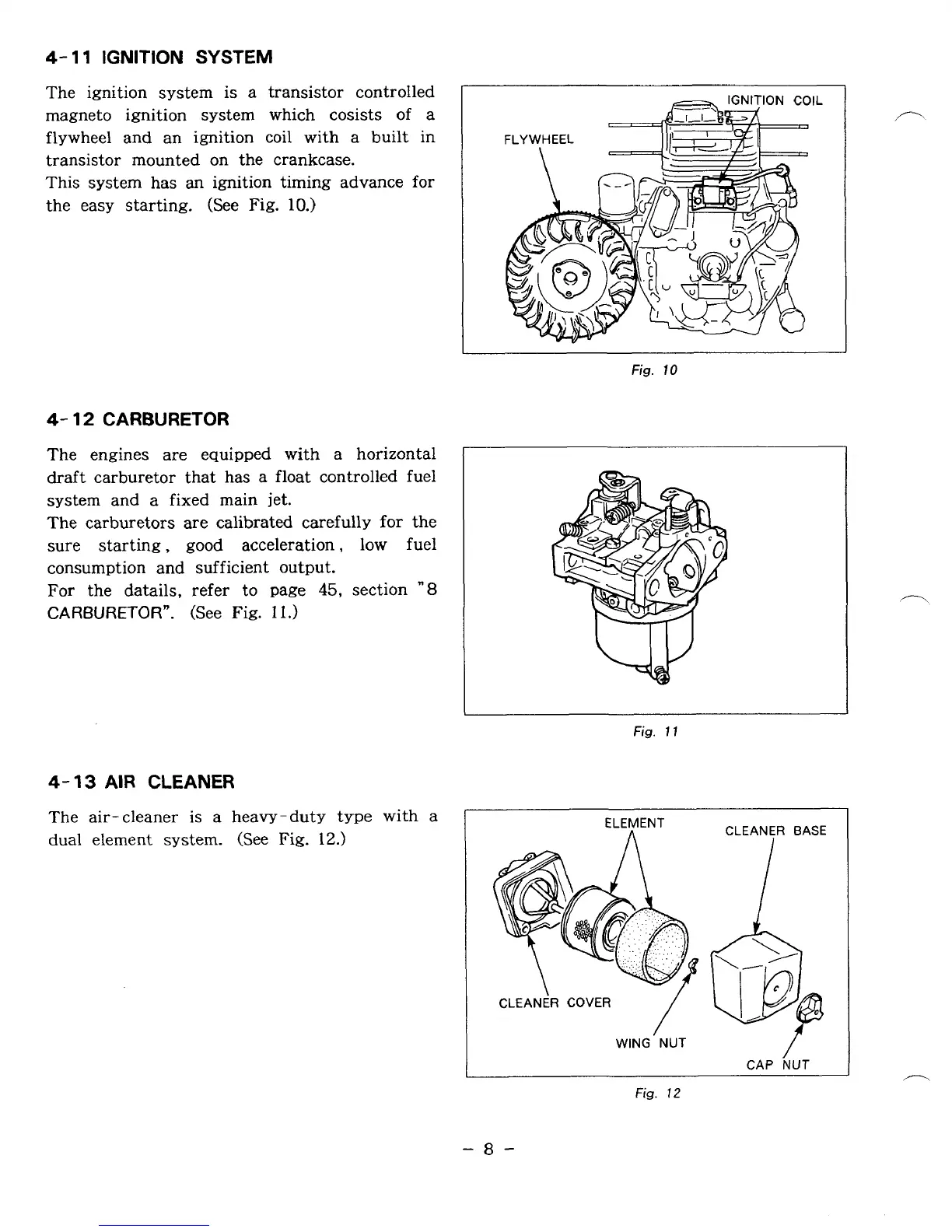

4- 1 1 IGNITION SYSTEM
The ignition system is a transistor controlled
magneto ignition system which cosists of a
flywheel and an ignition coil with a built in
transistor mounted on the crankcase.
This system has
an ignition timing advance for
the easy starting. (See Fig. 10.)
Fig. 10
4- 12 CARBURETOR
The engines are equipped with a horizontal
draft carburetor that has
a float controlled fuel
system and a fixed main
jet.
The carburetors are calibrated carefully for the
sure starting,
good acceleration, low fuel
consumption and sufficient output.
For the datails, refer to page 45, section "8
CARBURETOR". (See Fig. 11.1
Fig. 1 1
4- 13 AIR CLEANER
The air- cleaner is a heavy- duty type with a
dual element system. (See
Fig. 12.1
I A CLEANER BASE I
ELEMENT
I CAP hUT I
Fig. 12
