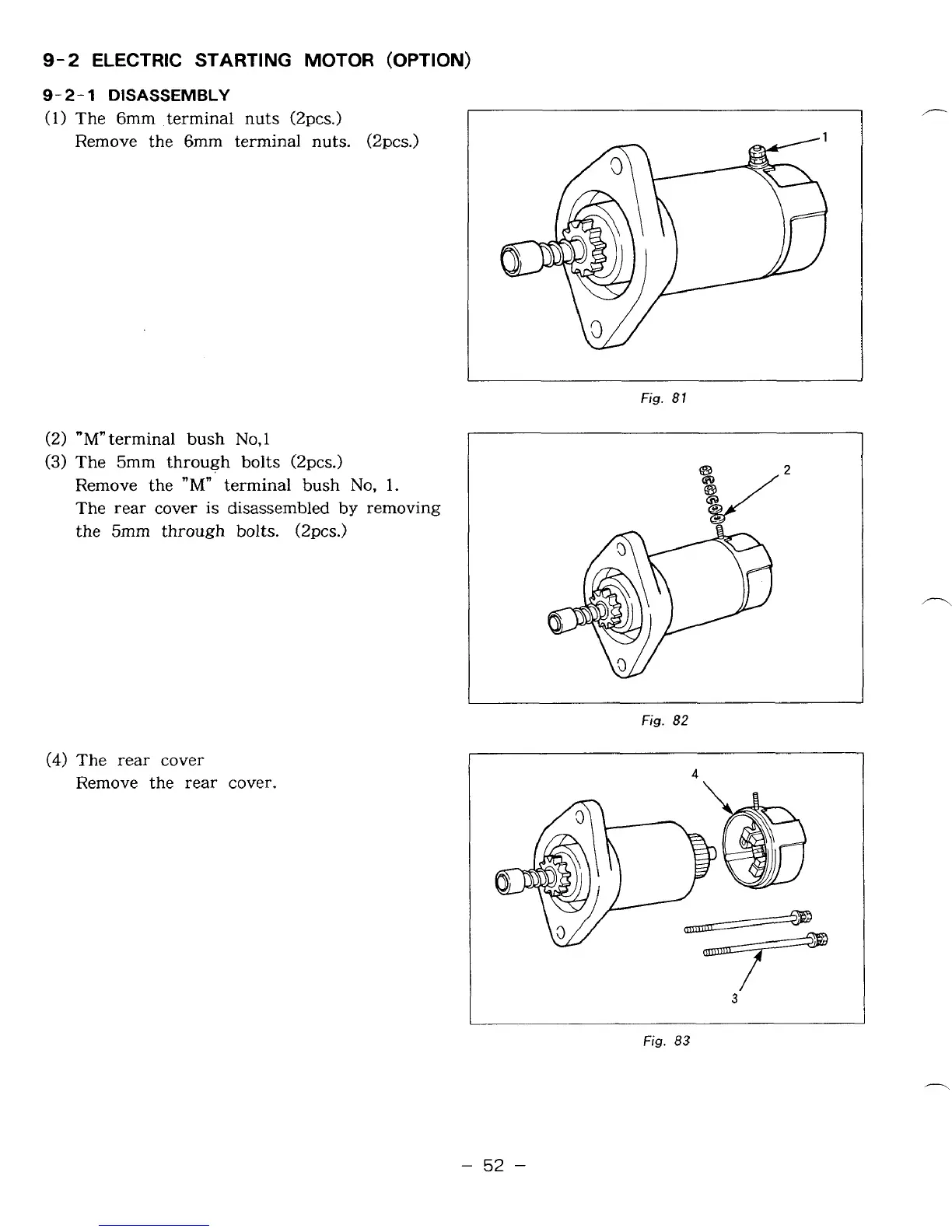

9-2 ELECTRIC STARTING MOTOR (OPTION)
9- 2 - 1 DISASSEMBLY
(1) The 6mm terminal nuts (2pcs.)
Remove the 6mm terminal nuts. (2pcs.)
(2) "M" terminal bush No,l
(3) The 5mm through bolts (2pcs.)
Remove the "M" terminal bush No, 1.
The rear cover is disassembled by removing
the
5mm through bolts. (2pcs.)
(4) The rear cover
Remove the rear cover.
Fig. 81
Fig. 82
I 4
/
3
Fig. 83
- 52 -
