9.
STARTING
SYSTEM
9-
1
RECOIL
STARTER

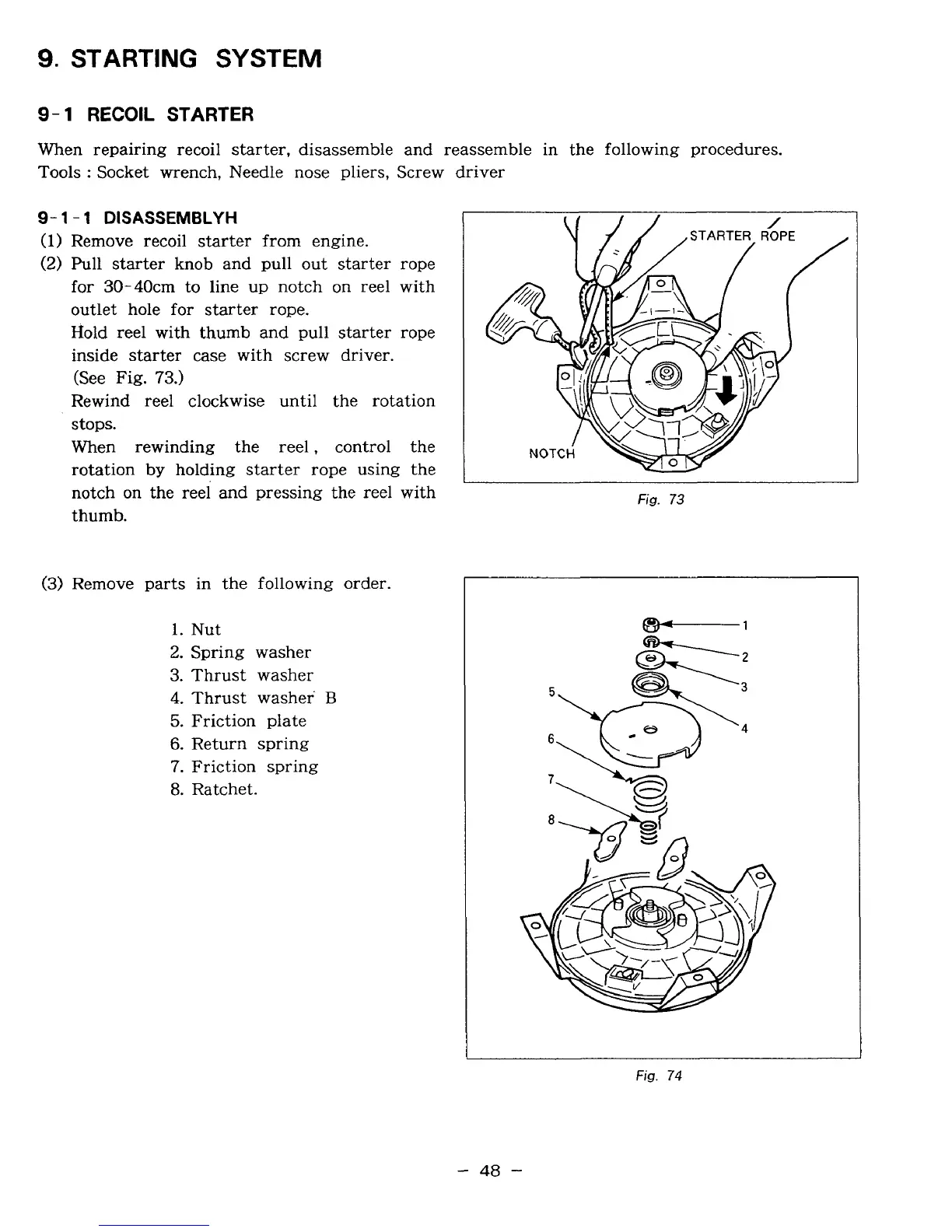

When repairing recoil starter, disassemble and reassemble in the following procedures.
Tools
:
Socket wrench, Needle nose pliers, Screw driver
9-
1
-
1
DISASSEMBLYH
(1)
Remove recoil starter from engine.
(2)
Pull starter knob and pull out starter rope
for 30-40cm to line up notch on reel with
outlet hole for starter rope.
Hold reel with thumb and pull starter rope
inside starter case with screw driver.
(See Fig.
73.)
Rewind reel clockwise until the rotation
stops.
When rewinding the reel, control the
rotation
by
holding starter rope using the
notch on the reel and pressing the reel with
thumb.
(3)
Remove parts in the following order.
1.
Nut
2.
Spring washer
3.
Thrust washer
4.
Thrust washer
B
5.
Friction plate
6.
Return spring
7.
Friction spring
8.
Ratchet.
Fig.
73
Fig.
74
-
48
-
