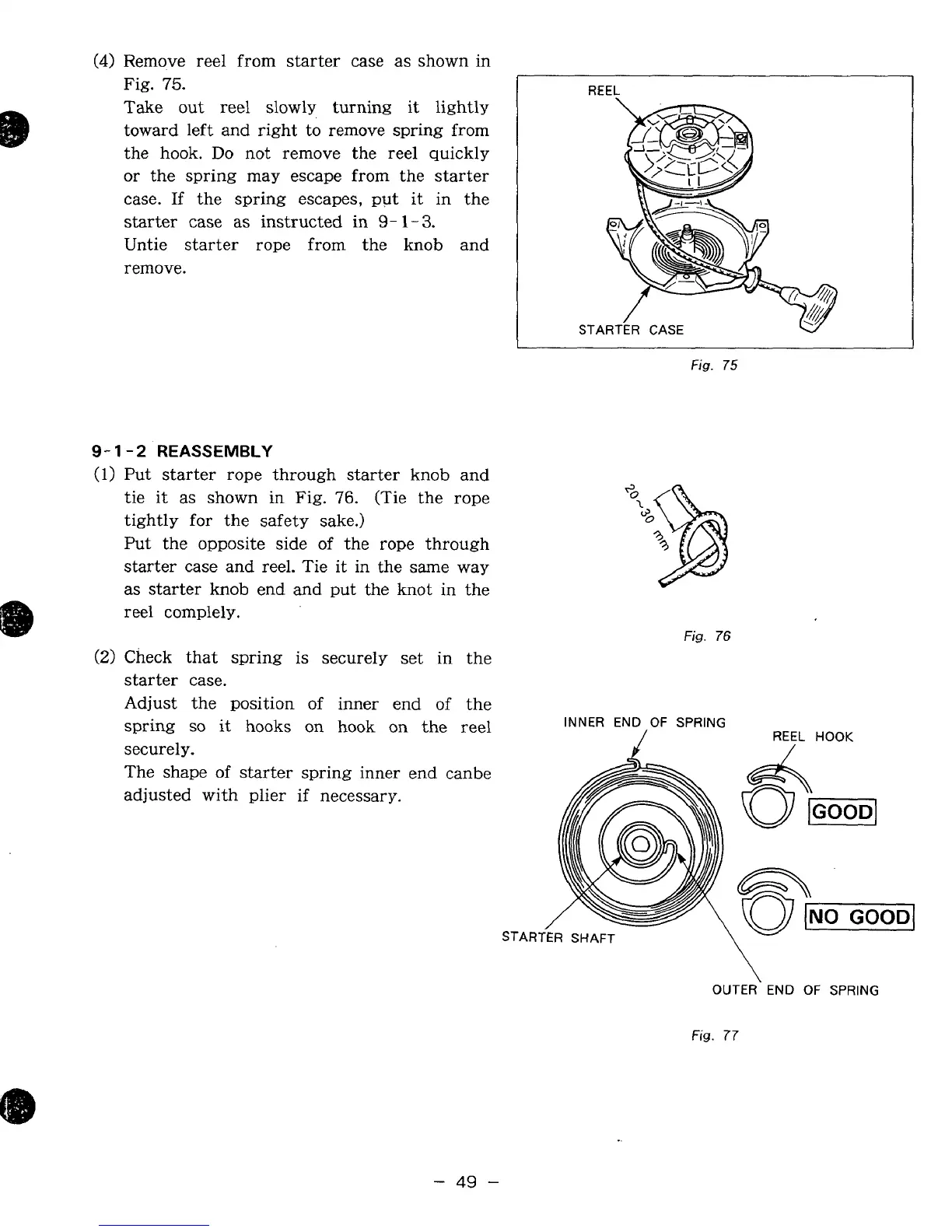

Remove reel from starter case as shown in
Fig.
75.
Take out reel slowly turning it lightly
toward left and right to remove spring from
the hook.
Do
not remove the reel quickly
or the spring may escape from the starter
case.
If
the spring escapes, put it in the
starter case as instructed
in
9-
1
-
3.
Untie starter rope from the knob and
remove.
9-
1
-2
REASSEMBLY
(1)
Put
starter rope through starter knob and
tie
it
as shown in
Fig.
76.
(Tie the rope
tightly for the safety sake,)
Put
the opposite side
of
the rope through
starter case and reel. Tie
it
in the same way
as starter knob end and put the knot
in
the
reel
complely.
I
REEL
Fig.
75
Fig.
76
(2)
Check that spring is securely set in the
starter case.
Adjust the position of inner end
of
the
spring
so
it hooks
on
hook
on
the reel
INNER
END
OF
SPRING
securely.
REEL
HOOK
/
The shape of starter spring inner end canbe
adjusted with plier if necessary.
STAR
OUTER
END
OF
SPRING
Fig.
77
-
