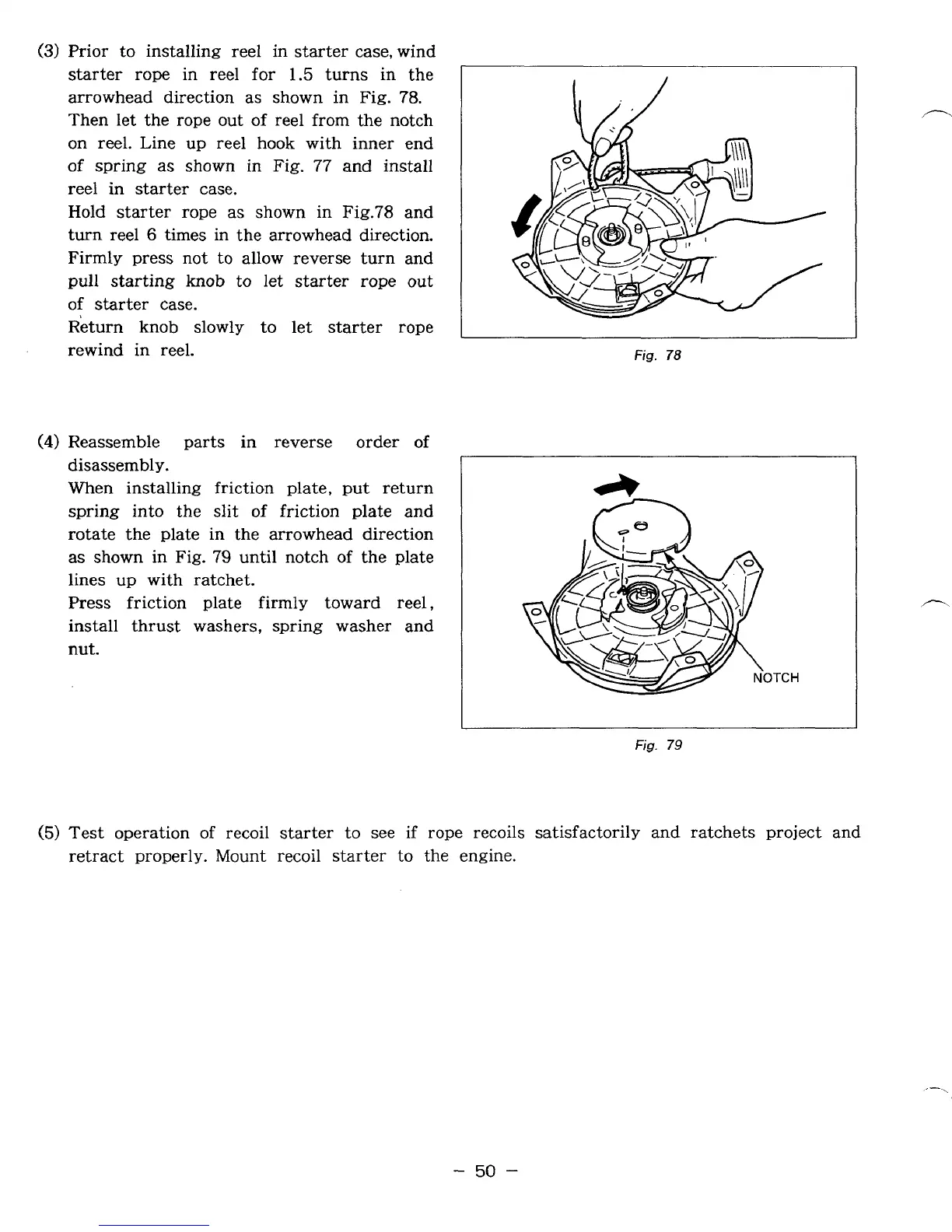

(3)
Prior
to
installing reel in starter case, wind
starter rope in reel for
1.5
turns in the
arrowhead direction as shown in
Fig.
78.
Then let the rope out of reel
from
the notch
on reel. Line up reel
hook
with inner end
of spring as shown in Fig.
77
and install
reel in starter case.
Hold starter rope as shown in
Fig.78
and
turn reel
6
times in the arrowhead direction,
Firmly press
not
to
allow reverse turn and
pull starting
knob
to let starter rope out
of starter case.
Return knob slowly to let starter rope
rewind in reel.
(4)
Reassemble parts in reverse order
of
disassembly.
When installing friction plate, put return
spring into the slit
of
friction plate and
rotate the plate in the arrowhead direction
as shown in Fig.
79
until notch of the plate
lines up with ratchet.
Press friction plate firmly toward reel,
install thrust washers, spring washer and
nut.
L
Fig.
78
3TCH
Fig.
79
(5)
Test operation of recoil starter to
see
if rope recoils satisfactorily and ratchets project and
retract properly. Mount recoil starter to the engine.
.
-.
-
50
-
