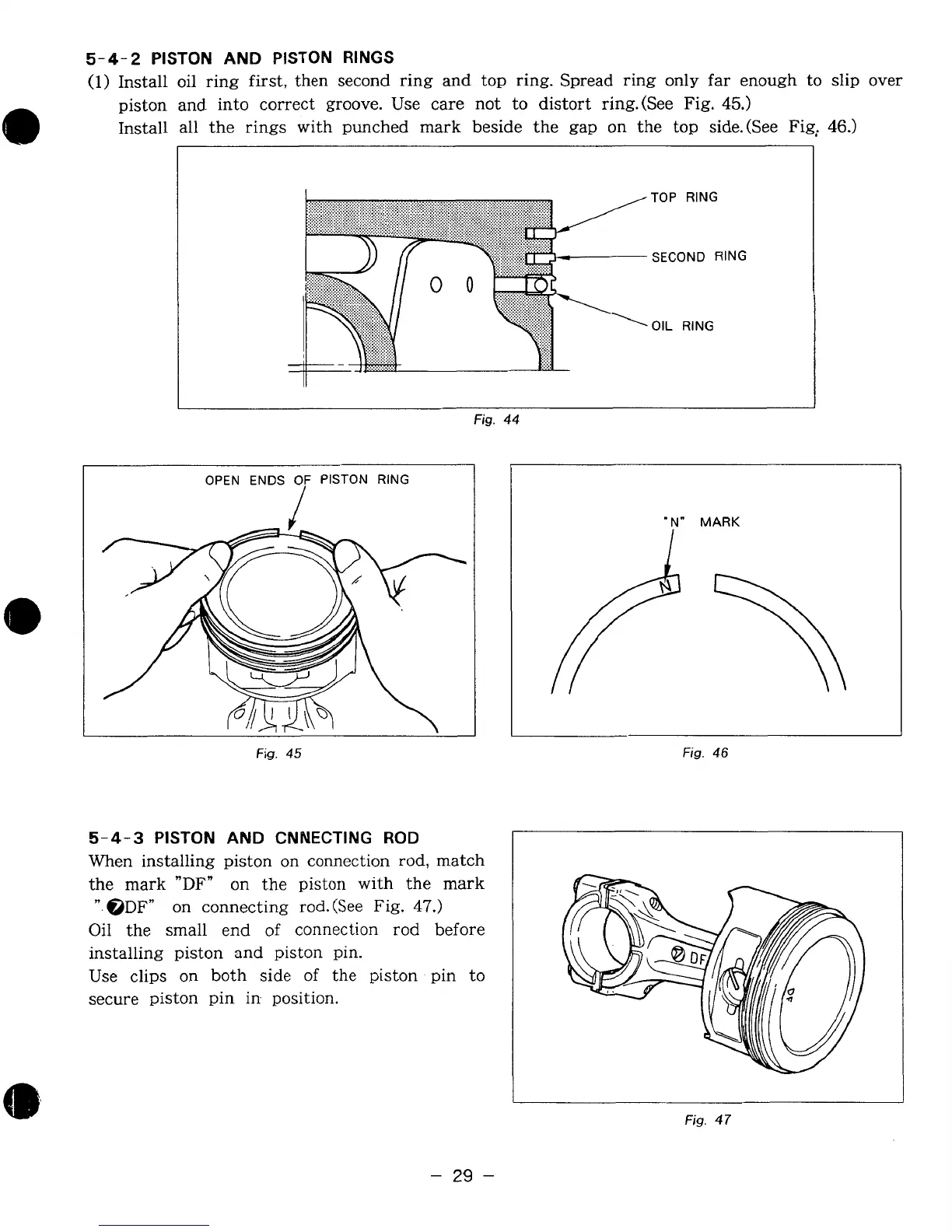

5-4-2
PISTON AND
PISTON
RINGS
(1)
Install oil ring first, then second ring and top ring. Spread ring only
far
enough to
slip
over
piston and into correct groove. Use care not to distort
ring.(See
Fig.
45.)
Install all the rings with punched mark beside the gap
on
the top side.(See
Fig,.
46.)
e
TOP
RING
SECOND RING
OIL
RING
OPEN ENDS OF PISTON RING
I
Fig.
44
Fig.
45
5-4-3
PISTON
AND
CNNECTING
ROD
When installing piston
on
connection rod, match
the mark
"DF"
on
the
piston with the mark
''@DF"
on connecting rod.(See Fig.
47.)
Oil the small end of connection
rod
before
installing piston and piston pin.
Use
clips
on
both
side of the piston pin to
secure piston pin
in
position.
"N"
MARK
Fig.
46
Fig.
47
-
29
-
