Robin EH30V User Manual

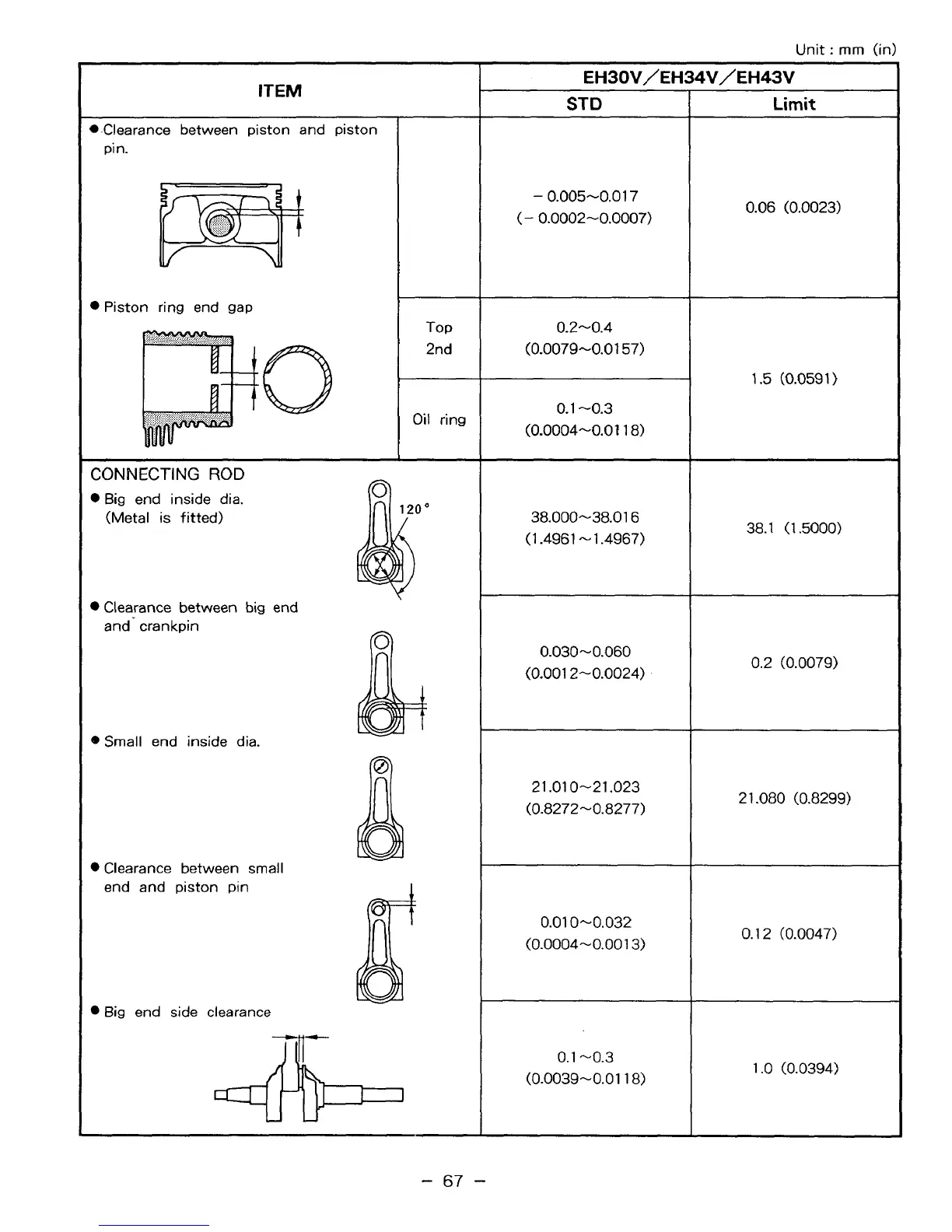

Unit : mm (in)
ITEM
STD
Limit
*.Clearance between piston and piston
pin.
- 0.005-0.01 7
(- 0.0002-0.0007)
0.06 (0.0023)
Piston ring end gap
TOP
2nd
0.2-0.4
(0.0079-0.01 57)
1.5 (0.059 1 )
0.1 -0.3
(0.0004-0.01 18)
Oil ring
CONNECTING ROD
Big end inside dia.
(Metal is fitted)
0"
38.000-38.01 6
(1.496
1 - 1.4967)
38.1
(1.5000)
Clearance between big end
and- crankpin
0.030-0.060
(0.001 2-0.0024)
0.2 (0.0079)
@ Small end inside dia.
21.01 0-21.023
(0.8272-0.8277)
2 1.080
(0.8299)
Clearance between small
end and piston pin
0.01 0-0.032
(0.0004-0.001 3)
0.1 2 (0.0047)
Big end side clearance
"CCIC
0.1 -0.3
(0.0039-0.01 18)
1 .O (0.0394)
- 67 -
