4-14

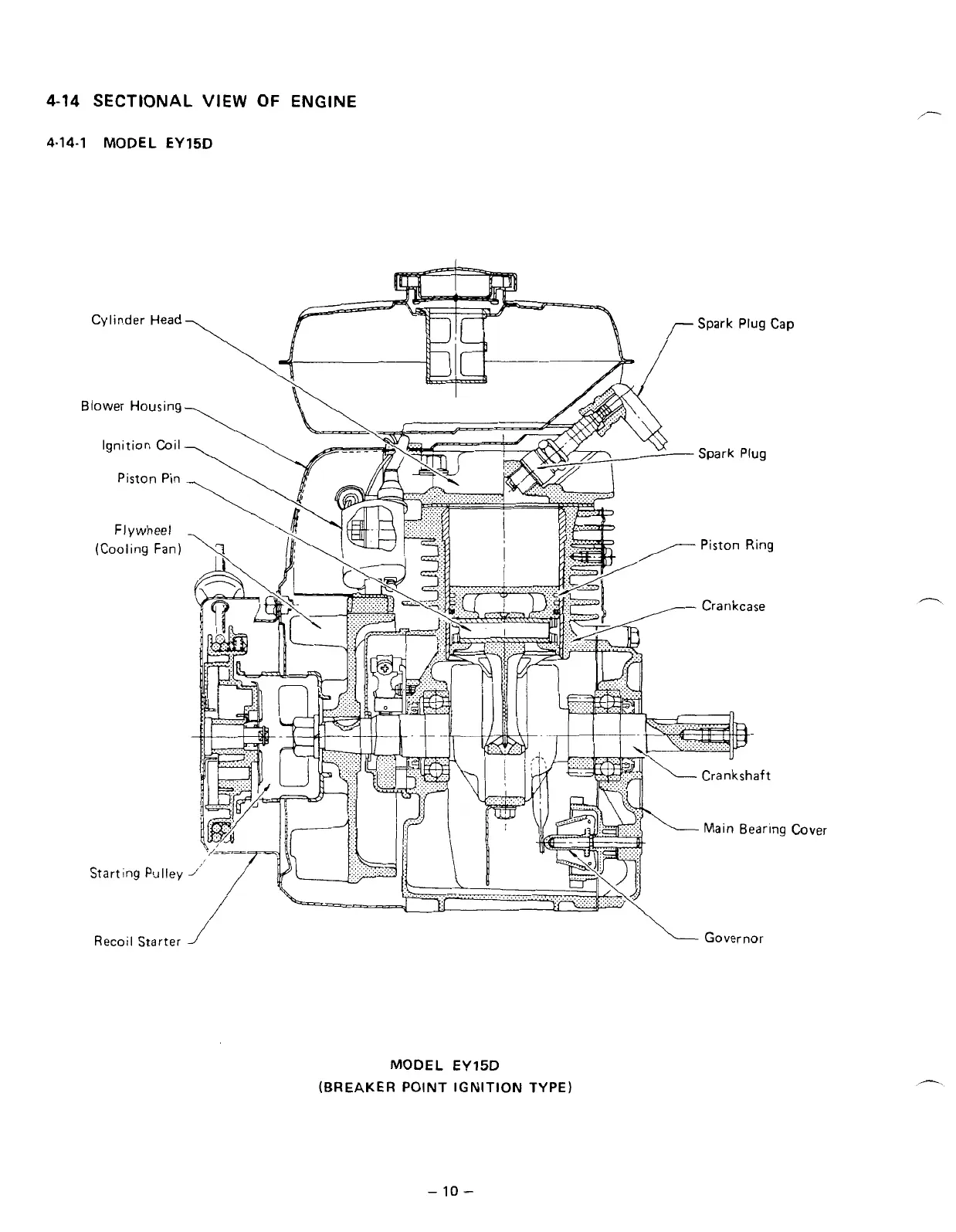

SECTIONAL
VIEW
OF
ENGINE
4-14-1
MODEL
EY15D
Cylinder
Head
Blower
Housing
Ignition
Coil
Piston
Pin
Flywheel
(Cooling Fan)
Starting
Pulley
Recoil
Starter
Governor
MODEL
EY15D
(BREAKER POINT IGNITION TYPE)
-
10
-
