Robin EY28 Service Manual

12-5 WIRING
RECOIL STARTER OPERATION

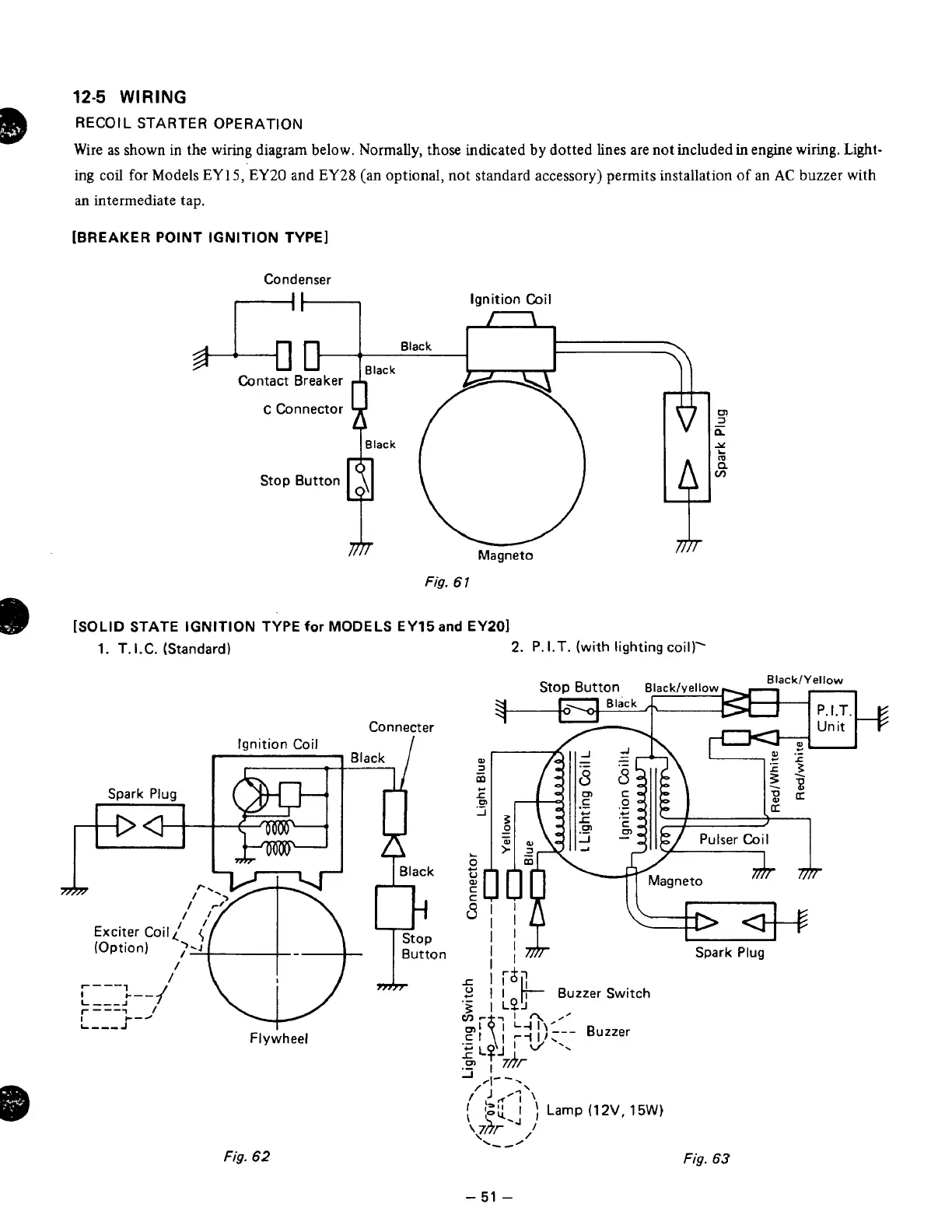

Wire as shown in the wiring diagram below. Normally, those indicated by dotted lines are not included in engine wiring. Light-
ing
coil for Models EY15,.EY20 and EY28 (an optional, not standard accessory) permits installation of an AC buzzer with
an intermediate tap.
[BREAKER POINT IGNITION TYPE]
Condenser
Ignition
Coil
2
m
3
n
?
-
m
P
v)
Magneto
Fig. 61
[SOLID STATE IGNITION TYPE for MODELS EY15 and EY201
1. T. I.C. (Standard) 2. P. I.T. (with lighting coil)'
BlacklYellow
Spark Plug
Buzzer Switch
""
Fig. 62
- 51 -
Fig. 63
