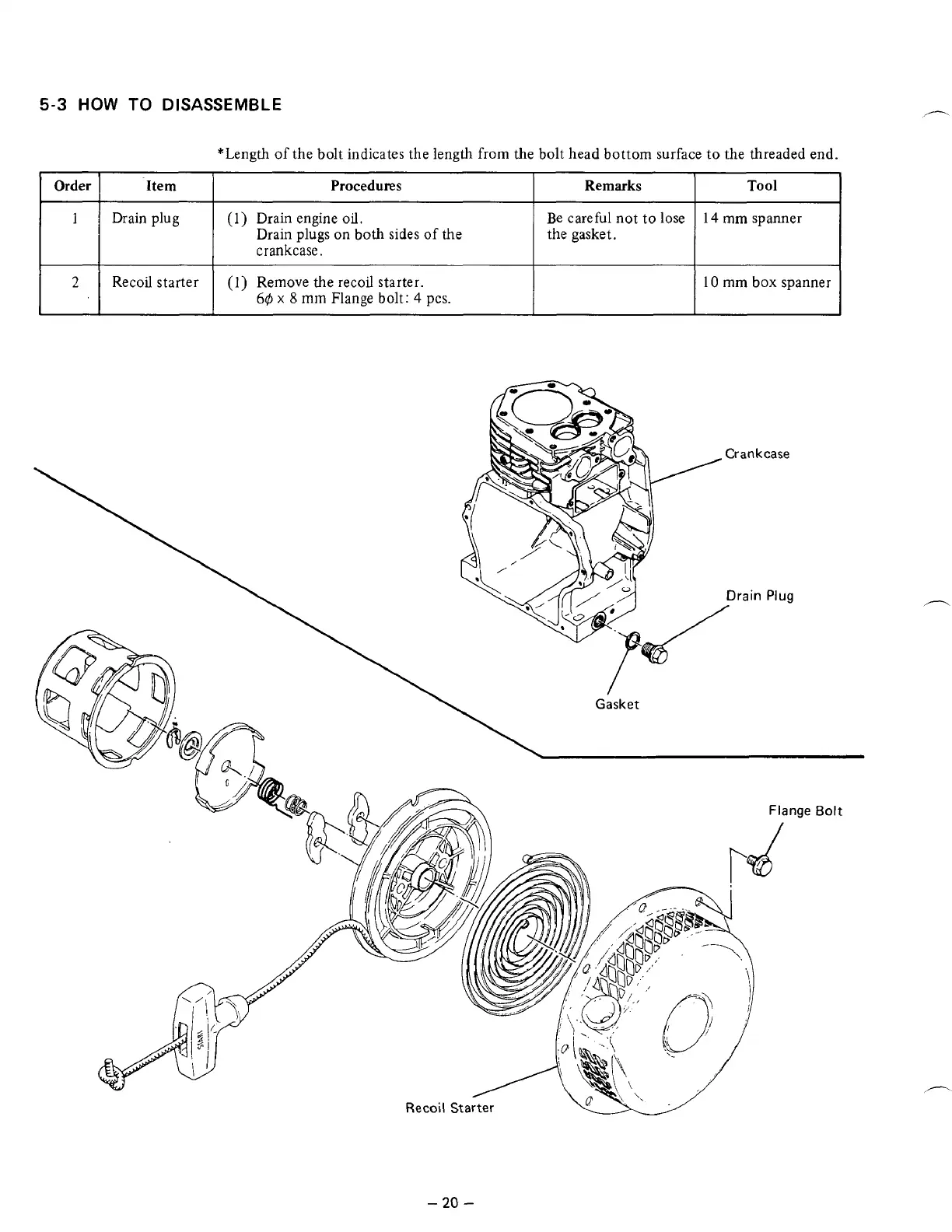

5-3
HOW
TO
DISASSEMBLE
*Length
of
the bolt indicates the length from the bolt head bottom surface
to
the threaded end.
I
Order
1
Item
I:
Drain plug
Recoil starter
Procedures
Tool
Remarks
(1)
Drain engine oil.
14
mm spanner Be careful not
to
lose
Drain plugs
on
both sides of
the
crankcase.
the gasket.
(1)
Remove the recoil starter.
10
mm box spanner
6@
x
8
mm
Flange
bolt:
4
pcs.
Gasket
-
20
-
