5-4-8

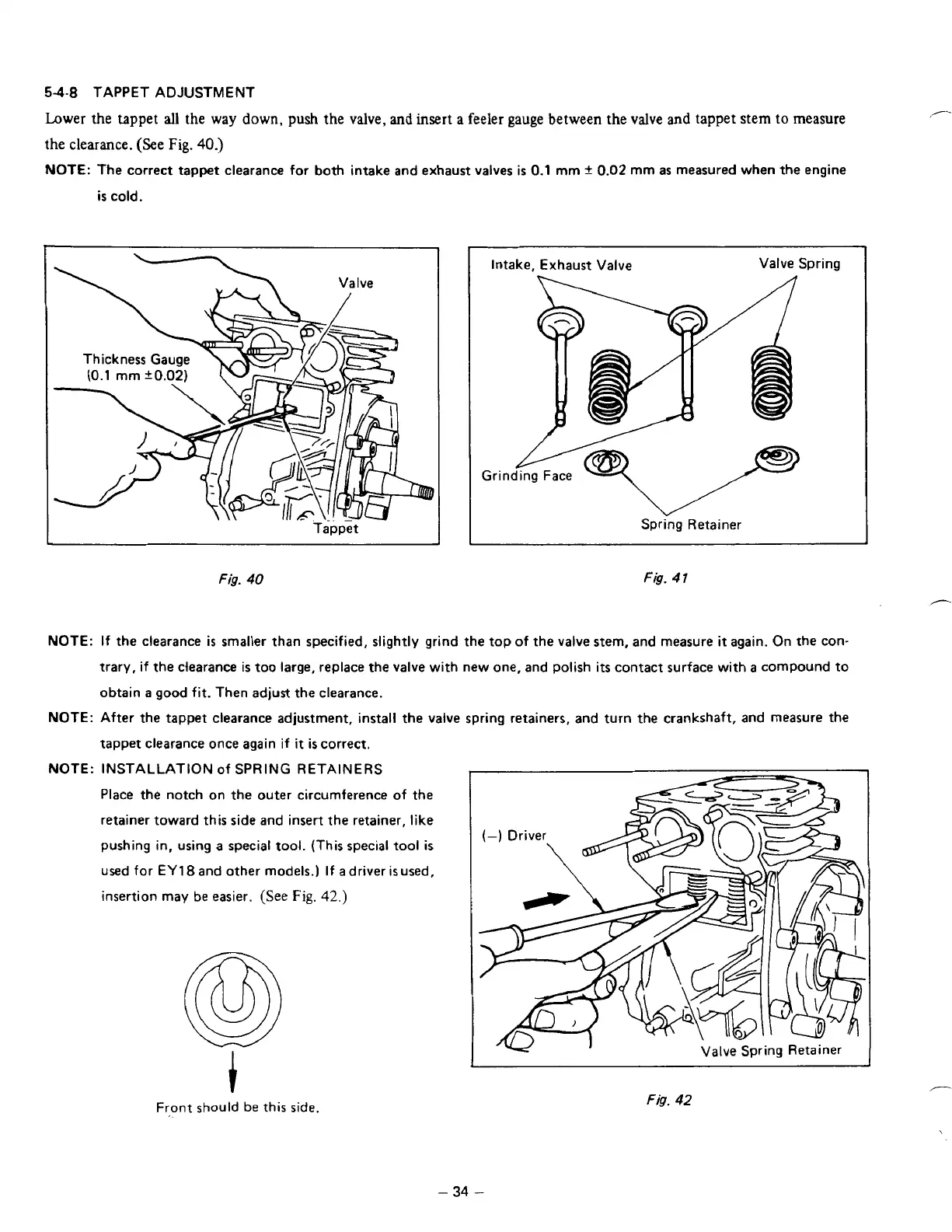

TAPPET ADJUSTMENT
Lower
the
tappet
all
the
way
down,
push
the
valve,
and
insert
a
feeler gauge between
the
valve
and
tappet stem to
measure
the
clearance.
(See
Fig.
40.)
NOTE: The correct tappet clearance for
both
intake and exhaust
valves
is
0.1
mm
*
0.02
mm
as
measured when
the
engine
is
cold.
i
..
-
I
Tappet
Intake, Exhaust Valve Valve Spring
Grinding Face
vT/
Spring Retainer
Fig.
40
Fig.
41
NOTE:
If
the clearance
is
smaller than specified, slightly grind the top
of
the
valve
stem, and measure
it
again. On the con-
trary, if the ciearance
is
too large, replace the
valve
with new one, and polish its contact surface with
a
compound to
obtain
a
good fit. Then adjust the clearance.
NOTE: After the tappet clearance adjustment, install the
valve
spring retainers, and turn the crankshaft, and measure the
tappet clearance once again if
it
is
correct.
NOTE: INSTALLATION of SPRING RETAINERS
Place the notch on the outer circumference of the
retainer toward this side and insert the retainer, like
pushing in, using
a
special tool. (This special tool
is
used for
EY18
and other models.)
If
adriver isused,
insertion may be easier.
(See
Fig.
42.)
I
Valve Spring Retainer
Front should be this side.
-
34
-
Fig.
42
