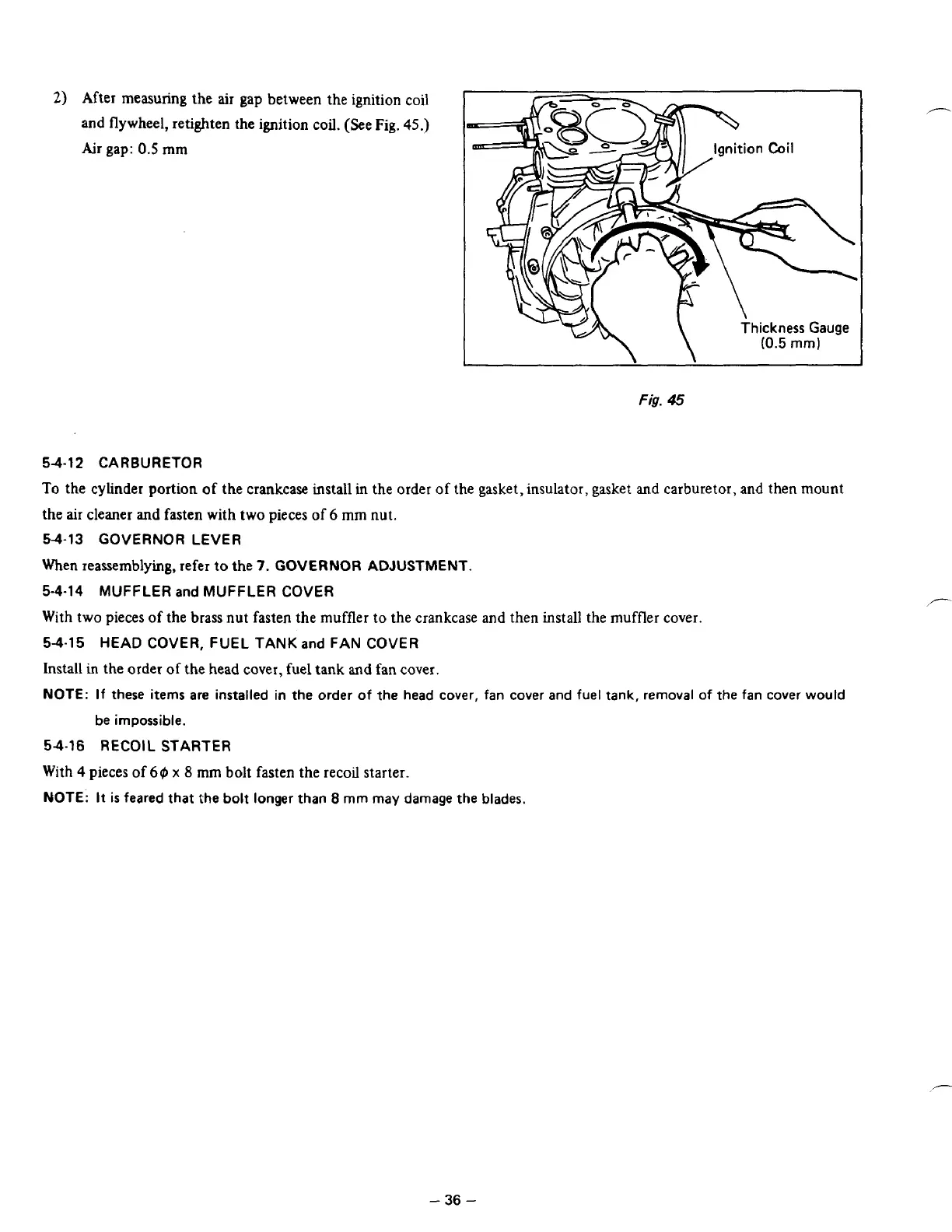

2)
After measuring the
air
gap between the ignition coil
and flywheel, retighten the ignition coil. (See Fig.
45.)
Air gap:
0.5
mm
1
\
\
I
Fig.
45
54-12
CARBURETOR
To
the cylinder portion of the crankcase. install
in
the order of the gasket, insulator, gasket and carburetor, and then mount
the
air
cleaner and fasten with two
pieces
of
6
mm nut.
54-13
GOVERNOR LEVER
When reassemblying, refer to the
7. GOVERNOR
ADJUSTMENT.
5-4-14
MUFFLER and MUFFLER COVER
With two pieces of the brass nut fasten the muffler to the crankcase and then install the muffler cover.
54-15
HEAD COVER, FUEL TANKand FAN COVER
Install
in
the order
of
the
head cover, fuel tank
and
fan
cover.
NOTE:
If
these items are installed in the order of the head cover, fan cover and fuel tank, removal of the fan cover
would
be impossible.
54-16
RECOIL
STARTER
With
4
pieces
of
69
x
8
mm bolt fasten the recoil starter.
NOTE:
It
is
feared
that
the
bolt
longer
than
8
mm
may
damage
the
blades.
/"
.
,"-
-
36
-
