5-3) DISASSEMBLY PROCEDURES
Please disassemble in the order of the procedure below.

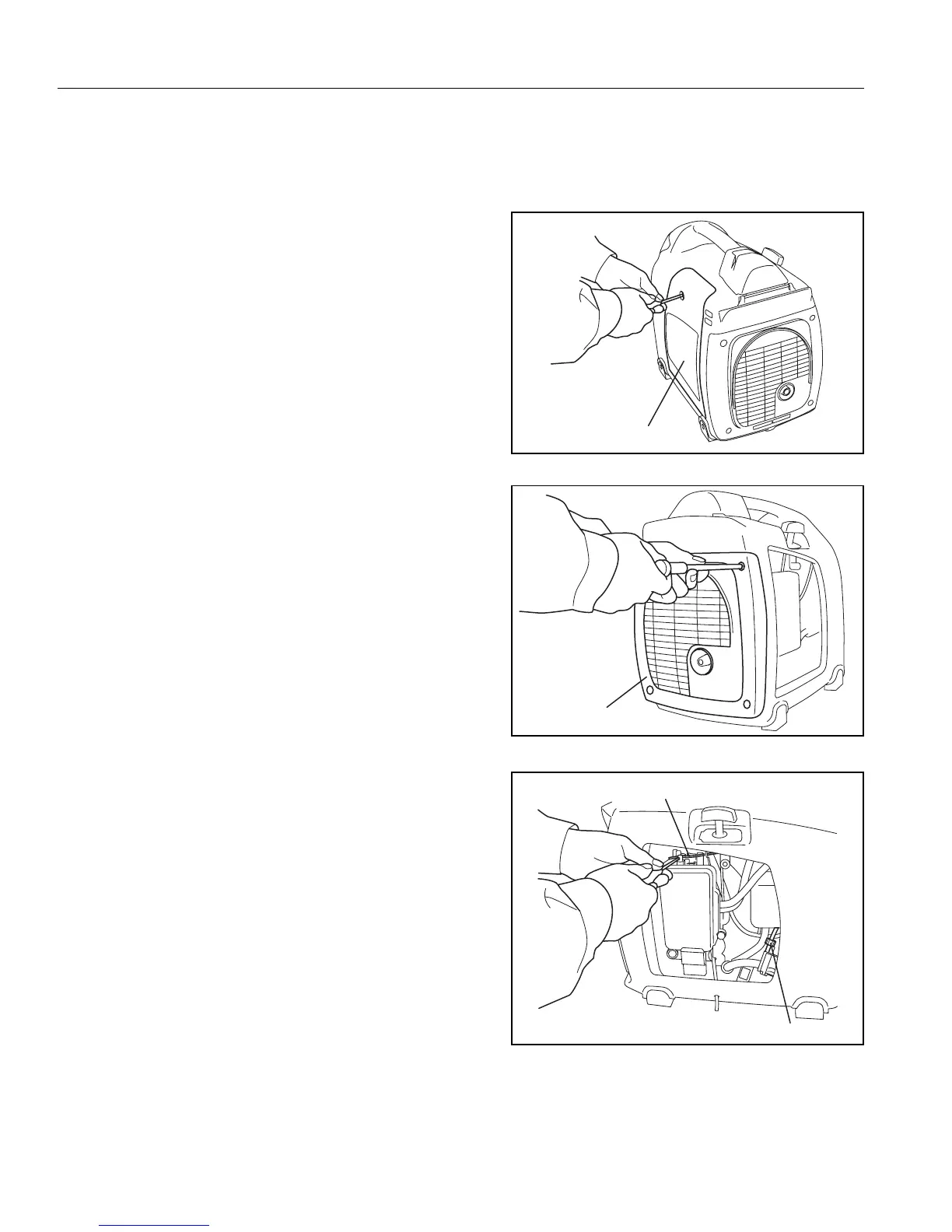

5-3-1 Remove the side panels (Left, Right)
Remove the side panels.
M6 x16.5mm Bolt :2 pcs.
Tools : Screw driver
Side Panel
5-3-2 Remove the rear cover
Remove the rear cover by unscrewing the four screws.
M6 x20mm
Screw
and Washer :4pcs.
Tools : Screw driver
Rear cover
5-3-3 Remove rolling wire, choke wire
Loosen the screw that holds the choke wire.
And remove it from the swivel.
Unwind the rolling wire by hand or pliers, and pull up.
Tools : Screw driver, pliers
Rolling wire
Choke wire
