Robin R1700i - CONTROLS AND INDICATORS; ENGINE SWITCH; PILOT LAMP and OVERLOAD LAMP; OIL SENSOR LAMP

– 6 –

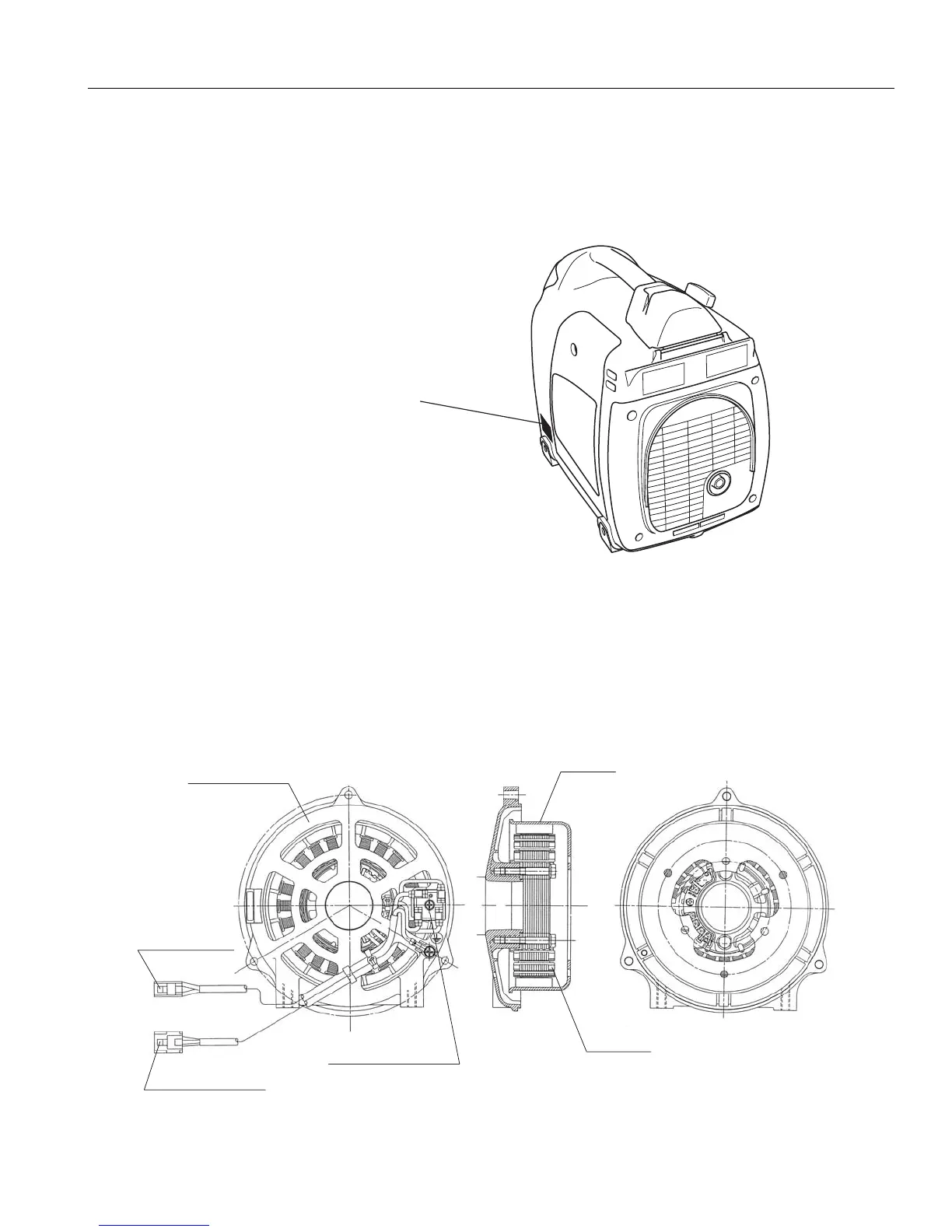

2-4) GENERATOR ASSEMBLY
REAR COVER
3P
CONNECTOR
4P CONNECTOR
ROTOR
STATOR
DIODE RECTIFIER
2-3) LOCATION OF SERIAL NUMBER (SER No.)
,,
PRODUCTION NUMBER (PROD No.)
The serial number and production number are located on right side cover of the generator operation panel.
NOTE : Please specify these numbers when inquiring about the generator or ordering spare parts.
Serial number
and Production number
(
Label
)
R1700i
