Robin R1700i Service Manual

– 27 –
Cylinder baffle
Ignition coil

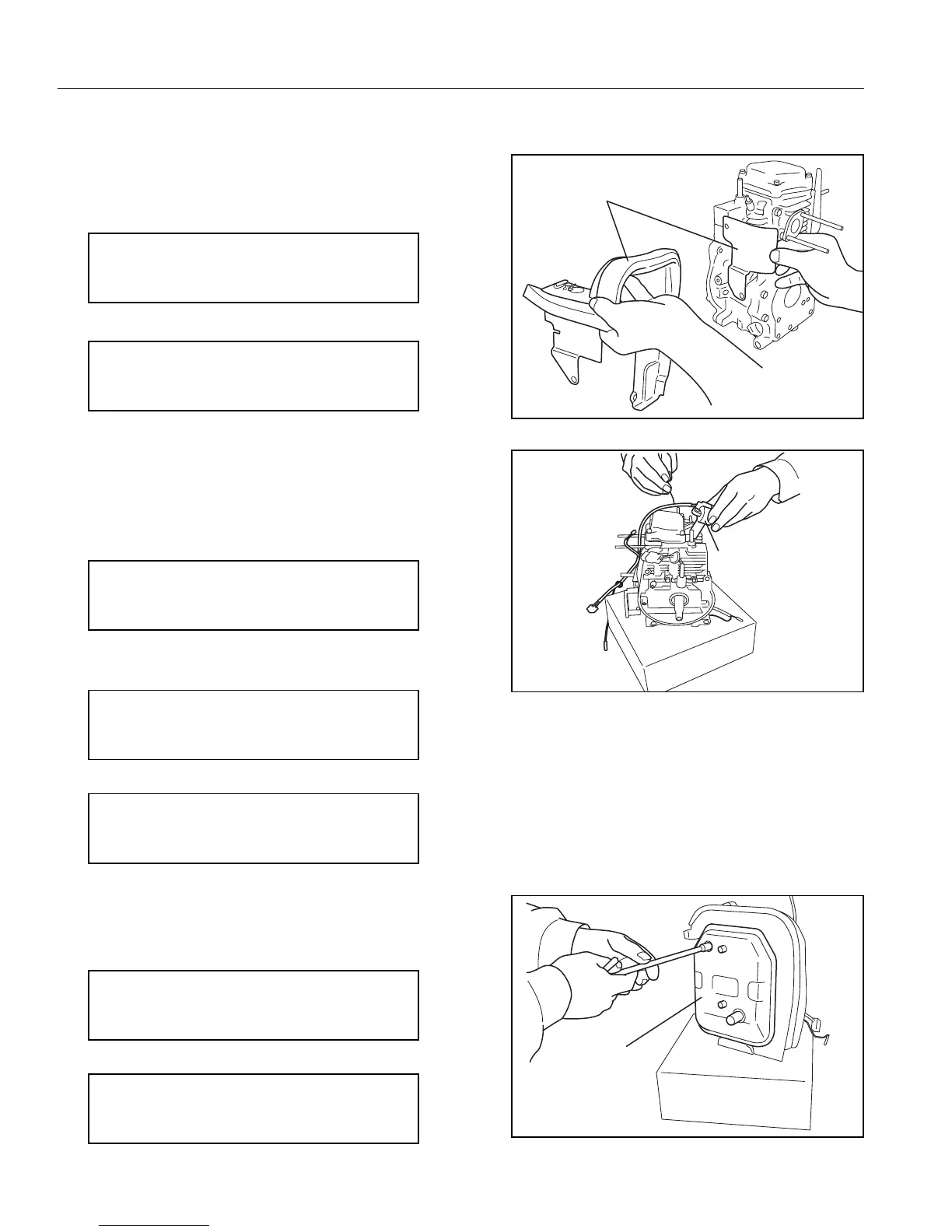

5-4) REASSEMBLY PROCEDURES
Tightening torque : 3.0 -
5.0 N
・
m
30
- 50 kgf
・
cm
(2.2
- 3.7 ft
・
lbs)
5-4-2 Ignition coil
Install the ignition coil into the ignition coil bracket and
attach it to the engine.
5-4-1 Cylinder baffle
Install the cylinder baffle. (Tighten together)
M8 x 16mm Flange bolt : 3pcs.
M6 x 12mm Flange bolt : 1pce.
Ignition coil tightening torque
Tightening torque : 7.0 - 9.0 N
・
m
70
- 90 kgf
・
cm
(5.2
- 6.6 ft
・
lbs)
Tightening torque : 7.0 - 9.0 N
・
m
70
- 90 kgf
・
cm
(5.2
- 6.6 ft
・
lbs)
Tightening torque : 7.0 - 9.0 N
・
m
70
- 90 kgf
・
cm
(5.2
- 6.6 ft
・
lbs)
Muffler
5-4-3 Muffler
Install the muffler.
M8 x 80mm Flange bolt : 1pce.
M6 Flange nut : 2pcs.
Tightening torque : 11.0 - 13.0 N
・
m
110
- 130 kgf
・
cm
(8.1
- 9.6 ft
・
lbs)
Tightening torque : 11.0 - 13.0 N
・
m
110
- 130 kgf
・
cm
(8.1
- 9.6 ft
・
lbs)
Tightening torque : 11.0
- 13.0 N
・
m
110
- 130 kgf
・
cm
(8.1
- 9.6 ft
・
lbs)
Ignition coil bracket tightening torque
M6 x 14mm Flange bolt : 1pce.
M8 Flange nut : 1pce.
