Robin R1700i Service Manual

– 28 –
Flywheel
Recoil starter

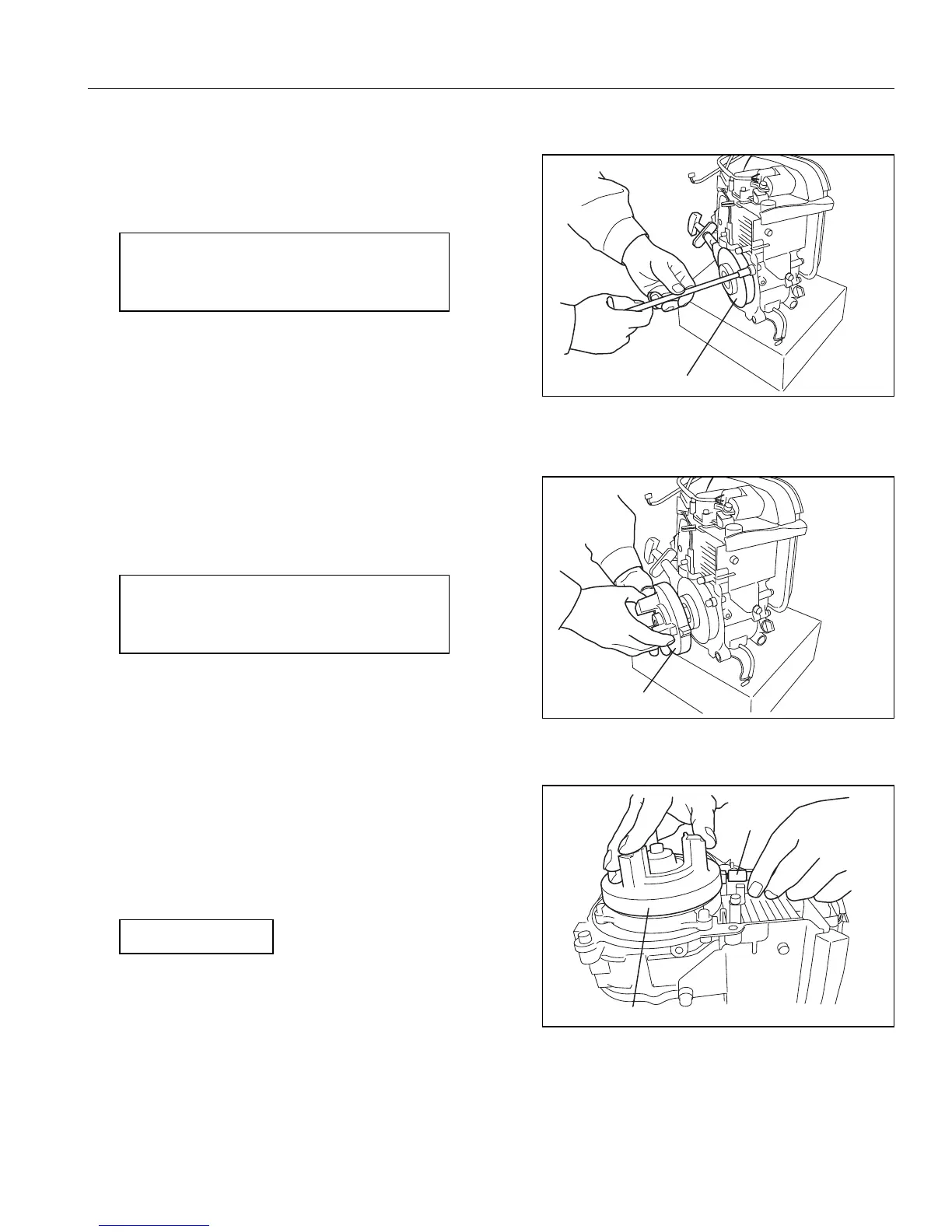

5-4-4 Recoil starter
Attach the recoil starter to the crankcase.
M6 x 18mm Flange bolt : 3pcs.
Tightening torque : 7.0 - 9.0 N
・
m
70
- 90 kgf
・
cm
(5.2
- 6.6 ft
・
lbs)
5-4-5 Flywheel
Install the flywheel.
M8 x 25 Bolt and washer : 1pce.
8.5D x 28D x 3.2T Washer : 1pce.
NOTE : Wipe off any oil from the tapered shaft and hole
before assembling .
Tightening torque : 19.0 - 21.0 N
・
m
190
- 210 kgf
・
cm
(14.0
- 15.5 ft
・
lbs)
Flywheel
Pulsar
coil
5-4-6 Air gap adjustment of flywheel and pulsar
coil
Adjust the air gap between flywheel and pulsar coil to
0.5mm with a feeler gauge. Attach the pulsar coil to the
engine.
Air gap : 0.5 mm
