Robin R1700i - 2 General Description; External View

– 2 –
2. GENERAL DESCRIPTION

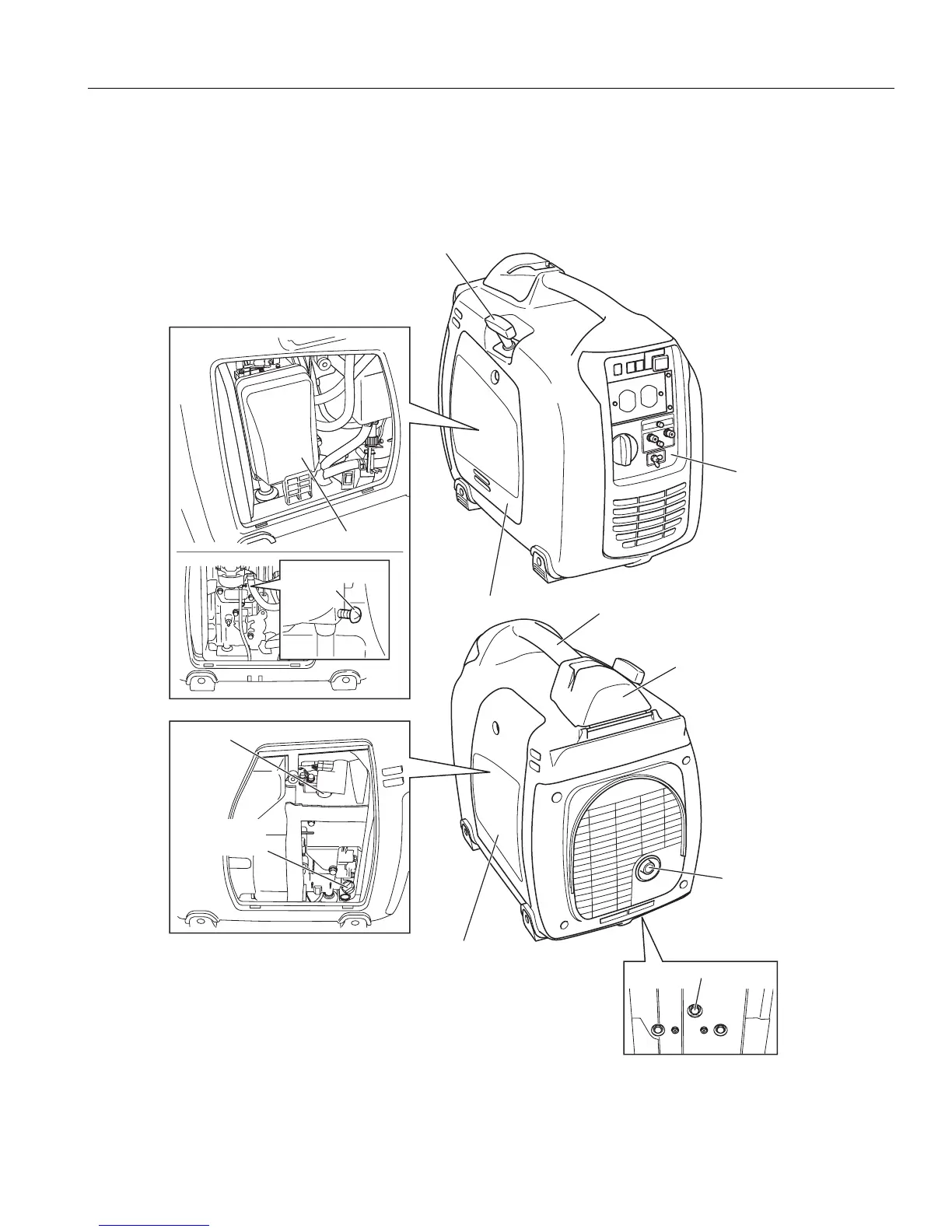

2-1) EXTERNAL VIEW
SPARK
PLUG
CAP
RECOIL STARTER (HANDLE)
TANK CAP COVER
AIR CLEANER
SIDE PANEL (R)
SIDE PANEL (L)
OIL DRAIN PLUG
CARRYING HANDLE
CONTROL
PANEL
EXHAUST
OUTLET
FUEL DRAIN
SCREW
OIL GAUGE
(OIL FILLER)
R1700i
