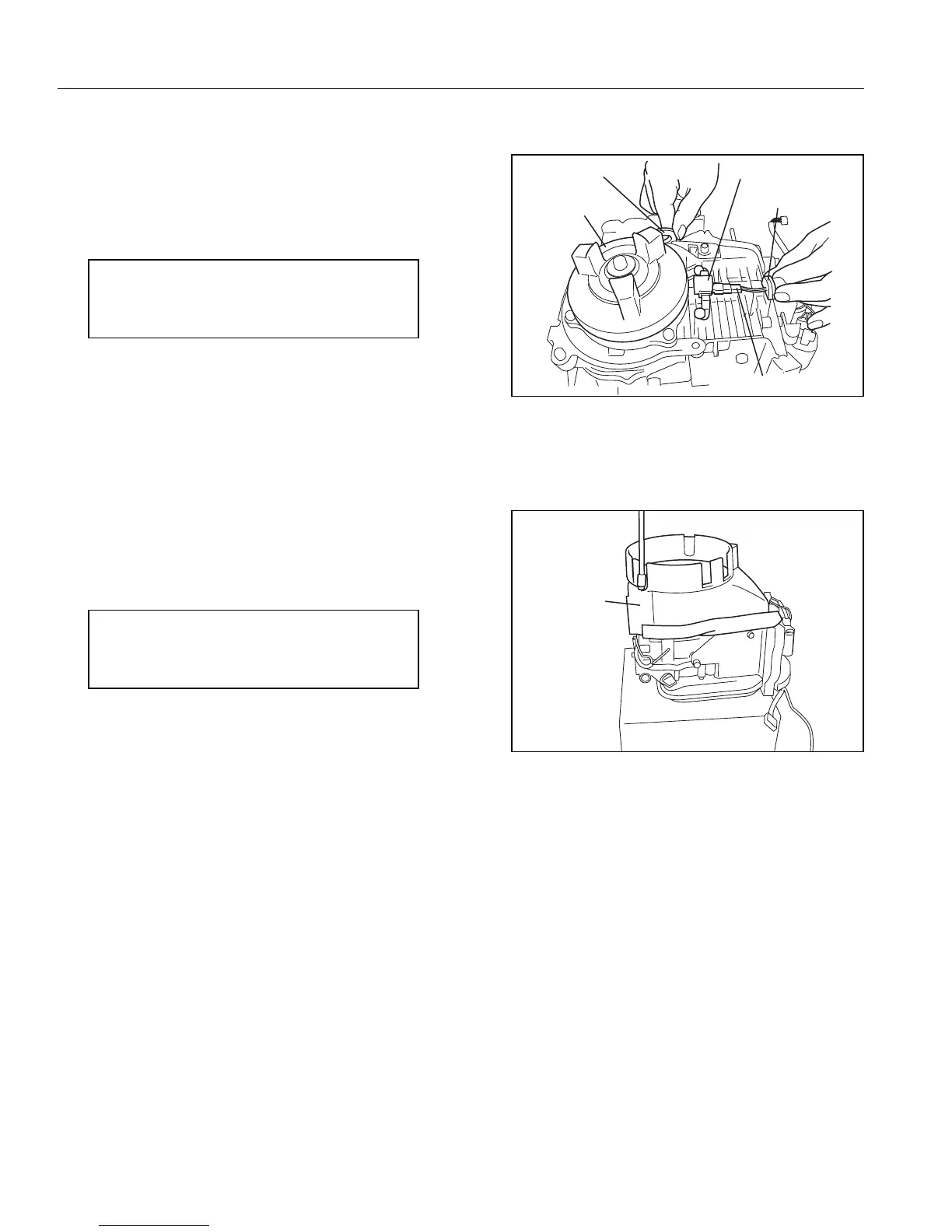

5-4-8 Blower housing
Install the blower housing
M8 x 55mm Flange bolt : 1pce.
M8 x 90mm Flange bolt : 3pcs.
Tightening torque : 18.0
-
20.0 N
・
m
180
-
200 kgf
・
cm
(13.3
-
14.8 ft
・
lbs)
NOTE: Insert the grommet (pulsar coil harness) and
recoil guide into the blower housing securely.
Tightening torque : 3.0
-
5.0 N
・
m
30
-
50 kgf
・
cm
(2.2
-
3.7 ft
・
lbs)
Place the pulsar coil wires along the groove of the
grommet and recoil guide to make it easier to assemble
the blower housing.
5-4-7 Pulsar coil and grommet
Tighten the bolt in place, making adjustments according
to 5-4-6.
M6 x 8mm Flange bolt : 2pcs.
Caution : Do not forget to put the 2 pieces of pipe knock.
